5365-01-146-8228
Magnetic Machine Thread Plug
5365011468228 011468228 4061T01P01 A4300
A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems. View more Magnetic Machine Thread Plug
November 2023
14
Product Information 5365-01-146-8228

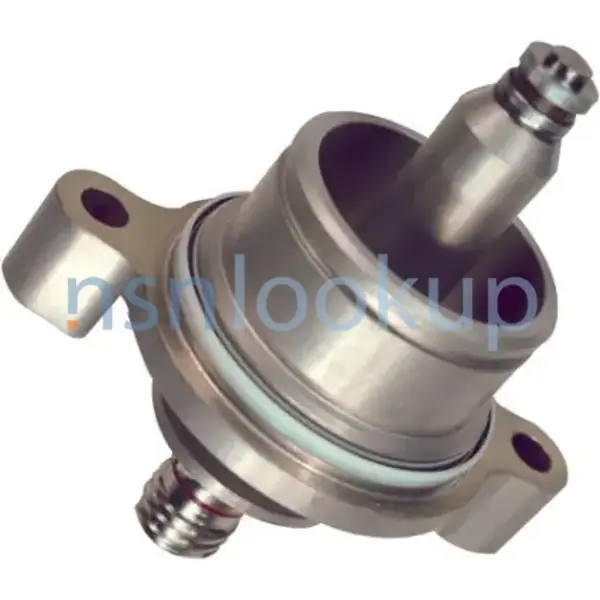

Chip Detector
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Eaton’s chip detector is a sensor that detects ferrous wear particles in the F/A-18 engine lube oil system.
Marketplace 5365-01-146-8228
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-146-8228 5+ Documents (More...)
Marketplace 5365-01-146-8228 Need Help?
Every Day 5365-01-146-8228 RQST Updated Every Day 5365-01-146-8228 RQST NE Related Documents 5365-01
Magnetic Machine Thread Plug 5365011468228 Lever Remote Cont 6615004532524004532524 for $1 a day
Upgrade your Account Upgrade 6615-00-453 -2524Lever Remote Cont6615004532524 004532524 A4300 for $1
Magnetic Machine Thread Plug 5365011468228 015444558 https//www.nsnlookup.com /fsg-25/fsc-2510/
Account Upgrade 5995-01-544-4558Electrical Special Purpose Cable Assembly5995015444558 015444558 195-A4300
your web browser . 2510-00-737-1824Bracket Assembly Bushing2510007371824 007371824 1277736 7371824 A4300
https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-146-8228 Magnetic Machine Thread Plug 5365011468228
A4300-4221-001 LEVER REMOTE CONT 4 EA NS Request Quotation Updated Every Day 6615-00-453-2521 RQST NE
A4300-4221-001 LEVER REMOTE CONT 4 EA NS Request https//www.nsnlookup.com /fsg-66/fsc-6615/uk 6615-99
Restrictions 5365-01-146-8228
5365-01-146-8228 is a Magnetic Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5365-01-146-8228
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-01-146-8228
- US Air Force (FXGG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Sep 2002
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 2003
Approved Sources 5365-01-146-8228
- Part Number
- Manufacturer
- Status
- 4061T01P01
- Manufacturer
- 99207 - General Electric Company (Active)
- Source Control
- Source Control
- A4300
- 97484 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-01-146-8228
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Connection Style [AHNC]
- Plain
- Material [MATT]
- Steel Corrosion Resisting Body
- Nominal Thread Size [CQJX]
- 0.562 Inches External
- Magnet Lift Rating [CQSD]
- 2.0 Ounces
- Thread Class [AAJD]
- 3A External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 0.520 Inches Minimum External And 0.560 Inches Maximum External
- Thread Series Designator [THSD]
- Unjf External
- Thread Quantity Per Inch [CMLP]
- 18 External
DLA Procurement Analysis 5365-01-146-8228
Management Data 5365-01-146-8228
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material ID:
- TN
- Jet Engines (F404)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 5365-01-146-8228
Freight Information 5365-01-146-8228
5365-01-146-8228 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 096180. A Sub NMFC of X. It has a NMFC Description of PLUGS I/S W/MAGNETIZED INSERTS. 5365-01-146-8228 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5365-01-146-8228 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 50370 which rates the freight between FCL and LCL. 5365-01-146-8228 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-146-8228 is classified as a Magnetic Material when transported by water. 5365-01-146-8228 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-146-8228
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5365-01-146-8228 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
