5365-01-118-1124
Shim
5365011181124 011181124 3846041-1 10173070
A thin flat metal or plastic item of various peripheral shapes having a solid or laminated cross-section. It is designed to maintain a predetermined distance between two surfaces. For round items without a hole and having a solid rectangular cross-section use DISK, SOLID, PLAIN. Items with either (1) a solid (not laminated) cross-section, or (2) a non-separable laminated cross-section with one hole centrally located, must have a thickness less than 0.006 inch (0.152 mm) for items less than 1/4 inch (6.35 mm) outside diameter or shortest distance across peripheral flats, and less than 0.016 inch (0.406 mm) for items 1/4 inch (6.35 mm) or more outside diameter, or shortest distance across peripheral flats. For items with thickness greater than those indicated above, see SPACER, PLATE; WASHER, FLAT and SPACER, RING. When thickness and/or outside diameter or shortest distance across peripheral flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance. See also SHIM STOCK, LAMINATED; SHIM STOCK ASSORTMENT, GASKET; and BEARING, WASHER, THRUST. View more Shim
November 2023
13
Marketplace 5365-01-118-1124
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-118-1124 1+ Documents (More...)
/fsg-53/fsc-5365/us
Quotation Updated Every Day 5365-01-118-1124 RQST NE Updated Every Day 5365-01-118-1124 RQST Updated
Every Day 5365-01-118-1124 RQST NE Related Documents 5365-01-118-1124 1+ Documents ( More... ) https/
Restrictions 5365-01-118-1124
5365-01-118-1124 is a Shim that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5365-01-118-1124
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-01-118-1124
- US Air Force (FXGG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 May 2011
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5365-01-118-1124
- Part Number
- Manufacturer
- Status
- 3846041-1
- Manufacturer
- 99193 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 3846041-1
- 2W710 - Shim It Manufacturing Corp (Active)
- Secondary Buy
- Secondary Buy
- 3846041-1
- 31633 - Alinabal Holdings Corporation (Active)
- Secondary Buy
- Secondary Buy
- 10173070
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5365-01-118-1124
- Characteristic
- Specifications
- FIIG
- Specifications
- A07000
- Aperture Diameter [ABVL]
- 2.050 Inches Minimum And 2.070 Inches Maximum
- Bolt Circle Diameter [ABKG]
- 2.750 Inches Nominal
- Bolt Hole Quantity [AECS]
- 6
- Construction [CQCF]
- One-Piece
- Features Provided [CBBL]
- Nonseparable
- Hole Diameter [AAUB]
- 0.230 Inches Minimum And 0.240 Inches Maximum
- Material Document And Classification [MDCL]
- Mil-S-5059,Cond A Mil Spec Single Material Response
- Material [MATT]
- Steel Comp 301 Or Steel Comp 302 Or Steel Comp 304 Or Steel Comp 316
- Outside Diameter [ABKV]
- 3.180 Inches Minimum And 3.200 Inches Maximum
- Slot Depth [AAZT]
- 0.420 Inches Minimum And 0.450 Inches Maximum
- Slot Quantity [ATPP]
- 5
- Slot Width [ABGC]
- 0.428 Inches Minimum And 0.448 Inches Maximum
- Overall Thickness [ADUM]
- 0.010 Inches Nominal
- Style Designator [STYL]

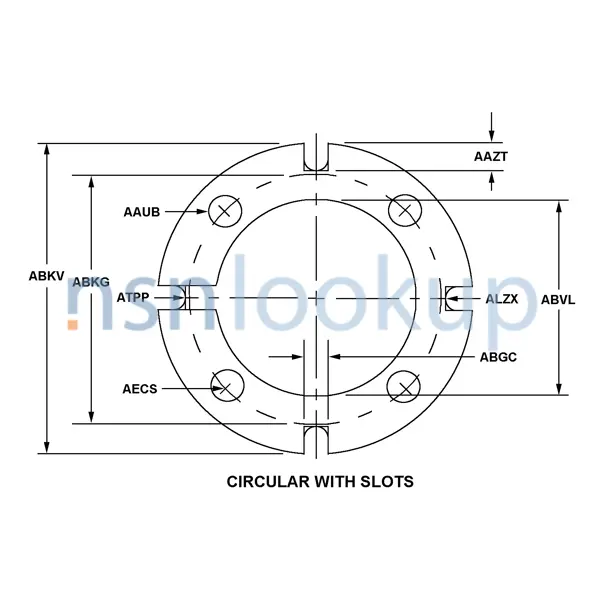

- Circular W/Slots W/Bolt Holes
