5365-01-088-3142
Nonmetallic Bushing
5365010883142 010883142 A9314-1
An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC. View more Nonmetallic Bushing
November 2023
9
Marketplace 5365-01-088-3142
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-088-3142 1+ Documents (More...)
Quotation Updated Every Day 5365-01-088-3142 RQST NE Updated Every Day 5365-01-088-3142 RQST Updated
Every Day 5365-01-088-3142 RQST NE Related Documents 5365-01-088-3142 1+ Documents ( More... ) https
Restrictions 5365-01-088-3142
5365-01-088-3142 is a Nonmetallic Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-088-3142
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2015
- Supplementary Collaborators:
- KE
Approved Sources 5365-01-088-3142
- Part Number
- Manufacturer
- Status
- A9314-1
- Manufacturer
- 72914 - Grimes Aerospace Company (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-01-088-3142
- Characteristic
- Specifications
- FIIG
- Specifications
- A535J0
- Bottom Tapered Portion Height [BWSL]
- 0.250 Inches Nominal
- Design Type [APGF]
- Single Centrally Located Hole
- Material Document And Classification [MDCL]
- Sae J200, Grade 2Ca615a25b44c12f18z Assn Std Single Material Response
- Material [MATT]
- Rubber Ethylene-Propylene-Diene Class Epdm
- Nonmetallic Hardness Rating [AASF]
- 60.0 Nominal Durometer
- Longer Taper Smallest Diameter [BWRR]
- 0.438 Inches Nominal
- Overall Length [ABHP]
- 0.340 Inches Nominal
- Special Features [FEAT]
- Id Tapered 0.130 In. Dia At Top To 0.100 In. Dia At Bottom

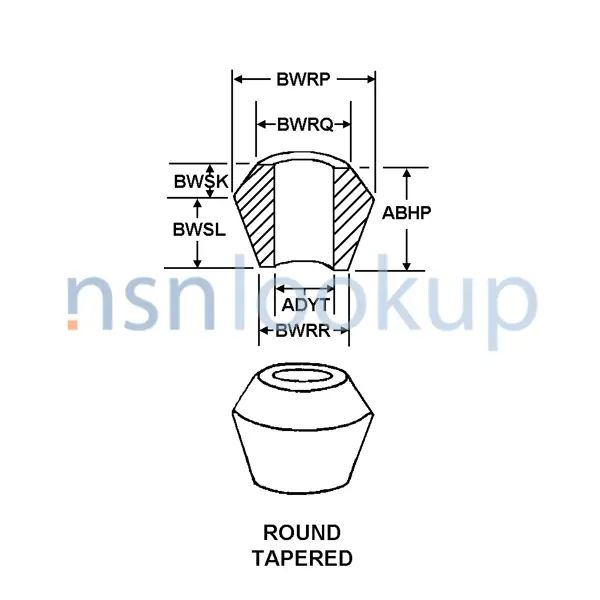

- Style Designator [STYL]
- Round Tapered
- Tapered Portion Height [BWSK]
- 0.090 Inches Nominal
Weapon Systems (WSDC) 5365-01-088-3142
DLA Procurement Analysis 5365-01-088-3142
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5365-01-088-3142
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5365-01-088-3142
Freight Information 5365-01-088-3142
5365-01-088-3142 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 000000. A Sub NMFC of X. It has a NMFC Description of NO NMFC FREIGHT DESCRIPTION. 5365-01-088-3142 has not been rated for freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 00000 which rates the freight between FCL and LCL. 5365-01-088-3142 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-088-3142 is not classified as a special type of cargo when transported by water. 5365-01-088-3142 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5365-01-088-3142 1 Records
Contracting Technical Data File (CTDF) 5365-01-088-3142 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
