5365-01-085-7330
Nonmetallic Bushing
5365010857330 010857330 68B6902-1
An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC. View more Nonmetallic Bushing
August 2023
7
Marketplace 5365-01-085-7330
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-085-7330 2+ Documents (More...)
United States (US) 4. 5365-01-085-7330 Marketplace Restrictions Approved Sources Datasheet Management
BUSHING,NONMETALLIC 26 EA NS Request Quotation Updated Every Day 5365-01-085-7330 RQST NE Updated
Nonmetallic Bushing 5365010857330 010857330 $1 a day Upgrade your Account Upgrade 5365-01-085-7330Nonmetallic
Bushing5365010857330 010857330 68B6902-1 Request a Quotation from participating marketplace vendors
Restrictions 5365-01-085-7330
5365-01-085-7330 is a Nonmetallic Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5365-01-085-7330
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-01-085-7330
- US Air Force (FGGG)
- Effective Date:
- 1 Feb 2005
- Former MOE Rule:
- FGCX
Approved Sources 5365-01-085-7330
- Part Number
- Manufacturer
- Status
- 68B6902-1
- Manufacturer
- 98752 - Warner Robins Air Logistics Center (Active)
- Primary Buy
- Primary Buy
- 68B6902-1
- 98750 - San Antonio Air Logistics Center (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5365-01-085-7330
- Characteristic
- Specifications
- FIIG
- Specifications
- A535J0
- Body Diameter [ABPM]
- 0.994 Inches Minimum And 0.998 Inches Maximum
- Center Hole Diameter [ADYT]
- 0.755 Inches Minimum And 0.775 Inches Maximum
- Contact Surface Thickness [BWSJ]
- 0.231 Inches Nominal
- Design Type [APGF]
- Single Centrally Located Hole
- Material Document And Classification [MDCL]
- Mil-R-3065 Mil Spec Single Material Response
- Material [MATT]
- Rubber Polyisoprene Natural Class Nr Or Rubber Isobutylene-Isoprene Class Iir Or Rubber Butadiene-Styrene Class Sbr Or Rubber Polysulfide Class T Or Rubber Butadiene-Acrylonitrile Class Nbr Or Rubber Chloroprene Class Cr Or Rubber Silicone Class Q Or Rubber Polyacrylate Class Acm
- Overall Length [ABHP]
- 3.580 Inches Minimum And 3.600 Inches Maximum

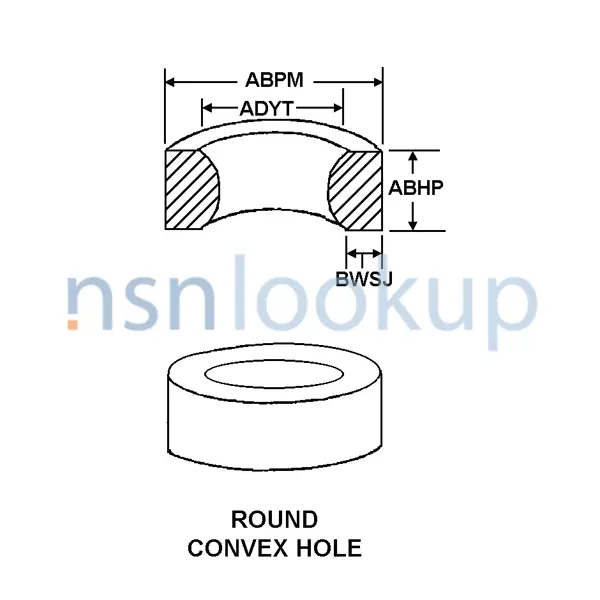

- Style Designator [STYL]
- Round Convex Hole
DLA Procurement Analysis 5365-01-085-7330
Management Data 5365-01-085-7330
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- QS
- AIRCRAFT GROUND SERVICES EQUIPMENT
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5365-01-085-7330
Freight Information 5365-01-085-7330
5365-01-085-7330 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-01-085-7330 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-01-085-7330 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-085-7330 is not classified as a special type of cargo when transported by water. 5365-01-085-7330 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-085-7330
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 7.5lb to 10lb, all dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Contracting Technical Data File (CTDF) 5365-01-085-7330 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
