5365-01-015-0602
Machine Thread Plug
5365010150602 010150602 8003-2
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
August 2023
16
Marketplace 5365-01-015-0602
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-015-0602 1+ Documents (More...)
(Identification) 1/2 NSN 5365-01-015-0602 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5365-01-015-0602 RQST Updated Every Day 5365-01-015-0602 RQST NE Related
Restrictions 5365-01-015-0602
5365-01-015-0602 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-015-0602
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXCX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHXHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Belgium (ZB01)
- Effective Date:
- 1 Nov 2006
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Nov 2009
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5365-01-015-0602
- Part Number
- Manufacturer
- Status
- 8003-2
- Manufacturer
- 41387 - Siemens Industry, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-01-015-0602
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Body Core Diameter [AJFC]
- 0.219 Inches Nominal
- Bleeder Hole Center To Threaded End Distance [AJFG]
- 0.312 Inches Nominal
- Bleeder Hole Diameter [AJFH]
- 0.094 Inches Nominal
- Body Type [AJGE]
- Cored
- Connection Style [AHNC]
- Plain
- Core Depth [AJFD]
- 0.312 Inches Nominal
- Head Core Diameter [AJFJ]
- 0.094 Inches Nominal
- Head Height [AASU]
- 0.250 Inches Nominal
- Head Type [AJGD]
- Cored
- Material [MATT]
- Steel Corrosion Resisting Overall
- Nominal Thread Size [CQJX]
- 0.500 Inches External
- Overall Length [ABHP]
- 0.562 Inches Nominal

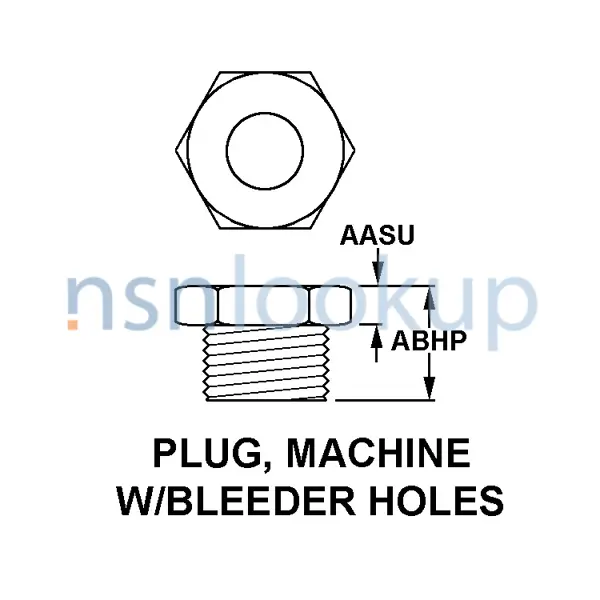

- Style Designator [STYL]
- Plug, Machine W/Bleeder Holes
- Thread Class [AAJD]
- 2A External
- Thread Length [AASA]
- 0.281 Inches Nominal External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Quantity Per Inch [CMLP]
- 20 External
- Thread Series Designator [THSD]
- Unf External
Weapon Systems (WSDC) 5365-01-015-0602
DLA Procurement Analysis 5365-01-015-0602
Management Data 5365-01-015-0602
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5365-01-015-0602
Freight Information 5365-01-015-0602
5365-01-015-0602 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 5365-01-015-0602 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 5365-01-015-0602 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 5365-01-015-0602 is not classified as a special type of cargo when transported by water. 5365-01-015-0602 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-015-0602
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5365-01-015-0602 1 Records
Contracting Technical Data File (CTDF) 5365-01-015-0602 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
