5365-01-009-5170

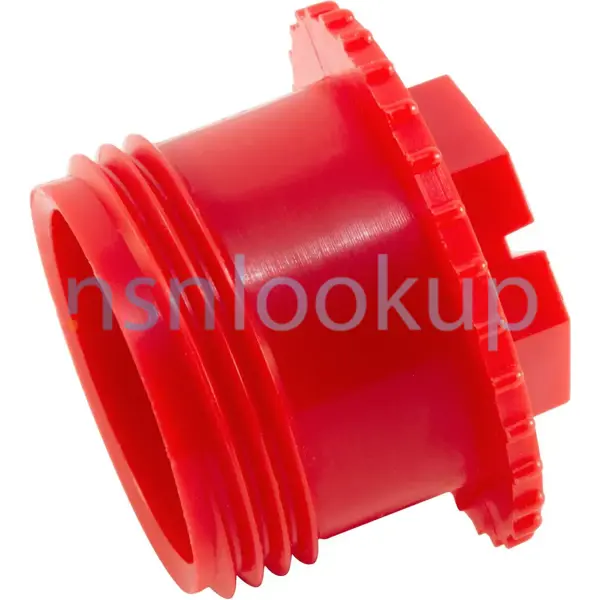

Machine Thread Plug
5365010095170 010095170 RP-10
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
September 2025
13
Marketplace 5365-01-009-5170
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5365-01-009-5170 5+ Documents (More...)
RP-10 PLUG,MACHINE THREAD 4300 HD NS Request Quotation Updated Every Day 5365-01-009-5170 RQST NE Updated
Every Day 5365-01-009-5170 RQST Updated Every Day 5365-01-009-5170 RQST NE Related Documents 5365-01
Request a Quotation from participating marketplace vendors Request Global Test Supply RP-10 SnakeEye
Request a Quotation from participating marketplace vendors Request Global Test Supply RP-10 SnakeEye
RP-10 Video I/O Cable for SnakeEye Units STK NE $5.00 Distributor Buy Now Updated Every Day 4730-14
RP-10 Request a Quotation from participating marketplace vendors Request Global Test Supply RP-10 SnakeEye
a Quotation from participating marketplace vendors Request Global Test Supply RP-10 SnakeEye RP-10 Video
Machine Thread Plug 5365010095170 010095170 RP-10 PLUG,MACHINE THREAD 993 HD NS Request Quotation
Restrictions 5365-01-009-5170
5365-01-009-5170 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-009-5170
- US Air Force (FGGG)
- Effective Date:
- 1 Oct 2007
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Germany (ZG01)
- Effective Date:
- 1 Nov 2011
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 5365-01-009-5170
- Part Number
- Manufacturer
- Status
- RP-10
- Manufacturer
- 99017 - Caplugs Llc (Active)
- Primary Buy
- Primary Buy
- RP-10
- 95760 - Protective Closures Co Inc (Replaced)
- Original Design
- Original Design
Datasheet 5365-01-009-5170
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Body Core Diameter [AJFC]
- 0.433 Inches Nominal
- Connection Style [AHNC]
- Plain
- Flange Diameter [ABKK]
- 0.810 Inches Nominal
- Flange Thickness [ABKU]
- 0.060 Inches Minimum And 0.090 Inches Maximum
- Head Height [AASU]
- 0.240 Inches Minimum And 0.270 Inches Maximum
- Material [MATT]
- Plastic Polypropylene Overall
- Nominal Thread Size [CQJX]
- 0.625 Inches External
- Overall Length [ABHP]
- 0.590 Inches Minimum And 0.620 Inches Maximum
- Style Designator [STYL]
- Plug, Machine
- Thread Length [AASA]
- 0.250 Inches Nominal External
- Thread Series Designator [THSD]
- Unf External
DLA Procurement Analysis 5365-01-009-5170
Management Data 5365-01-009-5170
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5365-01-009-5170
Freight Information 5365-01-009-5170
5365-01-009-5170 has freight characteristics managed by the Defense Intelligence Agency (DIA).It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5365-01-009-5170 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5365-01-009-5170 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-009-5170 is not classified as a special type of cargo when transported by water. 5365-01-009-5170 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-009-5170
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5365-01-009-5170 2 Records
Contracting Technical Data File (CTDF) 5365-01-009-5170 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
