5365-00-978-1584
Machine Thread Plug
5365009781584 009781584 693003
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
May 2023
6
Marketplace 5365-00-978-1584
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-978-1584 2+ Documents (More...)
United States (US) 4. 5365-00-978-1584 Marketplace Restrictions Approved Sources Datasheet Management
Day 5365-00-978-1584 RQST Updated Every Day 5365-00-978-1584 RQST NE Related Documents 5365-00-978-1584
www.nsnlookup.com /fsg-58/fsc-5820/uk 5820-99-795-5295 https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-00-978-1584
Machine Thread Plug 5365009781584 009781584 1584 RQST NE Related Documents 5365-00-978-1584 https
Restrictions 5365-00-978-1584
5365-00-978-1584 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5365-00-978-1584
- US Air Force (FXGG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- FXCX
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1994
Approved Sources 5365-00-978-1584
- Part Number
- Manufacturer
- Status
- 693003
- Manufacturer
- 99167 - Hamilton Sundstrand Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-00-978-1584
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Bleeder Hole Center To Threaded End Distance [AJFG]
- 0.899 Inches Minimum And 0.959 Inches Maximum
- Bleeder Hole Diameter [AJFH]
- 0.043 Inches Minimum And 0.053 Inches Maximum
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 0.312 Inches External
- Surface Treatment [SFTT]
- Passivate Overall
- Material Document And Classification [MDCL]
- Aisi 302 Assn Std 1St Material Response Overall Or Aisi 303 Assn Std 2Nd Material Response Overall Or Aisi 304 Assn Std 3Rd Material Response Overall
- Overall Length [ABHP]
- 0.959 Inches Minimum And 1.009 Inches Maximum
- Washer Face Diameter [AJFE]
- 0.552 Inches Minimum And 0.564 Inches Maximum
- Washer Face Thickness [AJFF]
- 0.109 Inches Minimum And 0.119 Inches Maximum

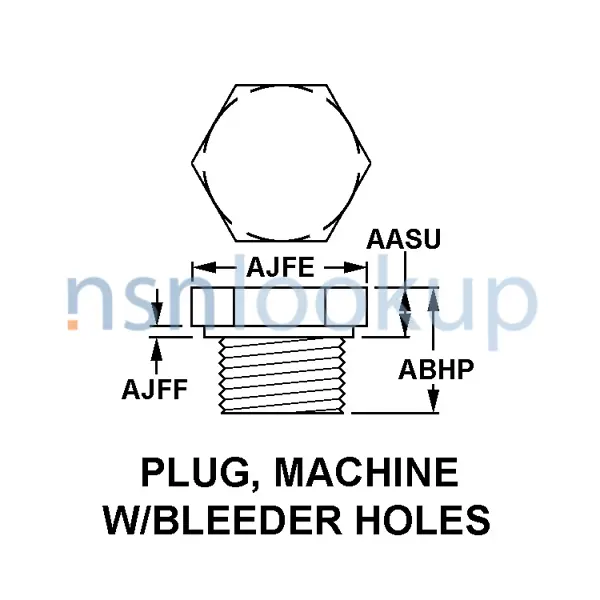

- Style Designator [STYL]
- Plug, Machine W/Bleeder Holes
- Thread Class [AAJD]
- 2A External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Series Designator [THSD]
- Unf External
Weapon Systems (WSDC) 5365-00-978-1584
DLA Procurement Analysis 5365-00-978-1584
Management Data 5365-00-978-1584
Similar Supply Items to 5365-00-978-1584
Freight Information 5365-00-978-1584
5365-00-978-1584 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093750. A Sub NMFC of Z. It has a NMFC Description of BUNGS/PLUGS NOI IN PKGS. 5365-00-978-1584 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49080 which rates the freight between FCL and LCL. 5365-00-978-1584 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5365-00-978-1584 is not classified as a special type of cargo when transported by water. 5365-00-978-1584 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5365-00-978-1584 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
