Machine Thread Plug
5365007762109 007762109 7762109
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
January 2023
9
Marketplace 5365-00-776-2109
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-776-2109 1+ Documents (More...)
5365-00-776-2109 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-00-776-2109
RQST NE Updated Every Day 5365-00-776-2109 RQST Updated Every Day 5365-00-776-2109 RQST NE Related Documents
Restrictions 5365-00-776-2109
5365-00-776-2109 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-00-776-2109
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5365-00-776-2109
- Part Number
- Manufacturer
- Status
- 7762109
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-00-776-2109
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Bleeder Hole Center To Threaded End Distance [AJFG]
- 0.500 Inches Nominal
- Bleeder Hole Diameter [AJFH]
- 0.531 Inches Nominal
- Connection Style [AHNC]
- Plain
- Head Height [AASU]
- 0.375 Inches Nominal
- Material [MATT]
- Steel Comp 1035 Overall Or Steel Comp 1040 Overall
- Nominal Thread Size [CQJX]
- 2.500 Inches External
- Surface Treatment [SFTT]
- Cadmium Or Zinc Overall
- Material Document And Classification [MDCL]
- Astm A108 Assn Std All Material Responses Overall
- Overall Length [ABHP]
- 1.938 Inches Nominal
- Special Features [FEAT]
- Counterbore Drive End 1.188 In. Dia 0.812 In. Deep

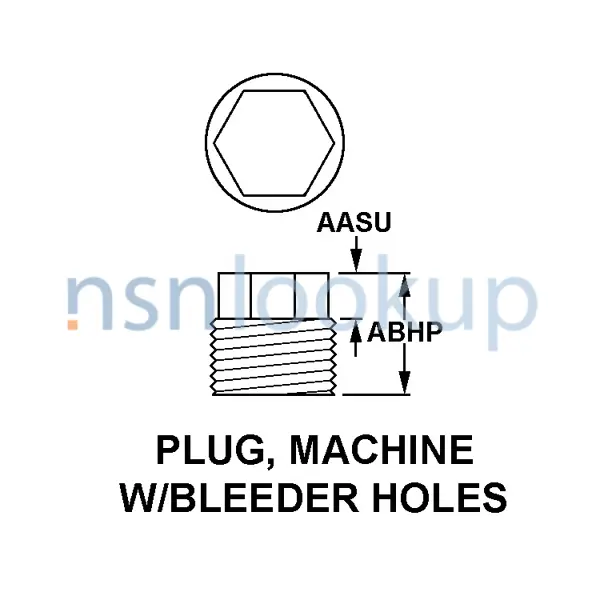

- Style Designator [STYL]
- Plug, Machine W/Bleeder Holes
- Surface Treatment Document And Classification [STDC]
- Qq-P-416 Ty 1 Cl 1 Fed Spec 1St Treatment Response Overall Or Qq-Z-325 Ty 2 Cl 2 Fed Spec 2Nd Treatment Response Overall
- Thread Class [AAJD]
- 3A External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 0.938 Inches Nominal External
- Thread Series Designator [THSD]
- Un External
- Thread Quantity Per Inch [CMLP]
- 16 External
