5365-00-764-9178
Machine Thread Plug
5365007649178 007649178 7649178
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
May 2023
17
Marketplace 5365-00-764-9178
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-764-9178 1+ Documents (More...)
(Identification) 1/2 NSN 5365-00-764-9178 (Identification) 2/2 - - 1.
United States (US) 4. 5365-00-764-9178 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5365-00-764-9178
5365-00-764-9178 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-00-764-9178
- US Army (A919)
- Effective Date:
- 1 May 2005
- Supplementary Receivers:
- BF
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- United States of America (ZZ)
Approved Sources 5365-00-764-9178
- Part Number
- Manufacturer
- Status
- 7649178
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-00-764-9178
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Bleeder Hole Center To Threaded End Distance [AJFG]
- 1.062 Inches Nominal
- Bleeder Hole Diameter [AJFH]
- 0.120 Inches Nominal
- Connection Style [AHNC]
- Plain
- Head Height [AASU]
- 0.550 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-B-626 Fed Spec Single Material Response Overall
- Material [MATT]
- Copper Alloy 360 Overall
- Nominal Thread Size [CQJX]
- 0.138 Inches External
- Overall Length [ABHP]
- 1.062 Inches Nominal

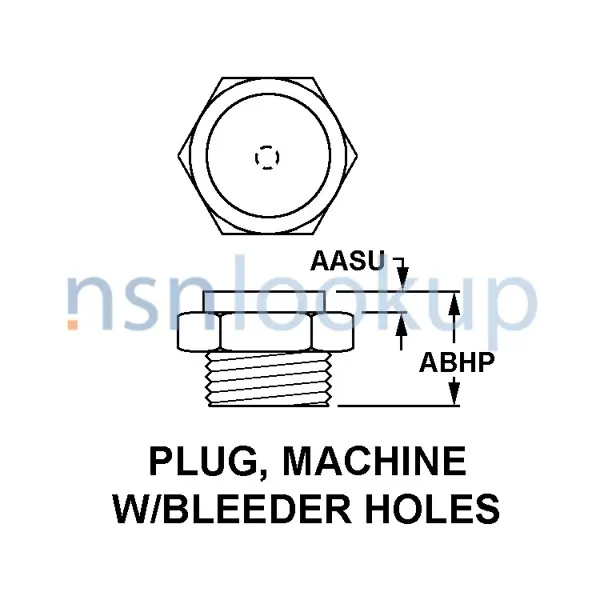

- Style Designator [STYL]
- Plug, Machine W/Bleeder Holes
- Thread Class [AAJD]
- 2A External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 0.352 Inches Nominal External
- Thread Series Designator [THSD]
- Unc External
- Thread Quantity Per Inch [CMLP]
- 32 External
DLA Procurement Analysis 5365-00-764-9178
Management Data 5365-00-764-9178
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Nov 2007
- US Marine Corps (DM)
- EA
- Subscribe
- 4
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- V
- Discontinued W/O Replacement
- V
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- 56
- Operational Test:
- No Special Procedures
Similar Supply Items to 5365-00-764-9178
Freight Information 5365-00-764-9178
5365-00-764-9178 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093750. A Sub NMFC of Z. It has a NMFC Description of BUNGS/PLUGS NOI IN PKGS. 5365-00-764-9178 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49080 which rates the freight between FCL and LCL. 5365-00-764-9178 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5365-00-764-9178 is not classified as a special type of cargo when transported by water. 5365-00-764-9178 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5365-00-764-9178 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
