5365-00-522-4061
Machine Thread Plug
5365005224061 005224061 5224061
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
January 2023
18
Marketplace 5365-00-522-4061
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-522-4061 1+ Documents (More...)
(Identification) 1/2 NSN 5365-00-522-4061 (Identification) 2/2 - - 1.
United States (US) 4. 5365-00-522-4061 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5365-00-522-4061
5365-00-522-4061 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-00-522-4061
- Portugal (ZP01)
- Effective Date:
- 1 Apr 2014
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5365-00-522-4061
- Part Number
- Manufacturer
- Status
- 5224061
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-00-522-4061
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Body Core Diameter [AJFC]
- 2.906 Inches Nominal
- Bleeder Hole Center To Threaded End Distance [AJFG]
- 0.7285 Inches Nominal
- Bleeder Hole Diameter [AJFH]
- 0.125 Inches Nominal
- Body Type [AJGE]
- Cored
- Connection Style [AHNC]
- Plain
- Core Depth [AJFD]
- 1.156 Inches Nominal
- Flange Diameter [ABKK]
- 3.875 Inches Nominal
- Flange Thickness [ABKU]
- 0.219 Inches Nominal
- Head Height [AASU]
- 0.594 Inches Nominal
- Material [MATT]
- Steel Overall
- Nominal Thread Size [CQJX]
- 3.500 Inches External
- Surface Treatment [SFTT]
- Cadmium Overall
- Material Document And Classification [MDCL]
- Astm A400 Assn Std Single Material Response Overall
- Special Features [FEAT]
- 4 Flats On Flange 90 Deg Apart,3.408 In. Dia By 0.438 In. Lg Shoulder Opposite Drive End
- Overall Length [ABHP]
- 1.813 Inches Nominal

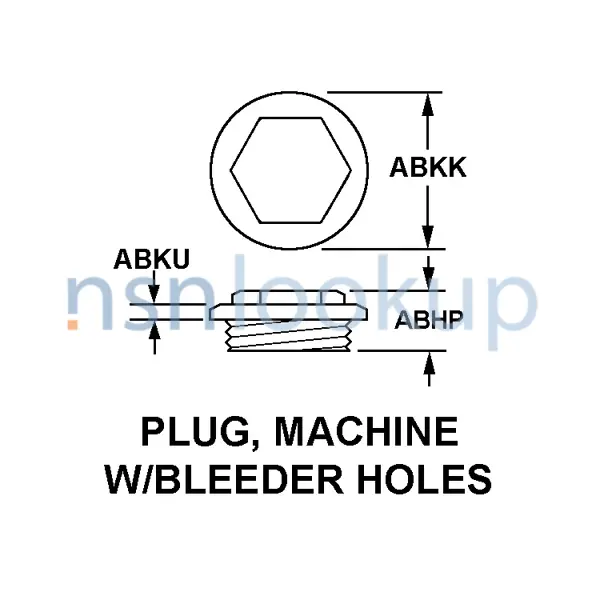

- Style Designator [STYL]
- Plug, Machine W/Bleeder Holes
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Overall
- Thread Class [AAJD]
- 3A External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 0.671 Inches Minimum External And 0.681 Inches Maximum External
- Thread Quantity Per Inch [CMLP]
- 16 External
- Thread Series Designator [THSD]
- Un External
Similar Supply Items to 5365-00-522-4061
Freight Information 5365-00-522-4061
5365-00-522-4061 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5365-00-522-4061 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5365-00-522-4061 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-00-522-4061 is not classified as a special type of cargo when transported by water. 5365-00-522-4061 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
