5365-00-518-5041

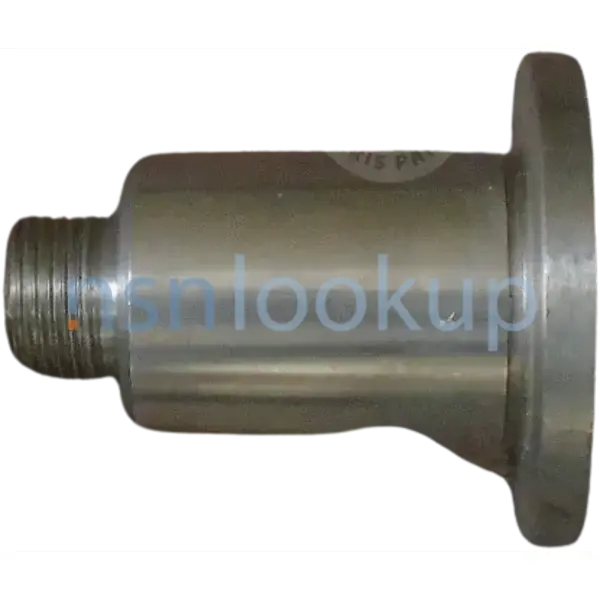

Machine Thread Plug
5365005185041 005185041 11684091
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
September 2024
22
Marketplace 5365-00-518-5041
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-518-5041 5+ Documents (More...)
. 11684091 PLUG,MACHINE THREAD 1 EA NS Request Quotation Subscribe to View Vendor Details... 5365-00-
Every Day 5365-00-518-5041 RQST Updated Every Day 5365-00-518-5041 RQST NE Related Documents 5365-00
Machine Thread Plug 5365005185041 005185041 5365003503874 003503874 310-8417 5365-01-273-0571 5365
310-8417 5365-01-273-0571 5365-00-287-0101 5365-01-224-6003 5365-12-191-0300 5365-00-350-3874 5365-00-518-5041
Machine Thread Plug 5365005185041 005185041 5365-01-168-5489 5365-00-350-3874 5365-00-518-5041
Thread Plug 5365010095170010095170 310-8417 5365-00-287-0101 5365-01-224-6003 5365-12- Items to 5365-00-518-5041
Machine Thread Plug 5365005185041 005185041 -3874 Machine Thread Plug 5365003503874 003503874 310
310-8417 5365-01-273-0571 5365-00-287-0101 5365-12-191-0300 5365-01-168-5489 5365-00-350-3874 5365-00-518-5041
Restrictions 5365-00-518-5041
5365-00-518-5041 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5365-00-518-5041
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-00-518-5041
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXCX
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Australia (ZA01)
- Effective Date:
- 1 Aug 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5365-00-518-5041
- Part Number
- Manufacturer
- Status
- 11684091
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-00-518-5041
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Connection Style [AHNC]
- Plain
- Head Height [AASU]
- 0.230 Inches Nominal
- Head Diameter [AASL]
- 2.310 Inches Nominal
- Material [MATT]
- Steel Comp 303 Overall
- Nominal Thread Size [CQJX]
- 0.875 Inches External
- Material Document And Classification [MDCL]
- Astm A582 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 2.620 Inches Nominal
- Thread Length [AASA]
- 0.560 Inches Minimum External And 0.580 Inches Maximum External
- Thread Series Designator [THSD]
- Unf External
- Thread Class [AAJD]
- 2A External
- Thread Direction [AAJF]
- Right-Hand External
Weapon Systems (WSDC) 5365-00-518-5041
DLA Procurement Analysis 5365-00-518-5041
- Last Stock Position:
- 234 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5365-00-518-5041
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Apr 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2021
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5365-00-518-5041
Freight Information 5365-00-518-5041
5365-00-518-5041 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5365-00-518-5041 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5365-00-518-5041 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-00-518-5041 is not classified as a special type of cargo when transported by water. 5365-00-518-5041 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-00-518-5041
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5365-00-518-5041 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
