5365-00-287-0101

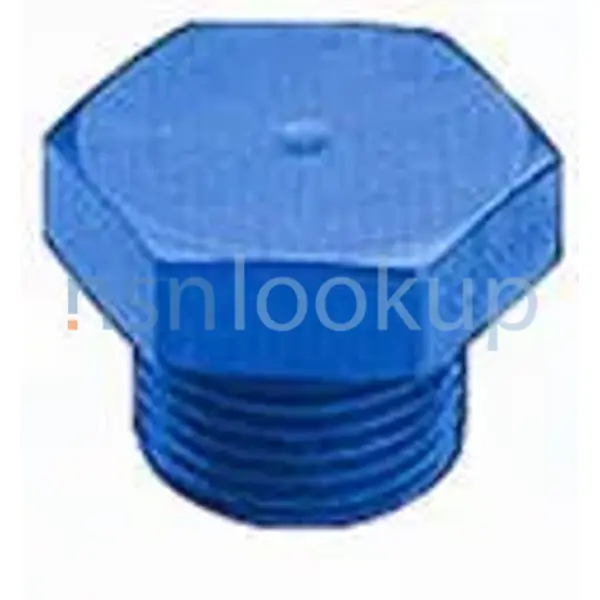

Machine Thread Plug
5365002870101 002870101 SAE-AS4875 AS5169D08 AN814-8D MILF5509A 10409839
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
46
46
NATO Data Quality
Marketplace 5365-00-287-0101
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
AN814-8D PLUG,MACHINE THREAD 51 EA NS
AS5169D08 PLUG,MACHINE THREAD 60 EA NS
MILF5509A PLUG,MACHINE THREAD RQST NS
MIL-F-5509A PLUG,MACHINE THREAD 1085 EA NS
Updated Every Day 5365-00-287-0101 RQST NE
Updated Every Day 5365-00-287-0101 RQST
Updated Every Day 5365-00-287-0101 RQST NE
Related Documents 5365-00-287-0101 5+ Documents (More...)
SAE-AS4875 AS5169D08 MILF5509A AN814-8D 10409839 An item with a cylindrical shaped body having external
AN814-8D PLUG,MACHINE THREAD 3 EA NS Request Quotation AS5169D08 PLUG,MACHINE THREAD 9 EA NS Request
AN814-8D PLUG,MACHINE THREAD 51 EA NS Request Quotation AS5169D08 PLUG,MACHINE THREAD 60 EA NS Request
AN814-8D PLUG,MACHINE THREAD 3 EA NS Request Quotation AS5169D08 PLUG,MACHINE THREAD 9 EA NS Request
AN814-8D PLUG,MACHINE THREAD 51 EA NS Request Quotation AS5169D08 PLUG,MACHINE THREAD 60 EA NS Request
431384 ITEM 40 AS5169-4 5365-805-1403 MILF5509A MS24391-4 An item with a cylindrical shaped body having
MS24391-4 PLUG,MACHINE THREAD 81 EA NS Request Quotation MILF5509A PLUG,MACHINE THREAD RQST NS Request
Machine Thread Plug 5365002870101 002870101 $1 a day Upgrade your Account Upgrade 5365-00-287-0101Machine
MS24391-4 PLUG,MACHINE THREAD 81 EA NS Request Quotation MILF5509A PLUG,MACHINE THREAD RQST NS Request
Machine Thread Plug 5365002870101 002870101 $1 a day Upgrade your Account Upgrade 5365-00-287-0101Machine
$1 a day Upgrade your Account Upgrade 5365-01-476-7480Machine Thread Plug5365014767480 014767480 SAE-AS4875
$1 a day Upgrade your Account Upgrade 5365-00-203-9357Machine Thread Plug5365002039357 002039357 SAE-AS4875
MIL-F-5509 PLUG,MACHINE THREAD 2 PG NS Request https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-00-287-0101
$1 a day Upgrade your Account Upgrade 5365-00-203-9357Machine Thread Plug5365002039357 002039357 SAE-AS4875
MIL-F-5509 PLUG,MACHINE THREAD 2 PG NS Request https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-00-287-0101
$1 a day Upgrade your Account Upgrade 5365-00-287-0105Machine Thread Plug5365002870105 002870105 SAE-AS4875
13207E2880FN13 34850029 AS5169-08 MILF5509A AN814-8 An item with a cylindrical shaped body having external
THREAD 147 EA NS Request Quotation MIL-F-5509A PLUG,MACHINE THREAD 1085 EA NS Request Quotation MILF5509A
13207E2880FN13 34850029 AS5169-08 MILF5509A AN814-8 An item with a cylindrical shaped body having external
THREAD 147 EA NS Request Quotation MIL-F-5509A PLUG,MACHINE THREAD 1085 EA NS Request Quotation MILF5509A
$1 a day Upgrade your Account Upgrade 5365-00-287-0098Machine Thread Plug5365002870098 002870098 SAE-AS4875
AS5169D16 MILF5509A AN814-16D AS5169-D16 An item with a cylindrical shaped body having external threads
MILF5509A PLUG,MACHINE THREAD RQST NS Request Quotation AN814-16D PLUG,MACHINE THREAD 55 EA NS Request
AS5169D16 MILF5509A AN814-16D AS5169-D16 An item with a cylindrical shaped body having external threads
MILF5509A PLUG,MACHINE THREAD RQST NS Request Quotation AN814-16D PLUG,MACHINE THREAD 55 EA NS Request
Restrictions 5365-00-287-0101
5365-00-287-0101 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5365-00-287-0101
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-00-287-0101
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- BDCTCL
- US Coast Guard (C911)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- C006
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXCX
- NASA (G940)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKEHXHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Aug 2006
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5365-00-287-0101
- Part Number
- Manufacturer
- Status
- SAE-AS4875
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS5169D08
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS5169D08
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Original Design
- Original Design
- AN814-8D
- A0126 - Leonardo Spa Helicopters Division - (Active)
- Secondary Buy
- Secondary Buy
- MILF5509A
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN814-8D
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10409839
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5365-00-287-0101
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Body Core Diameter [AJFC]
- 0.390 Inches Nominal
- Bleeder Hole Center To Threaded End Distance [AJFG]
- 0.219 Inches Minimum And 0.281 Inches Maximum
- Bleeder Hole Diameter [AJFH]
- 0.062 Inches Nominal
- Connection Style [AHNC]
- Plain
- Core Depth [AJFD]
- 0.343 Inches Minimum And 0.359 Inches Maximum
- Head Height [AASU]
- 0.312 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-225/6 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 2024 Overall
- Nominal Thread Size [CQJX]
- 0.750 Inches External
- Surface Treatment [SFTT]
- Anodize Overall
- Overall Length [ABHP]
- 0.781 Inches Nominal
- Style Designator [STYL]
- Plug, Machine W/Bleeder Holes
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625,Ty 2 Mil Spec Single Treatment Response Overall
- Thread Direction [AAJF]
- Right-Hand External
- Thread Class [AAJD]
- 3A External
- Thread Length [AASA]
- 0.375 Inches Nominal External
- Thread Series Designator [THSD]
- Unf External
