5365-00-203-4338
Machine Thread Plug
5365002034338 002034338 93D46
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
November 2023
13
Marketplace 5365-00-203-4338
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-203-4338 2+ Documents (More...)
Every Day 5365-00-203-4338 RQST NE Related Documents 5365-00-203-4338 2+ Documents ( More... ) https
Identification) 1/2 NSN 5365-00-203-4338 (Identification) 2/2 - - 1.
Restrictions 5365-00-203-4338
5365-00-203-4338 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5365-00-203-4338
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- KE
Approved Sources 5365-00-203-4338
- Part Number
- Manufacturer
- Status
- 93D46
- Manufacturer
- 0AHP5 - Curtiss-Wright Controls, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-00-203-4338
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0

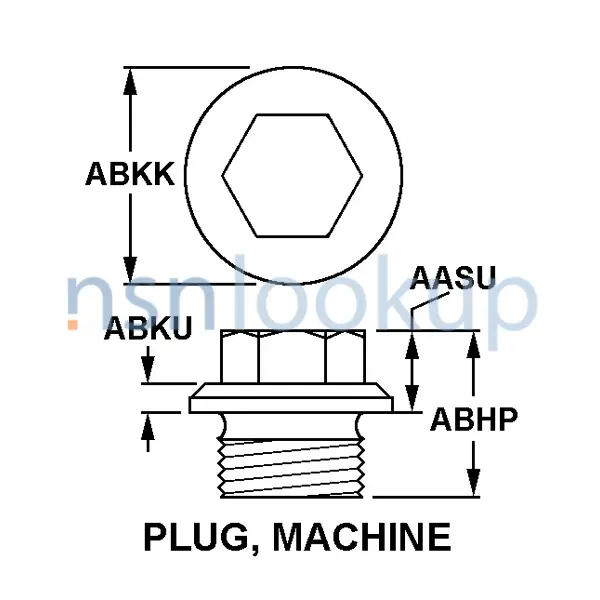

- Body Core Diameter [AJFC]
- 0.734 Inches Nominal
- Connection Style [AHNC]
- Plain
- Core Depth [AJFD]
- 0.470 Inches Minimum And 0.530 Inches Maximum
- Flange Diameter [ABKK]
- 1.293 Inches Minimum And 1.318 Inches Maximum
- Flange Thickness [ABKU]
- 0.120 Inches Nominal
- Head Height [AASU]
- 0.400 Inches Nominal
- Material [MATT]
- Aluminum Alloy 2024 Overall
- Nominal Thread Size [CQJX]
- 1.000 Inches External
- Material Document And Classification [MDCL]
- Ams 4120 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 1.062 Inches Nominal
- Thread Quantity Per Inch [CMLP]
- 16 External
- Thread Series Designator [THSD]
- Un External
- Thread Pitch Diameters [AAJE]
- +0.9562 To 0.9589 Inches External
- Thread Pitch In Millimeters [TPMM]
- 24.2 Nominal External
- Style Designator [STYL]
- Plug, Machine
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 0.341 Inches Nominal External
DLA Procurement Analysis 5365-00-203-4338
Management Data 5365-00-203-4338
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5365-00-203-4338
Freight Information 5365-00-203-4338
5365-00-203-4338 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 5365-00-203-4338 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 5365-00-203-4338 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-00-203-4338 is not classified as a special type of cargo when transported by water. 5365-00-203-4338 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
