5365-00-088-9573
Nonmetallic Bushing
5365000889573 000889573 MIL-DTL-11891 TYPE II STYLE B MILDTL11891G(AT) 11678029
An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC. View more Nonmetallic Bushing
November 2023
35
Product Information 5365-00-088-9573

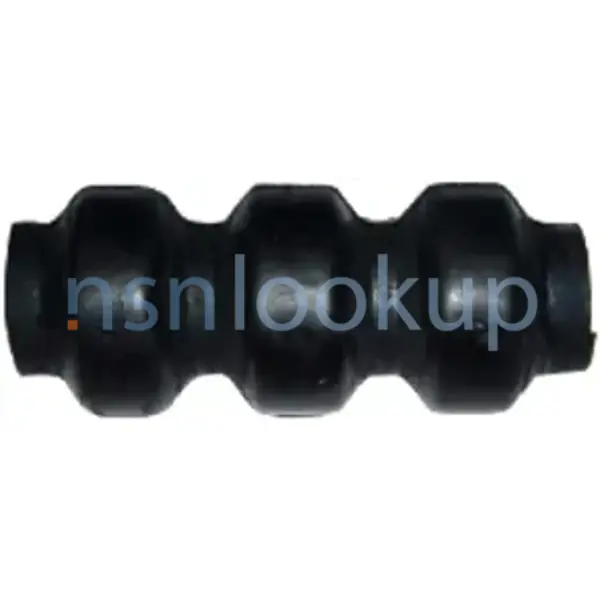

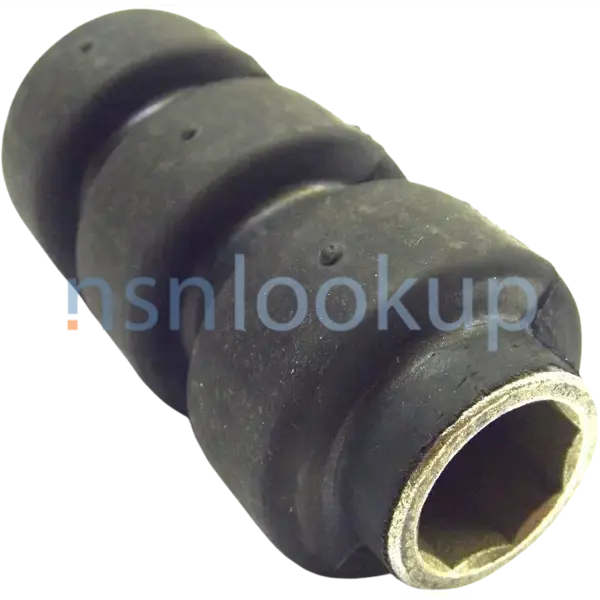

T-130 Long Bushing
Long bushing utilized in single pin track assemblies for the M113 family of vehicles.
Marketplace 5365-00-088-9573
Request a Quotation from participating marketplace vendors
Related Documents 5365-00-088-9573 5+ Documents (More...)
Nonmetallic Bushing 5365000889573 000889573 United States (US) 4. 5365-00-088-9573 Marketplace
Restrictions Approved Sources Datasheet Management Marketplace 5365-00-088-9573 Need Help?
Nonmetallic Bushing 5365000889573 000889573 a day Upgrade your Account Upgrade 5365-00-088-9573Nonmetallic
Bushing5365000889573 000889573 MIL-DTL-11891 NumberManufacturerStatus11678029 19207 - U S Army Tank
Restrictions 5365-00-088-9573
5365-00-088-9573 is a Nonmetallic Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5365-00-088-9573
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-00-088-9573
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Spain (YB01)
- Effective Date:
- 1 Dec 1999
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5365-00-088-9573
- Part Number
- Manufacturer
- Status
- 11678029
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- MIL-DTL-11891 TYPE II STYLE B
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILDTL11891G(AT)
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 11678029
- 08754 - Loc Performance Products Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11678029
- 04NP0 - Contitech Usa, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11678029
- 0SN25 - North American Molded Products (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11678029
- B1478 - Varec Nv (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11678029
- 5JVB3 - Robin Industries, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 11678029
- 27387 - Tenneco Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 11678029
- 6B334 - Tenneco Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5365000889573
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5365-00-088-9573
- Characteristic
- Specifications
- FIIG
- Specifications
- A535J0
- Body Diameter [ABPM]
- 0.875 Inches Minimum And 0.885 Inches Maximum
- Hole Diameter [AAUB]
- 0.050 Inches Minimum And 0.070 Inches Maximum All Holes
- Hole Quantity [ASXK]
- 12 All Holes
- Material Document And Classification [MDCL]
- Mil-T-11891(Ord) Mil Spec Single Material Response
- Material [MATT]
- Rubber
- Part Name Assigned By Controlling Agency [CXCY]
- Bushing
- Special Features [FEAT]
- Insert 8756519
- Special Test Features [SPCL]
- Bushing Must Fill From 95% To 110% Of The Volume Of A Cylinder Of 1.203 To 1.187" Diameter And From 3.031 To 3.125" Long
- Specification/Standard Data [ZZZK]
- 96906-Dod-Std-00100D Government Standard And 80204-Ansi Y14.5M-1982 Professional/Industrial Association Specification
- Tapered Body Largest Diameter [BWRP]
- 1.365 Inches Minimum And 1.375 Inches Maximum
Weapon Systems (WSDC) 5365-00-088-9573
DLA Procurement Analysis 5365-00-088-9573
- Last Stock Position:
- 230 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5365-00-088-9573
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5365-00-088-9573
Freight Information 5365-00-088-9573
5365-00-088-9573 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-00-088-9573 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-00-088-9573 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5365-00-088-9573 is not classified as a special type of cargo when transported by water. 5365-00-088-9573 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-00-088-9573
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 5365-00-088-9573 10 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A722P0705
- 13 Oct 2021
- Subscribe
- 47191
- Subscribe
- Subscribe
- Subscribe
- SPE4A621P8695
- 19 Jan 2021
- Subscribe
- 42131
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V001F
- 19 Jul 2018
- Subscribe
- 17508
- Subscribe
- Subscribe
- Subscribe
- SPE4A417V8000
- 14 Jul 2017
- Subscribe
- 21600
- Subscribe
- Subscribe
- Subscribe
- SPE4A617PA665
- 31 Mar 2017
- Subscribe
- 3200
- Subscribe
- Subscribe
- Subscribe
- SPE4A617PA395
- 30 Mar 2017
- Subscribe
- 8250
- Subscribe
- Subscribe
- Subscribe
- SPE4A616MG814
- 12 Jul 2016
- Subscribe
- 4200
- Subscribe
- Subscribe
- Subscribe
- SPE4A616MF982
- 27 Jun 2016
- Subscribe
- 7200
- Subscribe
- Subscribe
- Subscribe
- SPE4A416V5809
- 24 Feb 2016
- Subscribe
- 9648
- Subscribe
- Subscribe
- Subscribe
- SPE4A616M2023P00001
- 30 Oct 2015
- Subscribe
- 1152
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5365-00-088-9573 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
