5360-00-912-1124
Compression Helical Spring
5360009121124 009121124 10852-8
An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE. View more Compression Helical Spring
May 2023
23
Marketplace 5360-00-912-1124
Request a Quotation from participating marketplace vendors
Related Documents 5360-00-912-1124 1+ Documents (More...)
RQST NE Updated Every Day 5360-00-912-1124 RQST Updated Every Day 5360-00-912-1124 RQST NE Related
Documents 5360-00-912-1124 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5360/us 5360
Restrictions 5360-00-912-1124
5360-00-912-1124 is a Compression Helical Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 5360-00-912-1124
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- US Navy (N9BZ)
- Effective Date:
- 1 Sep 2005
- Supplementary Collaborators:
- GTHD
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Canada (ZC)
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE)
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1995
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Feb 1997
- Netherlands (ZN)
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- United States of America (ZZ)
Approved Sources 5360-00-912-1124
- Part Number
- Manufacturer
- Status
- 10852-8
- Manufacturer
- 41387 - Siemens Industry, Inc. (Active)
- Primary Buy
- Primary Buy
- 10852-8
- U2445 - Siemens Moore Process Automation (Active)
- Secondary Buy
- Secondary Buy
- 10852-8
- D9182 - Zf Industrieantriebe Witten Gmbh (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5360-00-912-1124
- Characteristic
- Specifications
- FIIG
- Specifications
- A02900
- Material [MATT]
- Steel Overall

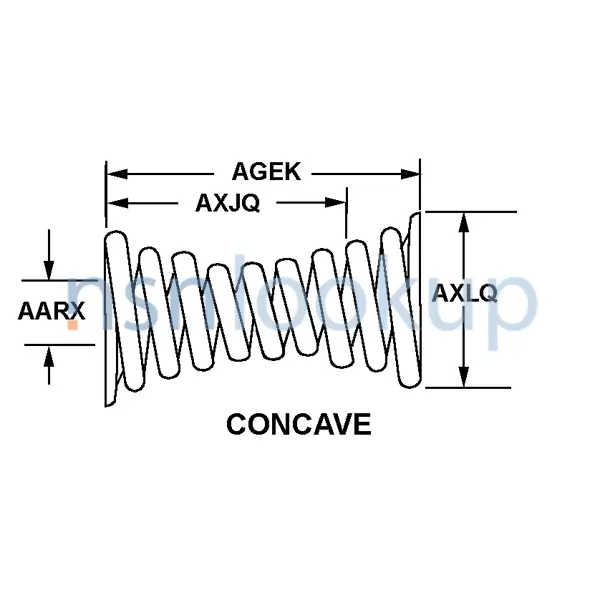

- Style Designator [STYL]
- Concave
- Inside Diameter [AARX]
- 0.062 Inches Nominal
- Spring Free Length [AGEK]
- 0.656 Inches Nominal
- Spring Solid Length [AXJQ]
- 0.312 Inches Nominal
- Spring Free Outside Diameter [AXLQ]
- 0.188 Inches Nominal
- End Style [ABQK]
- Spring End,Squared And Ground Both Ends
- Coil Helix Direction [AXLH]
- Left-Hand
- Coil Quantity [APCN]
- 18
Weapon Systems (WSDC) 5360-00-912-1124
DLA Procurement Analysis 5360-00-912-1124
Management Data 5360-00-912-1124
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 4820
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 4820
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5360-00-912-1124
Freight Information 5360-00-912-1124
5360-00-912-1124 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 177940. A Sub NMFC of X. It has a NMFC Description of SPRINGS:SPRINGS NOI. 5360-00-912-1124 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 87400 which rates the freight between FCL and LCL. 5360-00-912-1124 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 579 for ocean manifesting and military sealift. 5360-00-912-1124 is not classified as a special type of cargo when transported by water. 5360-00-912-1124 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5360-00-912-1124 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
