5360-00-693-0615

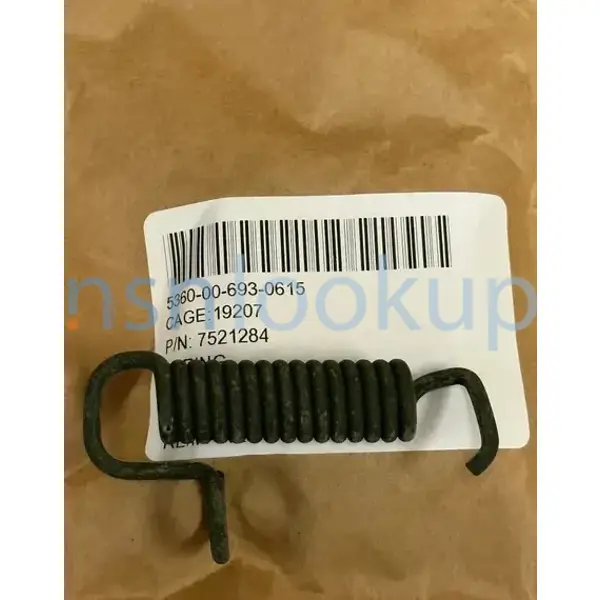

Extension Helical Spring
5360006930615 006930615 7521284 913685
An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE. View more Extension Helical Spring
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
43
43
NATO Data Quality
Marketplace 5360-00-693-0615
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
7521284 SPRING,HELICAL,EXTENSION 7 EA NS
5360-00-693-0615 SPRING,HELICAL,EXTENSION 4 EA NS
913685 SPRING,HELICAL,EXTENSION 7 EA NS
Updated Every Day 5360-00-693-0615 RQST NE
Updated Every Day 5360-00-693-0615 RQST
Updated Every Day 5360-00-693-0615 RQST NE
Related Documents 5360-00-693-0615 5+ Documents (More...)
24P Unit Parts Manual for M44A3 Series Trucks Page 495 19207 7521234 5310-01-173-0120 97 27 19207 7521284
5360-00-693-0615 105 4 19207 7521369 97 15 19207 7521377 2520-00-692-6086 98 3 106 17 19207 7521436
102 10 5315-00-616-5524 110 10 2520-00-692-6086 https//www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-693-0615
5360-00-693-0615 105 4 19207 7521369 97 15 19207 7521377 2520-00-692-6086 98 3 106 17 19207 7521436
102 10 5315-00-616-5524 110 10 2520-00-692-6086 https//www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-693-0615
01-074-5029 127 6 19207 7521161 2510-01-423-8534 127 5 19207 7521234 5310-01-173-0120 97 27 19207 7521284
5360-00-693-0615 105 4 19207 https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-01-074-5029 Wire Rope
Extension Helical Spring 5360006930615 technical-manual TM-9-2320-386-24P Unit Parts Manual for
5360-00-693-0615 105 4 19207 https//www.nsnlookup.com /fsg-40/fsc-4010/us 4010-01-074-5029 Wire Rope
Extension Helical Spring 5360006930615 technical-manual TM-9-2320-386-24P Unit Parts Manual for
01-074-5029 127 6 19207 7521161 2510-01-423-8534 127 5 19207 7521234 5310-01-173-0120 97 27 19207 7521284
5360-00-693-0615 105 4 19207 7521369 97 15 19207 7521377 2520-00-692-6086 98 3 106 17 19207 7521436
5360-00-693-0615 105 4 19207 7521369 97 15 19207 7521377 2520-00-692-6086 98 3 106 17 19207 7521436
No. 5360-00-692-6089 8 11 5365-00-752-1021 3 20 5360-00-693-0615 11 17 5365-00-752-1045 3 35 5360-00-
1 11 16 PAOZZ 5310-00-752-1235 7521235 19207 WASHER,FLAT:BRAKE DRUM FLANGE EA 1 11 17 PAOZZ 5360-00-693-0615
7521284 19207 SPRING,HELICAL,EXTENSION:BRAKE SHOE ADJUSTING ANGLE EA 1 RETURN 11 18 PAFZZ 5310-
7521284 19207 SPRING,HELICAL,EXTENSION:BRAKE SHOE ADJUSTING ANGLE EA 1 RETURN 11 18 PAFZZ 5310-
Restrictions 5360-00-693-0615
5360-00-693-0615 is a Extension Helical Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5360-00-693-0615
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5360-00-693-0615
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Air Force (FXGI)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5360-00-693-0615
- Part Number
- Manufacturer
- Status
- 7521284
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 913685
- 58275 - Sasco Inc Canadian Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5360006930615
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5360-00-693-0615
- Characteristic
- Specifications
- FIIG
- Specifications
- A02900
- Coil Helix Direction [AXLH]
- Right-Hand Or Left-Hand
- Coil Quantity [APCN]
- 6-1/4
- Design Type [APGF]
- Open
- End Style [ABQK]
- Machine Hook Both Ends
- Hook Width [CXTK]
- 0.469 Inches Nominal First End
- Material [MATT]
- Steel Overall
- Load Rating [ASZD]
- 25.00 Pounds Minimum And 35.00 Pounds Maximum
- Spring Free Length [AGEK]
- 2.234 Inches Nominal
- Spring Free Outside Diameter [AXLQ]
- 0.562 Inches Nominal
- Spring Length Under Load [CSZP]
- 2.125 Inches Nominal
- Style Designator [STYL]
- Cylindrical
Weapon Systems (WSDC) 5360-00-693-0615
DLA Procurement Analysis 5360-00-693-0615
- Last Stock Position:
- 160 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5360-00-693-0615
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5360-00-693-0615
