5360-00-678-3208

Compression Helical Spring

5360006783208 006783208 7320428 2815006783208

An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE. View more Compression Helical Spring

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
June 2025

NATO Update Count
29

NATO Data Quality

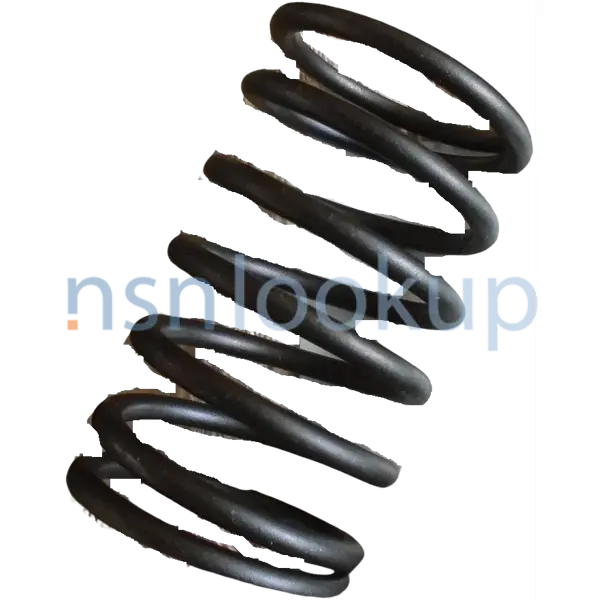

5360-00-678-3208 SPRING,HELICAL,COMPRESSION 5360006783208 006783208 1/2 — 5360-00-678-3208 Photo 1/2

STYL Style A1 for 5360-00-678-3208 2/2 — NSN 5360-00-678-3208 (Identification) 2/2

Marketplace 5360-00-678-3208

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

7320428 SPRING,HELICAL,COMPRESSION 648 EA NS

Subscribe to View Vendor Details...

7320428 SPRING,HELICAL,COMPRESSION 1000 EA NS

Subscribe to View Vendor Details...

7320428 SPRING,HELICAL,COMP 648 EA SN

Subscribe to View Vendor Details...

5360-00-678-3208 SPRING 36 EA NS

Subscribe to View Vendor Details...

7320428 SPRING,HELICAL,COMPRESSION 2 EA NS

Subscribe to View Vendor Details...

1549159 SPRING,HELICAL,COMPRESSION 36 EA NS

Subscribe to View Vendor Details...

7320428 SPRING,HELICAL,COMPRESSION 112 EA NS

Updated Every Day

5360-00-678-3208 RQST NE

Updated Every Day

5360-00-678-3208 RQST

Updated Every Day

5360-00-678-3208 RQST NE

Restrictions 5360-00-678-3208

5360-00-678-3208 is a Compression Helical Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

End Users 5360-00-678-3208

US Army (A919)
Effective Date:: 1 Sep 2005
Former MOE Rule:: A187
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY AZ

US Marine Corps (MC47)
Effective Date:: 1 Sep 2005
Former MOE Rule:: MC10; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BZ)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC G IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Mar 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 5360-00-678-3208

Part Number
Manufacturer
Status
7320428: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC X
7320428: 02978 - Renk America Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC X
7320428: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
2815006783208: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
5360006783208: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
2815006783208: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
5360006783208: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5360-00-678-3208

Characteristic
Specifications
FIIG: A02900
Bore Diameter [ABXV]: 2.172 Inches Nominal
Coil Helix Direction [AXLH]: Left-Hand
Coil Quantity [APCN]: 7-1/10
End Style [ABQK]: Spring End,Squared And Ground Both Ends
Material Document And Classification [MDCL]: Qq-W-474,Comp D-Canceled Fed Spec Single Material Response Overall
Material Hardness Rating [ALME]: 43.0 Rockwell C Minimum And 46.0 Rockwell C Maximum
Material [MATT]: Steel Overall
Inside Diameter [AARX]: 1.734 Inches Minimum And 1.750 Inches Maximum
Spring Free Length [AGEK]: 3.480 Inches Nominal
Spring Free Outside Diameter [AXLQ]: 2.146 Inches Minimum And 2.166 Inches Maximum
Spring Solid Length [AXJQ]: 1.470 Inches Maximum
Style Designator [STYL]: Cylindrical

Weapon Systems (WSDC) 5360-00-678-3208

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 5360-00-678-3208

Last Stock Position:: 2624 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 5360-00-678-3208

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Jul 2023: Department of the Army (DA); EA; Subscribe; 1
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Department of the Army (DA); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Feb 2020: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

T: Industrial Supplies (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Physical Category:

1: Bin

Similar Supply Items to 5360-00-678-3208

Freight Information 5360-00-678-3208

5360-00-678-3208 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 177940. A Sub NMFC of X. It has a NMFC Description of SPRINGS:SPRINGS NOI. 5360-00-678-3208 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 87400 which rates the freight between FCL and LCL. 5360-00-678-3208 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 579 for ocean manifesting and military sealift. 5360-00-678-3208 is not classified as a special type of cargo when transported by water. 5360-00-678-3208 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 5360-00-678-3208

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Plated/Coated Item; 2lb or less, one dimension 2" or less, other dimensions less than 24"; Above 110G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Procurement History 5360-00-678-3208 5 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE5EJ21P0644P00001: 25 Mar 2021; Subscribe; 3937; Subscribe; Subscribe
SPE5EN19F0754: 03 Dec 2018; Subscribe; 2159; Subscribe; Subscribe
SPE5EN18F5060: 29 Aug 2018; Subscribe; 1849; Subscribe; Subscribe
SPE5EN18F4087: 29 Jun 2018; Subscribe; 742; Subscribe; Subscribe
SPE5EJ16M1601: 03 Aug 2016; Subscribe; 4310; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 5360-00-678-3208 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...
