5360-00-678-3207
Compression Helical Spring
5360006783207 006783207 7320429 5366006783207
An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE. View more Compression Helical Spring
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
June 2025
June 2025
NATO Update Count
29
29
NATO Data Quality
Marketplace 5360-00-678-3207
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5360-00-678-3207 5+ Documents (More...)
7320429 5366006783207 An open coiled spring, wound in various forms and from different shapes and types

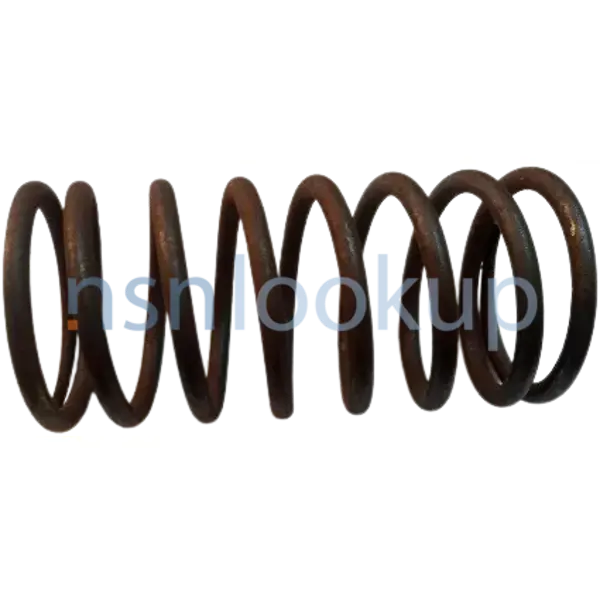

Photo 1/2 NSN 5360-00-678-3207 (Identification) 2/2 - - 1.
SPRING,HELICAL,COMPRESSION 501 EA NS Request Quotation Subscribe to View Vendor Details... 7320429
Photo 1/2 NSN 5360-00-678-3207 (Identification) 2/2 - - 1.
SPRING,HELICAL,COMPRESSION 501 EA NS Request Quotation Subscribe to View Vendor Details... 7320429
Spring 5360007878549 473-3648 5360-01-129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Spring 5360003147062 682-7190 5360-01-129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Spring 5360001032487 682-7190 5360-01-129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Spring 5360003147062 682-7190 5360-01-129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Spring 5360001032487 682-7190 5360-01-129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Compression Helical Spring 5360007878549 129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Compression Helical Spring 5360003147062 129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Compression Helical Spring 5360001032487 129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Compression Helical Spring 5360003147062 129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
Compression Helical Spring 5360001032487 129-3947 5360-00-121-0524 5360-00-138-4494 5360-00-236-8495 5360-00-678-3207
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-01-478-3987 Compression Helical Spring 5360014783987 682-7190 5360-00-678-3207
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-291-4326 Compression Helical Spring 5360002914326 682-7190 5360-00-678-3207
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-302-0241 Compression Helical Spring 5360003020241 682-7190 5360-00-678-3207
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-291-4326 Compression Helical Spring 5360002914326 682-7190 5360-00-678-3207
www.nsnlookup.com /fsg-53/fsc-5360/us 5360-00-302-0241 Compression Helical Spring 5360003020241 682-7190 5360-00-678-3207
678-3208 5360-00-682-7190 5360-01-557-5471 5360-01-591-3676 5360-00-878-8214 5360-00-692-9231 5360-00-678-3207
Restrictions 5360-00-678-3207
5360-00-678-3207 is a Compression Helical Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5360-00-678-3207
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5360-00-678-3207
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZ
- US Air Force (FXGI)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FXKZ
- US Marine Corps (MC47)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5360-00-678-3207
- Part Number
- Manufacturer
- Status
- 7320429
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 7320429
- 02978 - Renk America Llc (Active)
- Secondary Buy
- Secondary Buy
- 7320429
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- 5366006783207
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5360006783207
- A00AM - E.C.A Etablissement Central Des (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5366006783207
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5360-00-678-3207
- Characteristic
- Specifications
- FIIG
- Specifications
- A02900
- Bore Diameter [ABXV]
- 1.734 Inches Nominal
- Coil Helix Direction [AXLH]
- Left-Hand
- Coil Quantity [APCN]
- 8-3/10
- End Style [ABQK]
- Spring End,Squared And Ground Both Ends
- Material Document And Classification [MDCL]
- Qq-W-474,Comp D-Canceled Fed Spec Single Material Response Overall
- Material Hardness Rating [ALME]
- 43.0 Rockwell C Minimum And 46.0 Rockwell C Maximum
- Material [MATT]
- Steel Overall
- Inside Diameter [AARX]
- 1.379 Inches Minimum And 1.395 Inches Maximum
- Spring Free Length [AGEK]
- 3.480 Inches Nominal
- Spring Free Outside Diameter [AXLQ]
- 1.701 Inches Minimum And 1.721 Inches Maximum
- Spring Solid Length [AXJQ]
- 1.340 Inches Maximum
- Style Designator [STYL]
- Cylindrical
Weapon Systems (WSDC) 5360-00-678-3207
DLA Procurement Analysis 5360-00-678-3207
- Last Stock Position:
- 735 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5360-00-678-3207
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5360-00-678-3207
Freight Information 5360-00-678-3207
5360-00-678-3207 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 177940. A Sub NMFC of X. It has a NMFC Description of SPRINGS:SPRINGS NOI. 5360-00-678-3207 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 87400 which rates the freight between FCL and LCL. 5360-00-678-3207 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 579 for ocean manifesting and military sealift. 5360-00-678-3207 is not classified as a special type of cargo when transported by water. 5360-00-678-3207 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5360-00-678-3207
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5360-00-678-3207 3 Records
Contracting Technical Data File (CTDF) 5360-00-678-3207 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
