5360-00-071-0752

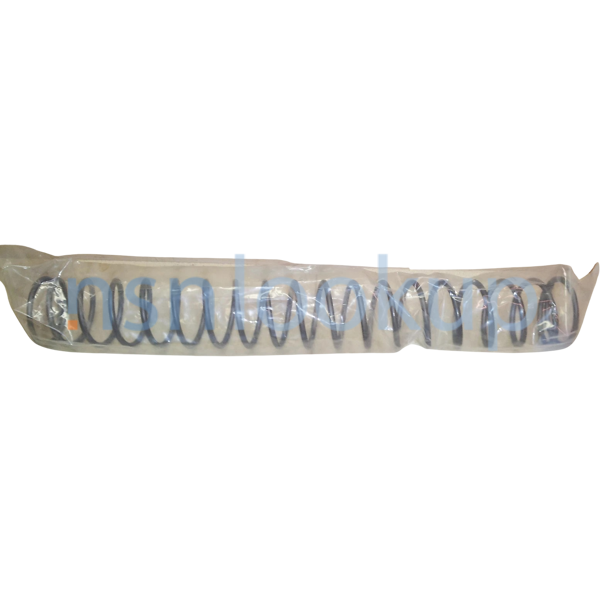

Compression Helical Spring
5360000710752 000710752 10936121
An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE. View more Compression Helical Spring
August 2025
28
Marketplace 5360-00-071-0752
Request a Quotation from participating marketplace vendors
Related Documents 5360-00-071-0752 5+ Documents (More...)
RQST NE Updated Every Day 5360-00-071-0752 RQST Updated Every Day 5360-00-071-0752 RQST NE Related
Documents 5360-00-071-0752 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5360/us 5360
Restrictions 5360-00-071-0752
5360-00-071-0752 is a Compression Helical Spring that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5360-00-071-0752
- US Army (A919)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A187
- Supplementary Receivers:
- BF
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Dec 1997
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5360-00-071-0752
- Part Number
- Manufacturer
- Status
- 10936121
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
- 10936121
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5360-00-071-0752
- Characteristic
- Specifications
- FIIG
- Specifications
- A02900
- Coil Helix Direction [AXLH]
- Right-Hand Or Left-Hand
- Coil Quantity [APCN]
- 19
- End Style [ABQK]
- Spring End,Squared And Ground Both Ends
- Material Document And Classification [MDCL]
- Qq-W-412,Comp 1,Type 1 Fed Spec Single Material Response Overall
- Material [MATT]
- Steel Overall
- Inside Diameter [AARX]
- 2.528 Inches Nominal
- Spring Free Length [AGEK]
- 22.250 Inches Nominal
- Spring Free Outside Diameter [AXLQ]
- 3.016 Inches Nominal
- Style Designator [STYL]
- Cylindrical
Weapon Systems (WSDC) 5360-00-071-0752
DLA Procurement Analysis 5360-00-071-0752
- Last Stock Position:
- 90 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5360-00-071-0752
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5360-00-071-0752
Freight Information 5360-00-071-0752
5360-00-071-0752 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 177940. A Sub NMFC of X. It has a NMFC Description of SPRINGS:SPRINGS NOI. 5360-00-071-0752 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 87400 which rates the freight between FCL and LCL. 5360-00-071-0752 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 579 for ocean manifesting and military sealift. 5360-00-071-0752 is not classified as a special type of cargo when transported by water. 5360-00-071-0752 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5360-00-071-0752
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5360-00-071-0752 1 Records
Contracting Technical Data File (CTDF) 5360-00-071-0752 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
