5355-01-521-3846
Knob
5355015213846 015213846 A3106066-001 A3106066
An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified). View more Knob
November 2023
1
Marketplace 5355-01-521-3846
Request a Quotation from participating marketplace vendors
Related Documents 5355-01-521-3846 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5355-01-521-3846 RQST NE Updated Every Day 5355-01-521-3846 RQST
) https//www.nsnlookup.com /fsg-53/fsc-5355/us 5355-01-521-3846 Knob 5355015213846015213846,A3106066
-1 A3106066-01 A3106066 An item designed to transmit manual, rotary or linear motion to other devices
Knob 5355015213846 015213846,A3106066 -001 Every 15 Minutes 5355-01-349-2458 BUY NE FedMall https
Knob 5355015213846 015213846,A3106066-001 Every 15 Minutes 5355-01-349-2458 BUY NE FedMall https
Restrictions 5355-01-521-3846
5355-01-521-3846 is a Knob that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5355-01-521-3846
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-01-521-3846
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- CL
Approved Sources 5355-01-521-3846
- Part Number
- Manufacturer
- Status
- A3106066-001
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- A3106066
- 80063 - Us Army Communications & Electronics (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5355-01-521-3846
- Characteristic
- Specifications
- FIIG
- Specifications
- A530M0
- Style Designator [STYL]
- Round With Crown
- Outside Diameter [ABKV]
- 22.3 Millimeters Nominal
- Attachment Method [ABSX]
- Setscrews
- Setscrew Hole Quantity [ABFR]
- 2

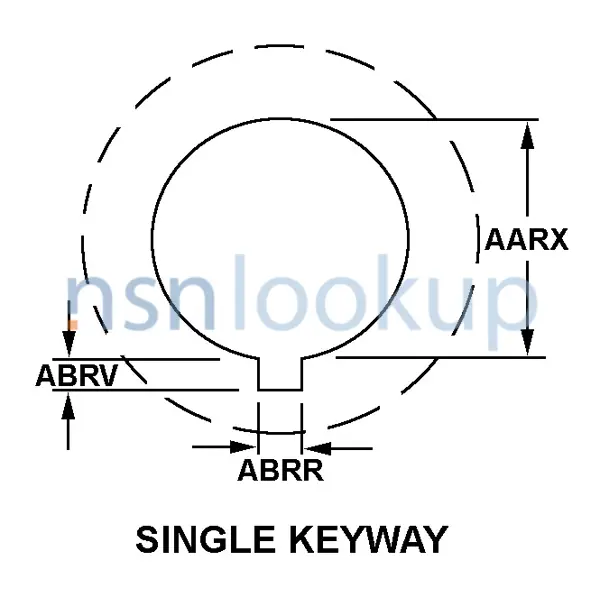

- Shaft Accommodation Style [ABHH]
- Single Keyway
- Inside Diameter [AARX]
- 6.4 Millimeters Nominal
- Overall Depth [ABFY]
- 13.9 Millimeters Nominal
- Skirt Style [ABSL]
- Stepped
- Color [HUES]
- Gray
- End Item Identification [AGAV]
- 5821-01-229-1220; Receiver Transmitter
- Part Name Assigned By Controlling Agency [CXCY]
- Knob-Machined
Weapon Systems (WSDC) 5355-01-521-3846
DLA Procurement Analysis 5355-01-521-3846
- Last Stock Position:
- 11 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5355-01-521-3846
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5355-01-521-3846
Freight Information 5355-01-521-3846
5355-01-521-3846 has freight characteristics managed by the Southwestern Power Administration.It has a National Motor Freight Classification (NMFC) of 108590. A Sub NMFC of X. It has a NMFC Description of KNOBS/PULLS DOOR/DRAWER NOI. 5355-01-521-3846 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55550 which rates the freight between FCL and LCL. 5355-01-521-3846 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5355-01-521-3846 is not classified as a special type of cargo when transported by water. 5355-01-521-3846 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5355-01-521-3846
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5355-01-521-3846 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
