5355-01-383-6536

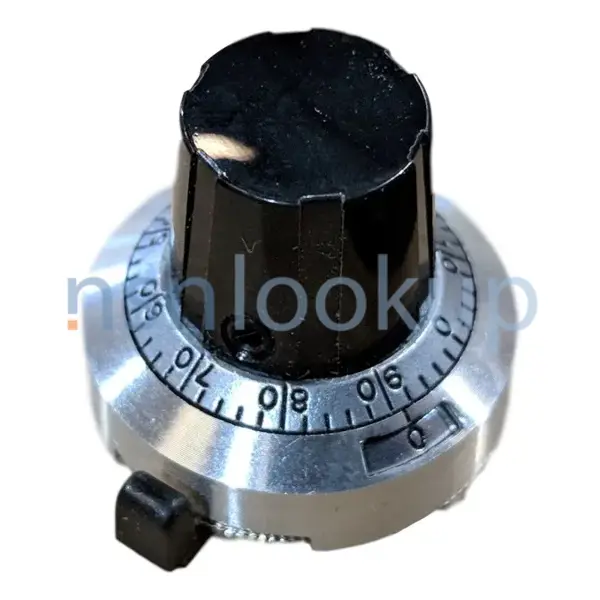

Control Dial
5355013836536 013836536 2607S
A dial designed to be connected to a tuning or selecting mechanism to position the mechanism to some value within its adjustable range. It is designed to be read in conjunction with a vernier indicator, pointer, or like instruments which may or may not be an integral part of the item. May include a knob. For items with one graduation, letter, or symbol, or marked to indicate the position of items such as a valve, brake, or two position switch, see KNOB or HANDWHEEL. See also DIAL, SCALE. View more Control Dial
November 2023
4
Marketplace 5355-01-383-6536
Request a Quotation from participating marketplace vendors
Related Documents 5355-01-383-6536 3+ Documents (More...)
FedMall Updated Every 15 Minutes 5355-01-383-6536 BUY NE FedMall Updated Every Day 5355-01-383-6536
RQST NE Updated Every Day 5355-01-383-6536 RQST Updated Every Day 5355-01-383-6536 RQST NE Related Documents
DIAL,CONTROL 42 EA NS Request Quotation Subscribe to View Vendor Details... 2607S DIAL,CONTROL 42 EA
Control Dial 5355013836536 013836536,2607S DIAL,CONTROL 42 EA NS Request Quotation Subscribe to
Bearing Cage Shim 2520004622607004622607 Upgrade for $1 a day Upgrade your Account Upgrade 2520-00-462-2607S
Restrictions 5355-01-383-6536
5355-01-383-6536 is a Control Dial that is specifically designed to be or selected as being nuclear hard. In addition it has other critical features such as tolerance, fit restrictions or application.Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5355-01-383-6536
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-01-383-6536
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GTHXHD
Approved Sources 5355-01-383-6536
- Part Number
- Manufacturer
- Status
- 2607S
- Manufacturer
- 73138 - Bi Technologies Corporation (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 5355-01-383-6536
- Characteristic
- Specifications
- FIIG
- Specifications
- A530P0
- Attachment Method [ABSX]
- Stud
- Criticality Code Justification [CRTL]
- Zzzy
- Height [HGTH]
- 0.940 Inches Nominal
- Material [MATT]
- Plastic Overall
- Outside Diameter [ABKV]
- 0.879 Inches Minimum And 0.891 Inches Maximum
- Knob Portion Diameter [ABTV]
- 0.510 Inches Minimum And 0.550 Inches Maximum
- Reference Number Differentiating Characteristics [ZZZY]
- As Differentiated By Material Which Must Conform To Ships Parts Control Center Special Quality Control Provisions
- Style Designator [STYL]
- Round W/Knob
- Surface Treatment [SFTT]
- Chromate Dial
Weapon Systems (WSDC) 5355-01-383-6536
DLA Procurement Analysis 5355-01-383-6536
- Last Stock Position:
- 38 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5355-01-383-6536
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5355-01-383-6536
Freight Information 5355-01-383-6536
5355-01-383-6536 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 5355-01-383-6536 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 5355-01-383-6536 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5355-01-383-6536 is not classified as a special type of cargo when transported by water. 5355-01-383-6536 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5355-01-383-6536
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Special Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- --
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5355-01-383-6536 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
