5355-01-364-2858
Knob
5355013642858 013642858 BP064-104 9D0108-1
An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified). View more Knob
May 2023
4
Marketplace 5355-01-364-2858
Request a Quotation from participating marketplace vendors
Related Documents 5355-01-364-2858 5+ Documents (More...)
/fsg-53/fsc-5355/us

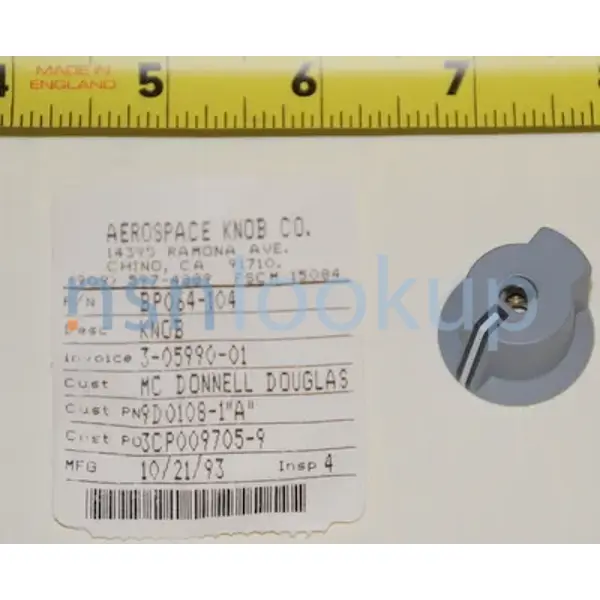

Photo 1/4 NSN 5355-01-364-2858 (Identification) 2/4 NSN 5355-01-364-2858 (Identification) 3/4 NSN
BP064-104 KNOB 2 EA NS Request Quotation Updated Every Day 5355-01-364-2858 RQST NE Updated Every Day
Restrictions 5355-01-364-2858
5355-01-364-2858 is a Knob that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5355-01-364-2858
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-01-364-2858
- US Air Force (FBB5)
- Effective Date:
- 1 May 2000
- Former MOE Rule:
- FEKZ
Approved Sources 5355-01-364-2858
- Part Number
- Manufacturer
- Status
- BP064-104
- Manufacturer
- 81590 - Korry Electronics Co (Active)
- Primary Buy
- Primary Buy
- 9D0108-1
- 88277 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- BP064-104
- 15084 - Dupree Inc Aerospace Knob Co Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5355-01-364-2858
- Characteristic
- Specifications
- FIIG
- Specifications
- A530M0
- Distance From Hole Center To Knob/Skirt Base [ABFU]
- 0.280 Inches Minimum And 0.340 Inches Maximum
- End Item Identification [AGAV]
- Aircraft,Airlifter C-17A Acft 88277
- Attachment Method [ABSX]
- Setscrews
- Color [HUES]
- Gray, Fed Std 595, 36231
- Gripping Surface Condition [ABHG]
- Smooth
- Material [MATT]
- Plastic
- Nominal Thread Size [CQJX]
- 0.164 Inches Setscrew
- Outside Diameter [ABKV]
- 0.670 Inches Minimum And 0.730 Inches Maximum
- Inside Diameter [AARX]
- 0.252 Inches Minimum And 0.254 Inches Maximum
- Pointer Design [CSKT]
- Nondetachable
- Reference Marking [ABSP]
- Indicator Line
- Screw Drive Type [CBSC]
- Hexagon Socket
- Setscrew Hole Quantity [ABFR]
- 2
- Shaft Accommodation Style [ABHH]
- Flatted One Side
- Skirt Outside Diameter [CRPJ]
- 0.097 Inches Minimum And 1.030 Inches Maximum
- Skirt Design [CRWX]
- Nondetachable
- Skirt Style [ABSL]
- Flared
- Overall Thickness [ADUM]
- 0.660 Inches Minimum And 0.720 Inches Maximum
- Part Name Assigned By Controlling Agency [CXCY]
- Knob-Plastics Bar Pointer
- Special Features [FEAT]
- Item Contains A 0.385 Outside Dia Brass Insert Located .16 From The Base Of The Knob; Knob Material Is Per Mil-K-25049; Indicia Is White No 37875Per Fed-Std-595 Surrounded By Black Border Color No 37038 Per Fed-Sted-595; Knob Is Jused For General Applications
- Thread Quantity Per Inch [CMLP]
- 32 Setscrew
- Thread Series Designator [THSD]
- Unc Setscrew
- Thread Tolerance Class [CTTC]
- 3A External Setscrew
- Style Designator [STYL]
- Round
Management Data 5355-01-364-2858
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Aug 2005
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- Z
- Discontinued-Use 5355-01-417-3446
- Z
Similar Supply Items to 5355-01-364-2858
Freight Information 5355-01-364-2858
5355-01-364-2858 has freight characteristics.. 5355-01-364-2858 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
