Premium Information is available for this item - Upgrade for $1 a day
5355-01-310-1927
Knob
5355013101927 013101927 NASM3926 D71C2MA 507-3WA-1M-4 MS91528-1F1B4 MIL-K-3926
An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified). View more Knob
November 2023
12
Marketplace 5355-01-310-1927
Request a Quotation from participating marketplace vendors
Related Documents 5355-01-310-1927 5+ Documents (More...)
NASM3926 KNOB 19 EA NS Request Quotation MIL-K-3926 KNOB 64 EA NS Request Quotation Subscribe to View
or NASM3926 KNOB 19 EA NS Request Quotation MIL-K-3926 KNOB 64 EA NS Request Quotation Subscribe to
101B4 507-3BL-1M-4 D71C2MA/BL MS91528-101B4 KMS7FBLACKLIGHTED2-4 An item designed to transmit manual
Knob 5355013101927 013101927,NASM3926 - Upgrade for $1 a day Upgrade your Account Upgrade 5355-
EA NS Request Quotation Subscribe to View MIL-K-3926 KNOB 64 EA NS Request Quotation NASM3926 https/
/us 5355-01-231-1354 Knob 5355012311354 012311354,NASM3926 MIL-K-3926 KNOB 64 EA NS Request Quotation
MIL-K-3926 KNOB 64 EA NS Request Quotation NASM3926 KNOB 19 EA NS Request Quotation Subscribe to View
MIL-K-3926 KNOB 64 EA NS Request Quotation NASM3926 KNOB 19 EA NS Request Quotation Subscribe to View
-4MA MS91528-3DD2B MIL-K-3926 An item designed to transmit manual, rotary or linear motion to MIL-K-3926
transmit manual, rotary or linear motion to MIL-K-3926 KNOB 64 EA NS Request MIL-K-3926 An item designed
Restrictions 5355-01-310-1927
5355-01-310-1927 is a Knob that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5355-01-310-1927
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-01-310-1927
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A186
- Supplementary Receivers:
- AZBD
- US Marine Corps (MC47)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC10
- US Navy (N9BZ)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- HD
Approved Sources 5355-01-310-1927
- Part Number
- Manufacturer
- Status
- NASM3926
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- MS91528-1F1B4
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- D71C2MA
- 99813 - Jan Hardware Mfg Co Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 507-3WA-1M-4
- 52525 - Lerco Div Space-Lok Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MIL-K-3926
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS91528-1F1B4
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5355-01-310-1927
- Characteristic
- Specifications
- FIIG
- Specifications
- A530M0
- Distance From Hole Center To Knob/Skirt Base [ABFU]
- 0.369 Inches Nominal
- End Item Identification [AGAV]
- 1430-01-286-1314
- Attachment Method [ABSX]
- Setscrews
- Gripping Surface Condition [ABHG]
- Grip Aid
- Material [MATT]
- Plastic
- Nominal Thread Size [CQJX]
- 0.112 Inches Screw Hole
- Outside Diameter [ABKV]
- 1.150 Inches Nominal
- Knob Portion Diameter [ABTV]
- 0.605 Inches Minimum And 0.655 Inches Maximum
- Screw Drive Type [CBSC]
- Hexagon Socket
- Setscrew Hole Quantity [ABFR]
- 2
- Overall Thickness [ADUM]
- 1.025 Inches Minimum And 1.125 Inches Maximum
- Thread Quantity Per Inch [CMLP]
- 40 Screw Hole
- Thread Series Designator [THSD]
- Unc Screw Hole
- Specification/Standard Data [ZZZK]
- 96906-Ms91528 Government Standard

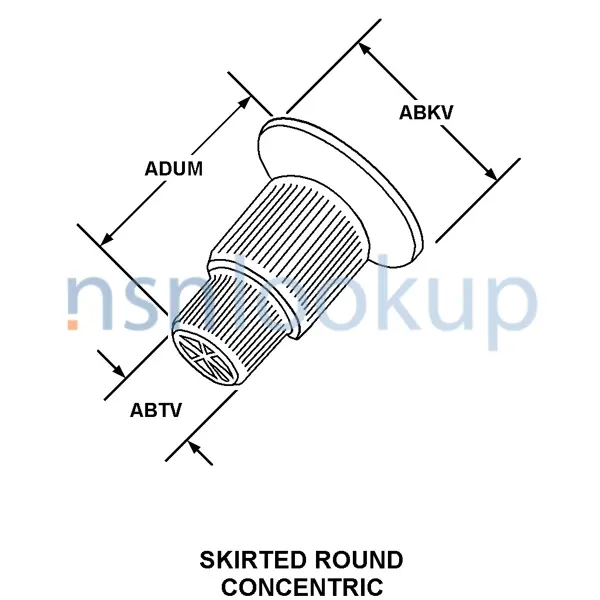

- Style Designator [STYL]
- Skirted Round Concentric
Weapon Systems (WSDC) 5355-01-310-1927
DLA Procurement Analysis 5355-01-310-1927
- Last Stock Position:
- 51 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5355-01-310-1927
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5355-01-310-1927
Freight Information 5355-01-310-1927
5355-01-310-1927 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 108590. A Sub NMFC of X. It has a NMFC Description of KNOBS/PULLS DOOR/DRAWER NOI. 5355-01-310-1927 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55550 which rates the freight between FCL and LCL. 5355-01-310-1927 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5355-01-310-1927 is not classified as a special type of cargo when transported by water. 5355-01-310-1927 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5355-01-310-1927
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5355-01-310-1927 1 Records
Contracting Technical Data File (CTDF) 5355-01-310-1927 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
