5355-00-735-8700
Knob
5355007358700 007358700 29237
An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified). View more Knob
January 2023
11
Marketplace 5355-00-735-8700
Request a Quotation from participating marketplace vendors
Related Documents 5355-00-735-8700 5+ Documents (More...)
5355-00-735-8700 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5355/us 5355-00-735-8700
Knob 5355007358700 007358700,29237 29237 An item designed to transmit manual, rotary or linear motion
/fsg-51/fsc-5120/ca 5120-21-105-1642 5120211051642211051642 014304576351-29237-030351-29237-30211051642
/fsg-53/fsc-5355/us 5355-00-735-8700 Knob 5355007358700 007358700,29237 Restrictions Approved Sources
a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 351-29237
Knob 5355007358700 007358700,29237 351-29237-30 211051642 https//www.nsnlookup.com https//www.nsnlookup.com
/www.nsnlookup.com /fsg-43/fsc-4310/us 4310-00-731-6578 3Rd Stage Trap Assy 4310007316578007316578 29237
Knob 5355007358700 007358700,29237 item - Upgrade for $1 a day Upgrade your Account Upgrade 5355
351-29237-039 351-19237-039 163-34014-014 An item, usually in the form of a flanged rim, designed to
Knob 5355007358700 007358700,29237 -30 211051642 RQST NE Updated Every Day 5980-01-430-4576 RQST
Restrictions 5355-00-735-8700
5355-00-735-8700 is a Knob that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5355-00-735-8700
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-00-735-8700
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5355-00-735-8700
- Part Number
- Manufacturer
- Status
- 29237
- Manufacturer
- 09384 - Cec Vibration Products, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5355-00-735-8700
- Characteristic
- Specifications
- FIIG
- Specifications
- A530M0
- Attachment Method [ABSX]
- Pin
- Color [HUES]
- Black
- Gripping Surface Condition [ABHG]
- Grip Aid
- Material [MATT]
- Plastic
- Outside Diameter [ABKV]
- 1.188 Inches Nominal
- Inside Diameter [AARX]
- 0.257 Inches Nominal
- Shaft Accommodation Style [ABHH]
- Round
- Skirt Design [CRWX]
- Nondetachable
- Overall Thickness [ADUM]
- 0.672 Inches Nominal
- Pin Accommodation Type [ABGU]
- Straight Pin Type W/O Pin
- Special Features [FEAT]
- Knob End Conical Knurl 36Porm 2 Full Teeth 90 Deg Vee 0.625 In. Circular Pitch At 0.716 In.Pitch

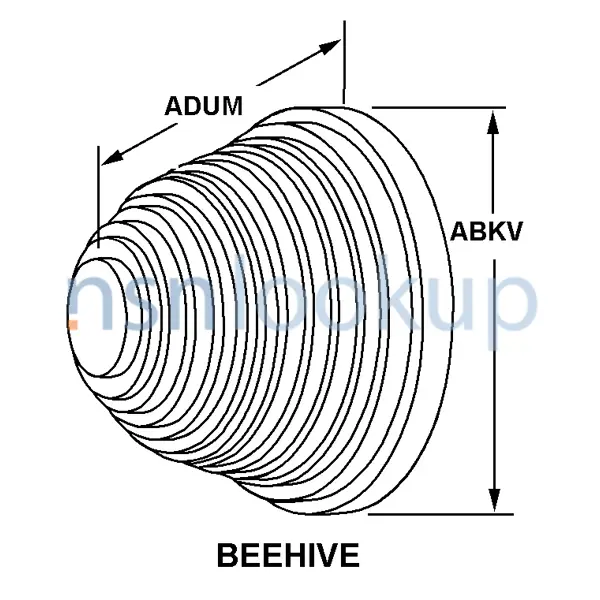

- Style Designator [STYL]
- Beehive
Similar Supply Items to 5355-00-735-8700
Freight Information 5355-00-735-8700
5355-00-735-8700 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 5355-00-735-8700 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5355-00-735-8700 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 5355-00-735-8700 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 5355-00-735-8700 is not classified as a special type of cargo when transported by water. 5355-00-735-8700 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
