5355-00-256-3634
Electronic Component Dial-Knob Lock
5355002563634 002563634 SA5810
An item designed to be mounted on a panel, chassis or the like, to grip and lock a dial or knob to a fixed position. For items designed to clamp around the shaft to which the dial or knob is affixed, see SHAFT LOCK, ELECTRICAL COMPONENT. View more Lock Dial-Knob
May 2023
5
Marketplace 5355-00-256-3634
Request a Quotation from participating marketplace vendors
Related Documents 5355-00-256-3634 1+ Documents (More...)
Updated Every Day 5355-00-256-3634 RQST NE Related Documents 5355-00-256-3634 1+ Documents ( More...
SA5810 SA5810 An item designed to be mounted on a panel, chassis or the like, to grip and lock a dial
Restrictions 5355-00-256-3634
5355-00-256-3634 is a Electronic Component Dial-Knob Lock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5355-00-256-3634
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-00-256-3634
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5355-00-256-3634
- Part Number
- Manufacturer
- Status
- SA5810
- Manufacturer
- 07886 - Dar Electronics Inc Commercial (Obsolete)
- Original Design
- Original Design
Datasheet 5355-00-256-3634
- Characteristic
- Specifications
- FIIG
- Specifications
- A530V0

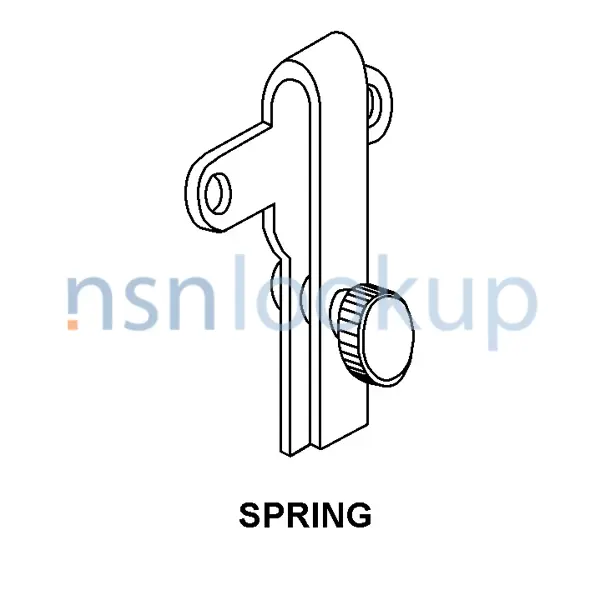

- Style Designator [STYL]
- Spring
- Attachment Method [ABSX]
- Center Hole
- Item Accommodated Maximum Thickness [ABWK]
- 0.062 Inches
- Locking Adjustment Type [ABWL]
- Friction Knob
DLA Procurement Analysis 5355-00-256-3634
Management Data 5355-00-256-3634
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5355-00-256-3634
Freight Information 5355-00-256-3634
5355-00-256-3634 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5355-00-256-3634 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5355-00-256-3634 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5355-00-256-3634 is not classified as a special type of cargo when transported by water. 5355-00-256-3634 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5355-00-256-3634
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5355-00-256-3634 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
