5355-00-159-8370
Knob
5355001598370 001598370 38246G1
An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified). View more Knob
May 2023
8
Marketplace 5355-00-159-8370
Request a Quotation from participating marketplace vendors
Related Documents 5355-00-159-8370 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5355-00-159-8370 RQST NE Updated Every Day 5355-00-159-8370 RQST
Updated Every Day 5355-00-159-8370 RQST NE Related Documents 5355-00-159-8370 1+ Documents ( More...
Restrictions 5355-00-159-8370
5355-00-159-8370 is a Knob that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5355-00-159-8370
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5355-00-159-8370
- US Army (A920)
- Effective Date:
- 1 Mar 2005
- Former MOE Rule:
- A186
- Supplementary Receivers:
- CL
Approved Sources 5355-00-159-8370
- Part Number
- Manufacturer
- Status
- 38246G1
- Manufacturer
- 25734 - Bosch Security Systems, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 5355-00-159-8370
- Characteristic
- Specifications
- FIIG
- Specifications
- A530M0
- Attachment Method [ABSX]
- Unthreaded Stud
- Gripping Surface Condition [ABHG]
- Grip Aid
- Material [MATT]
- Plastic
- Outside Diameter [ABKV]
- 0.437 Inches Nominal
- Overall Thickness [ADUM]
- 0.562 Inches Nominal

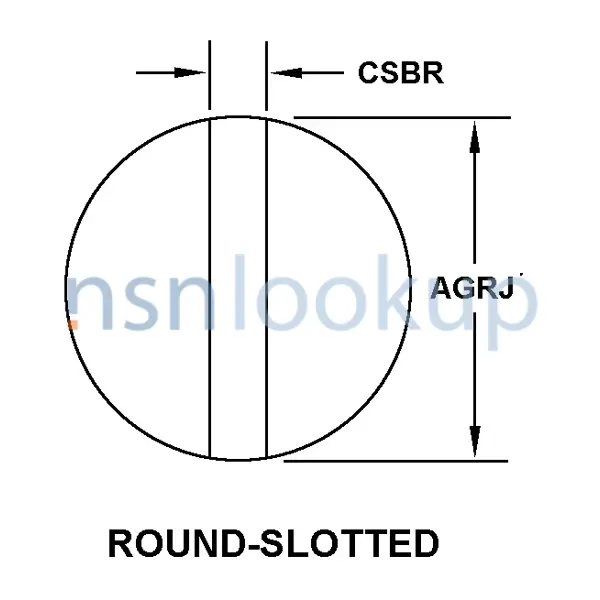

- Unthreaded Stud Style [ABFX]
- Round-Slotted
- Stud Slot Width [CSBR]
- 0.062 Inches Nominal
- Stud Diameter [AGRJ]
- 0.172 Inches Nominal
- Style Designator [STYL]
- Round
DLA Procurement Analysis 5355-00-159-8370
Management Data 5355-00-159-8370
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5355-00-159-8370
Freight Information 5355-00-159-8370
5355-00-159-8370 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 108590. A Sub NMFC of X. It has a NMFC Description of KNOBS/PULLS DOOR/DRAWER NOI. 5355-00-159-8370 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55550 which rates the freight between FCL and LCL. 5355-00-159-8370 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5355-00-159-8370 is not classified as a special type of cargo when transported by water. 5355-00-159-8370 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5355-00-159-8370 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
