5345-01-343-5613
Abrasive Disk
5345013435613 013435613 ANSI B74.18 7000000717 048011-00750
A flat, circular, flexible or semiflexible abrasive coated material, with or without center hole. View more Abrasive Disk
May 2023
11
Marketplace 5345-01-343-5613
Request a Quotation from participating marketplace vendors
Related Documents 5345-01-343-5613 5+ Documents (More...)

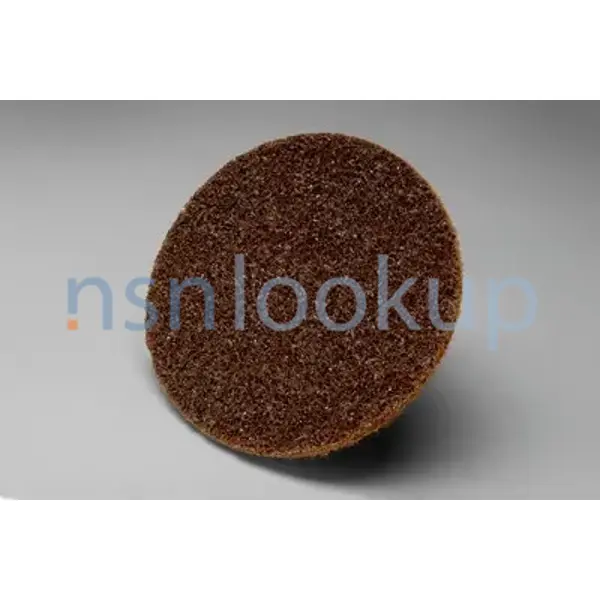

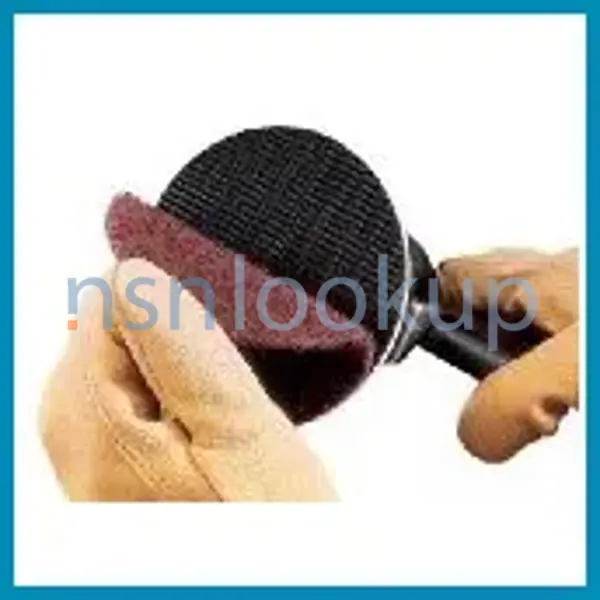

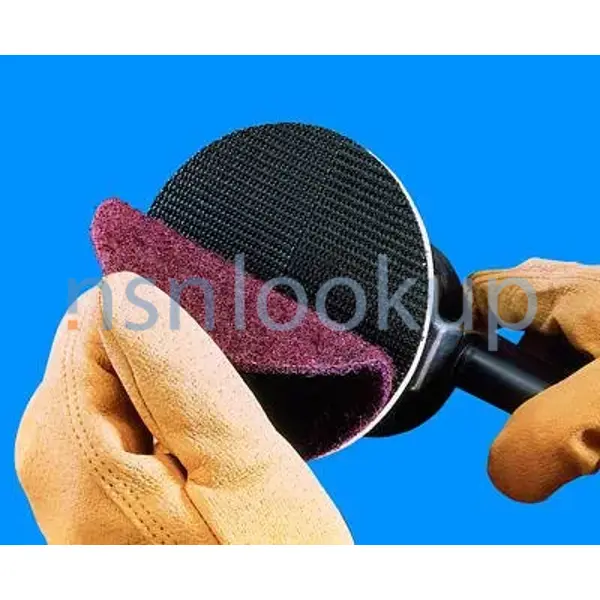

Photo 1/4 5345-01-343-5613 Photo 2/4 5345-01-343-5613 Photo 3/4 5345-01-343-5613 Photo 4/4 - -
ANSI B74.18 DISK,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details... 048011-00750
ANSI B74.18 BELT,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 DISK,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 BELT,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 BELT,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 DISK,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 BELT,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 DISK,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
ANSI B74.18 DISK,ABRASIVE RQST NS Request Quotation Subscribe to View Vendor Details...
Restrictions 5345-01-343-5613
5345-01-343-5613 is a Abrasive Disk that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5345-01-343-5613
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 2002
Approved Sources 5345-01-343-5613
- Part Number
- Manufacturer
- Status
- ANSI B74.18
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- 048011-00750
- 27293 - 3M Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 7000000717
- 76381 - 3M Company (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5345-01-343-5613
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Aluminum Oxide
- Abrasive Disk Type [AHCP]
- Plain Flat
- Usage Design [ACVE]
- Metal Working
- Waterproof Feature [AKSS]
- Not Included
- Adhesive Backing [AHCX]
- Not Included
- Maximum Speed Rating In Rpm [ATPR]
- 10000.0
- Outside Diameter [ABKV]
- 5.000 Inches Nominal
- Special Features [FEAT]
- Scotch-Brite Surface Conditioning; Reinforced Web; Coarse Grit; Color-Brown; Nh
- Specification/Standard Data [ZZZK]
- 80204-Ansi B74.18 Professional/Industrial Association Standard
Similar Supply Items to 5345-01-343-5613
Freight Information 5345-01-343-5613
5345-01-343-5613 has freight characteristics managed by the Food and Drug Administration (FDA).. 5345-01-343-5613 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
