5345-01-117-3868
Abrasive Flap Wheel
5345011173868 011173868 ANSI-B74.18 08834131010 31010 XX-0011-120 GRIT XX-0011
An item consisting of coated abraders, each secured to the rim of an item mounted on a spindle or on a flange. It is used for internal grinding and satin finishing all types of metallic or nonmetallic materials. View more Abrasive Flap Wheel
May 2023
12
Marketplace 5345-01-117-3868
Request a Quotation from participating marketplace vendors
Related Documents 5345-01-117-3868 5+ Documents (More...)

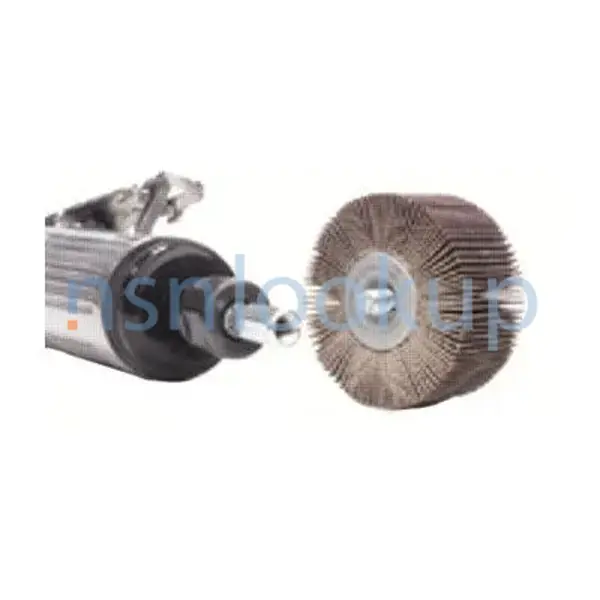

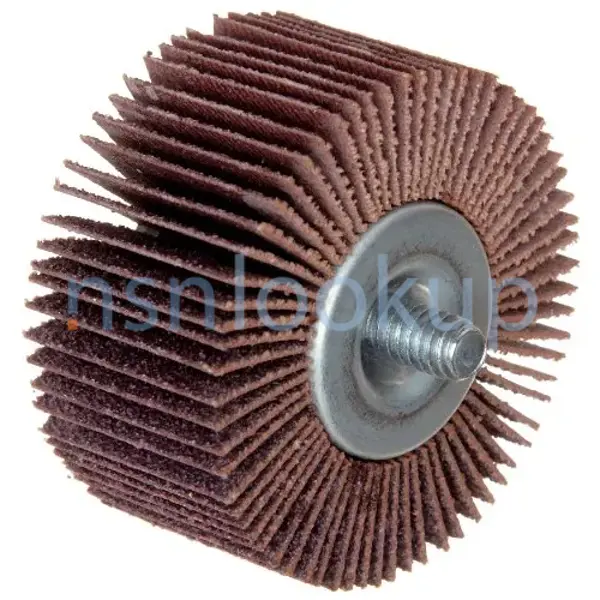

Photo 1/2 5345-01-117-3868 Photo 2/2 - - 1.
Every Day 5345-01-117-3868 RQST Updated Every Day 5345-01-117-3868 RQST NE Related Documents 5345-01
011173868 370-1738 5345-12-328-3670 5345-98-203-7871 5345-22-612-7180 5345-01-683-5335 -9307 Abrasive
001517936 370-1738 5345-12-328-3670 5345-98-203-7871 5345-22-612-7180 5345-01-683-5335 Flap Wheel 5345011173868
011173868 370-1738 5345-12-328-3670 981078540 5345981078540981078540 Documents 5345-98-107-8540 3+ Documents
011173868 370-1738 5345-12-328-3670 5345-98-203-7871 https//www.nsnlookup.com /fsg-53/fsc-5345/dk 5345
011173868 370-1738 5345-12-328-3670 https//www.nsnlookup.com /fsg-53/fsc-5345/us 5345-01-683-5335 Abrasive
Restrictions 5345-01-117-3868
5345-01-117-3868 is a Abrasive Flap Wheel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5345-01-117-3868
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5345-01-117-3868
- US Air Force (FGGS)
- Effective Date:
- 1 Apr 1991
- NASA (G751)
- Effective Date:
- 1 Apr 1991
- US Navy (N9QG)
- Effective Date:
- 1 Apr 1991
- Supplementary Collaborators:
- GTHD
- Malaysia (YW01)
- Effective Date:
- 1 Mar 2004
Approved Sources 5345-01-117-3868
- Part Number
- Manufacturer
- Status
- ANSI-B74.18
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- 08834131010
- 44197 - Saint-Gobain Abrasives Inc (Active)
- Primary Buy
- Primary Buy
- 31010
- 00179 - Merit Abrasive Products Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- XX-0011-120 GRIT
- 00179 - Merit Abrasive Products Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- XX-0011
- 00179 - Merit Abrasive Products Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 08834131010
- 00179 - Merit Abrasive Products Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5345-01-117-3868
- Characteristic
- Specifications
- FIIG
- Specifications
- A06900
- Abrasive Material [AHCM]
- Aluminum Oxide
- Screen Grit Size Designator [AHCN]
- 120
- Usage Design [ACVE]
- Metal Working
- Backing Material [AHCV]
- Cloth, X-Weight
- Maximum Speed Rating In Rpm [ATPR]
- 30000.0
- Special Features [FEAT]
- Size 1In. Dia. X 1In. W. X 1/4In.-20 Threads, Has A Resin Bond, Quick Change Mini Grind-O-Flex
Management Data 5345-01-117-3868
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2021
- Department of the Air Force (DF)
- BX
- Subscribe
- BX
- Feb 2020
- Department of the Air Force (DF)
- BX
- Subscribe
- BX
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- Department of the Navy (DN)
- N
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
- General Services Administration (TG)
- I
- K
- U/I Contains 10 Ea
- 00000000010EA
- K
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9Q
NATO Stock Numbers Related to 5345-01-117-3868
Freight Information 5345-01-117-3868
5345-01-117-3868 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 001020. A Sub NMFC of X. It has a NMFC Description of ABRASIVES:CRUDE OR LUMP. 5345-01-117-3868 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 02030 which rates the freight between FCL and LCL. 5345-01-117-3868 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5345-01-117-3868 is not classified as a special type of cargo when transported by water. 5345-01-117-3868 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
