5342-01-526-6426
Grooved Clamp Coupling
5342015266426 015266426 12491515 10662523-001
A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling
November 2023
7
Marketplace 5342-01-526-6426
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-526-6426 1+ Documents (More...)
(Identification) 1/2 NSN 5342-01-526-6426 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5342-01-526-6426 RQST NE Updated Every Day 5342-01-526-6426 RQST
Restrictions 5342-01-526-6426
5342-01-526-6426 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-526-6426
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-526-6426
- US Army (A402)
- Effective Date:
- 1 Dec 2004
- Supplementary Receivers:
- AZ
Approved Sources 5342-01-526-6426
- Part Number
- Manufacturer
- Status
- 12491515
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10662523-001
- 56161 - General Dynamics Land Systems (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5342-01-526-6426
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400
- Cross-Sectional Shape Style [AAGR]
- Grooved Retainer
- Material And Location [ANNQ]
- Rubber Bonding Wire
- Shape [SHPE]
- Oval
- Inside Diameter [AARX]
- 2.0 Inches Nominal
- Inside Length [ADJU]
- 2.0 Inches Nominal
- Inside Width [ADJT]
- 2.0 Inches Nominal

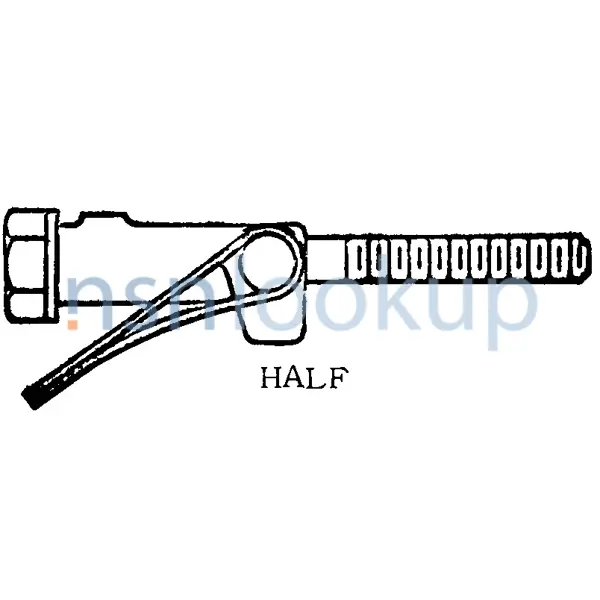

- Latch Style [AGPR]
- Half
- Segment Quantity [ALDT]
- 15
- Sealing Inner Liner [ALDW]
- Not Included
- End Item Identification [AGAV]
- Striker, Xm707
Weapon Systems (WSDC) 5342-01-526-6426
DLA Procurement Analysis 5342-01-526-6426
- Last Stock Position:
- 25 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-01-526-6426
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- A
- R
- Refer To Net Price 3471.00
- NET PRICE 3471.00
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- M8
- Armored Carriers
Light Armored Vehicle
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5342-01-526-6426
Freight Information 5342-01-526-6426
5342-01-526-6426 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5342-01-526-6426 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5342-01-526-6426 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-01-526-6426 is not classified as a special type of cargo when transported by water. 5342-01-526-6426 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
