5342-01-357-9077
Grooved Clamp Coupling
5342013579077 013579077 N4290A533S N4290A0533S
A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling
June 2023
8
Marketplace 5342-01-357-9077
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-357-9077 1+ Documents (More...)
5342-01-357-9077 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-01-357-9077
RQST NE Updated Every Day 5342-01-357-9077 RQST Updated Every Day 5342-01-357-9077 RQST NE Restrictions
Restrictions 5342-01-357-9077
5342-01-357-9077 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5342-01-357-9077
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-357-9077
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5342-01-357-9077
- Part Number
- Manufacturer
- Status
- N4290A533S
- Manufacturer
- 94581 - V I J Corp (Active)
- Primary Buy
- Primary Buy
- N4290A0533S
- 94581 - V I J Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5342-01-357-9077
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400

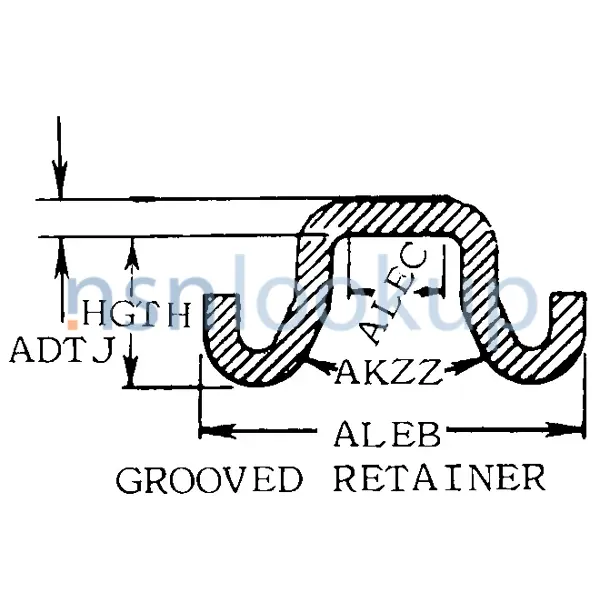

- Cross-Sectional Shape Style [AAGR]
- Grooved Retainer
- Retainer Thickness [ADTJ]
- 0.320 Inches Nominal
- Retainer Width [ALEB]
- 6.250 Inches Nominal
- Root Width [ALEC]
- 1.870 Inches Nominal
- Height [HGTH]
- 2.130 Inches Nominal
- Included Angle In Deg [AKZZ]
- 90.0
- Material And Location [ANNQ]
- Steel, Corrosion Resisting T Bolt
- Shape [SHPE]
- Round
- Inside Diameter [AARX]
- 5.330 Inches Nominal
- Segment Quantity [ALDT]
- 1
Similar Supply Items to 5342-01-357-9077
Freight Information 5342-01-357-9077
5342-01-357-9077 has freight characteristics managed by Spain.. 5342-01-357-9077 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
