5342-01-324-7609
Grooved Clamp Coupling
5342013247609 013247609 11669395-43 78VC-600MS 11669395
A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling
November 2023
12
Marketplace 5342-01-324-7609
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-324-7609 5+ Documents (More...)
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 11669395
BUY NE FedMall Updated Every Day 5342-01-324-7609 RQST NE Updated Every Day 5342-01-324-7609 RQST Updated
a day Upgrade your Account Upgrade 4730-01-496- 2738Pipe Expansion Joint4730014962738 014962738 11669395
Grooved Clamp Coupling 5342013247609 Request Subscribe to View Vendor Details... 11669395 https
-42 77-600 11669395 A deformable material which prevents the passage of matter through the joint formed
Grooved Clamp Coupling 5342013247609 a day Upgrade your Account Upgrade 5342-01-324-7609Grooved
-32 77-500 11669395 A deformable material which prevents the passage of matter through the joint formed
https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-01-324-7609 Grooved Clamp Coupling 5342013247609 a
-5 73VG-500MS 11669395 A preformed, rigid, metallic item, straight or angular having one or both ends
https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-01-324-7609 Grooved Clamp Coupling 5342013247609 a
Restrictions 5342-01-324-7609
5342-01-324-7609 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-324-7609
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-324-7609
- US Army (A919)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
Approved Sources 5342-01-324-7609
- Part Number
- Manufacturer
- Status
- 11669395-43
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 78VC-600MS
- 55996 - Dynaflex Products (Active)
- Primary Buy
- Primary Buy
- 11669395
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5342-01-324-7609
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400
- Cross-Sectional Shape Style [AAGR]
- Grooved Retainer
- Height [HGTH]
- 0.206 Inches Nominal
- Nut Type [ALDS]
- Self-Locking Hexagon
- Included Angle In Deg [AKZZ]
- 40.0
- Inside Diameter [AARX]
- 6.278 Inches Nominal

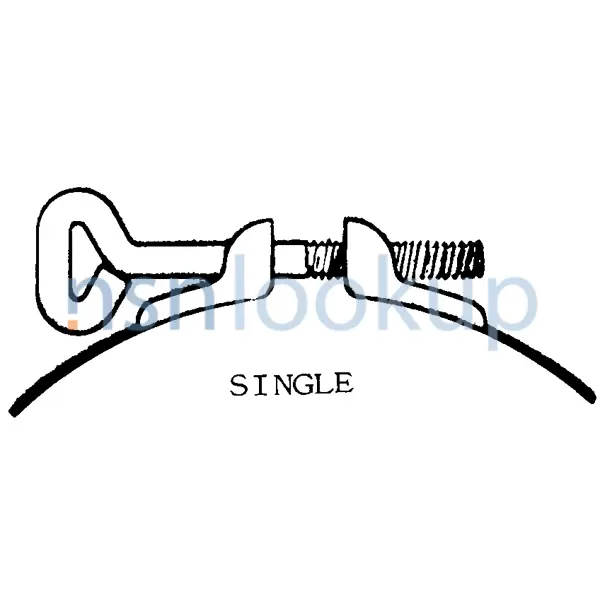

- Latch Style [AGPR]
