5342-01-317-6414

Weapon System Access Door

5342013176414 013176414 12346046

A rigid item of various shapes permanently attached to a structure, designed to provide access for inspection, service, replacement of components and/or adjustments. It is designed to be attached by means of hinges or similar devices. It may include self-closing features and have a quick release or other type latching to permit access with a minimum of effort. It may include an observation window. Excludes COVER, ACCESS and DOOR, ACCESS, UTILITY. View more Weapon System Access Door

Managed by United States

NSN Created on 3 Apr 1990

Data Last Changed
November 2023

NATO Update Count
9

NATO Data Quality

AAGR Style 29 for 5342-01-317-6414 1/2 — NSN 5342-01-317-6414 (Identification) 1/2

ABMW Style 68 for 5342-01-317-6414 2/2 — NSN 5342-01-317-6414 (Identification) 2/2

Marketplace 5342-01-317-6414

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

5342-01-317-6414 RQST NE

Restrictions 5342-01-317-6414

5342-01-317-6414 is a Weapon System Access Door that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5342-01-317-6414

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5342-01-317-6414

US Army (A919)
Effective Date:: 1 May 2005
Former MOE Rule:: A180
Supplementary Receivers:: AZ; AMC 1 AMSC G IMC Z IMCACTY AZ

US Marine Corps (MC41)
Effective Date:: 1 May 2005
Former MOE Rule:: MC04; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 1 AMSC G IMC Z IMCACTY GH

Australia (ZA01)
Effective Date:: 1 Aug 2011

Approved Sources 5342-01-317-6414

Part Number
Manufacturer
Status
12346046: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1

Datasheet 5342-01-317-6414

Characteristic
Specifications
FIIG: A531N0

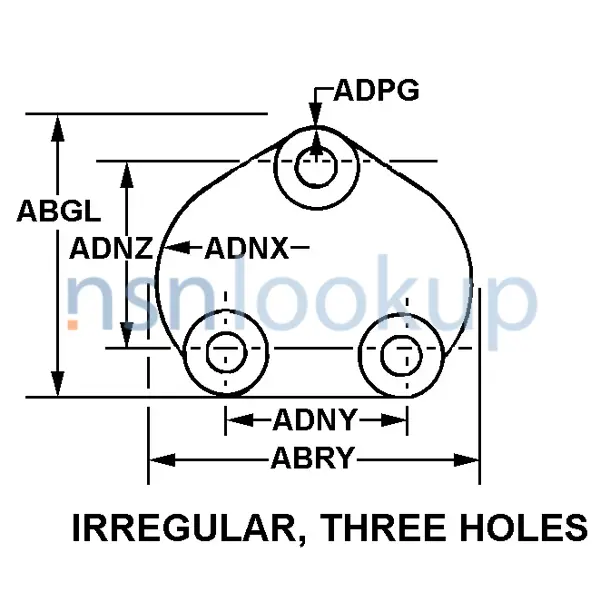

Peripheral Shape Style [ABMW]: Irregular Three Holes
Width [ABGL]: 4.690 Inches Nominal
Length [ABRY]: 6.790 Inches Nominal
Ear Radius [ADPG]: 0.050 Inches Nominal
Distance Between Holes Along Length [ADNY]: 3.650 Inches Nominal
Distance Between Holes Along Width [ADNZ]: 3.650 Inches Nominal
Cross-Sectional Shape Style [AAGR]: Flat Square Or Rectangular Rib Reinforced
Body Thickness [ADPR]: 0.090 Inches Nominal
Material [MATT]: Steel
End Item Identification [AGAV]: 2350-01-061-2445
