5342-01-264-6543
Weapon System Resilient Mount
5342012646543 012646543 12338070 9320PL0824254
An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads. View more Weapon System Resilient Mount
November 2023
13
Marketplace 5342-01-264-6543
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-264-6543 1+ Documents (More...)
United States (US) 4. 5342-01-264-6543 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5342-01-264-6543 RQST Updated Every Day 5342-01-264-6543 RQST NE Related
Restrictions 5342-01-264-6543
5342-01-264-6543 is a Weapon System Resilient Mount that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-264-6543
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-264-6543
- US Army (A919)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- US Air Force (FXGG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- FXCX
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Lithuania (WI01)
- Effective Date:
- 1 Jul 2000
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
Approved Sources 5342-01-264-6543
- Part Number
- Manufacturer
- Status
- 12338070
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 9320PL0824254
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
Datasheet 5342-01-264-6543
- Characteristic
- Specifications
- FIIG
- Specifications
- A535S0
- Distance Between Mounting Hole Centers [AFQM]
- 1.720 Inches Minimum And 1.780 Inches Maximum
- Flange Length [AFQN]
- 4.780 Inches Nominal
- Flange Mounting Hole Diameter [BXCQ]
- 0.680 Inches Nominal
- Flange Thickness [ABKU]
- 0.310 Inches Nominal
- Flange Width [AGFF]
- 2.810 Inches Nominal
- Height [HGTH]
- 2.250 Inches Nominal
- Special Features [FEAT]
- End Article Application Trk Cg Tac 5/4 4X4 We Nsn 2320-01-123-6827
- Thread Size [ABUJ]
- 3/8-24 All Threaded Portions

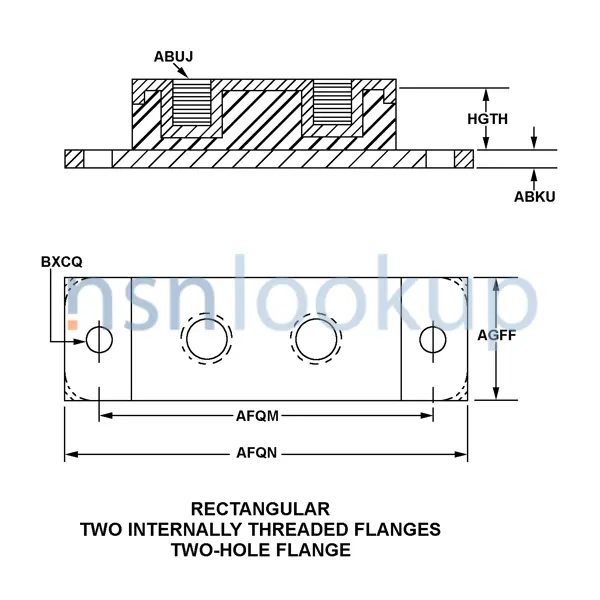

- Style Designator [STYL]
