5342-01-210-4901
Grooved Clamp Coupling
5342012104901 012104901 12313890 4404-525M 995HA-0525 400465-525 V01351HAC-0525-S6
A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling
November 2023
17
Marketplace 5342-01-210-4901
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-210-4901 2+ Documents (More...)
(Identification) 1/2 NSN 5342-01-210-4901 (Identification) 2/2 - - 1.
GROOVED 4 EA NS Request Quotation Updated Every Day 5342-01-210-4901 RQST NE Updated Every Day 5342-01
Day 5340-14-493-4531 RQST NE Related Documents https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-01-210-4901
Grooved Clamp Coupling 5342012104901 Upgrade 5342-01-210-4901Grooved Clamp Coupling5342012104901
Restrictions 5342-01-210-4901
5342-01-210-4901 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-210-4901
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-210-4901
- US Army (A919)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A187
- Supplementary Receivers:
- AZBD
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Aug 2006
- Singapore (YJ01)
- Effective Date:
- 1 Jul 1995
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
Approved Sources 5342-01-210-4901
- Part Number
- Manufacturer
- Status
- 12313890
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 4404-525M
- 00624 - Eaton Aeroquip Llc (Active)
- Primary Buy
- Primary Buy
- 400465-525
- 70210 - Honeywell International Inc. (Active)
- Original Design
- Original Design
- 995HA-0525
- 54646 - Clampco Products, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 400465-525
- 08179 - Garrett Transportation I, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- V01351HAC-0525-S6
- 54646 - Clampco Products, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5342-01-210-4901
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400
- Drilled Lockwire Hole [ASXG]
- Not Included

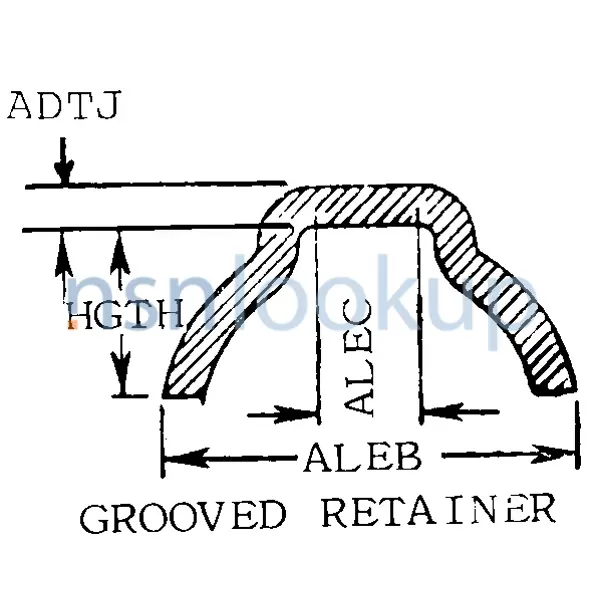

- Cross-Sectional Shape Style [AAGR]
- Grooved Retainer
- Nut Type [ALDS]
- Plain Hexagon
- Inside Diameter [AARX]
- 4.625 Inches Nominal
- Latch Style [AGPR]
- Single
- Retainer Width [ALEB]
- 0.625 Inches Nominal
- Root Width [ALEC]
- 0.262 Inches Nominal
- Sealing Inner Liner [ALDW]
- Not Included
- Shape [SHPE]
- Round
Weapon Systems (WSDC) 5342-01-210-4901
DLA Procurement Analysis 5342-01-210-4901
- Last Stock Position:
- 415 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-01-210-4901
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5342-01-210-4901
Freight Information 5342-01-210-4901
5342-01-210-4901 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5342-01-210-4901 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5342-01-210-4901 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-01-210-4901 is not classified as a special type of cargo when transported by water. 5342-01-210-4901 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5342-01-210-4901
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Any Suitable Container
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Container
Procurement History 5342-01-210-4901 10 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A723PC567
- 14 Jul 2023
- Subscribe
- 250
- Subscribe
- Subscribe
- Subscribe
- SPE4A723P7811
- 20 Mar 2023
- Subscribe
- 250
- Subscribe
- Subscribe
- Subscribe
- SPE4A619F6905
- 21 Dec 2018
- Subscribe
- 102
- Subscribe
- Subscribe
- Subscribe
- SPE4A618F8159
- 06 Feb 2018
- Subscribe
- 141
- Subscribe
- Subscribe
- Subscribe
- SPE4A618F5151
- 12 Dec 2017
- Subscribe
- 102
- Subscribe
- Subscribe
- Subscribe
- SPE4A617PJ640
- 01 Aug 2017
- Subscribe
- 656
- Subscribe
- Subscribe
- Subscribe
- SPE4A617PD248
- 10 May 2017
- Subscribe
- 279
- Subscribe
- Subscribe
- Subscribe
- SPE4A617P5716
- 13 Jan 2017
- Subscribe
- 198
- Subscribe
- Subscribe
- Subscribe
- SPE4A614VK233
- 06 Aug 2014
- Subscribe
- 379
- Subscribe
- Subscribe
- Subscribe
- SPM5E213V2984
- 17 Apr 2013
- Subscribe
- 251
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5342-01-210-4901 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
