5342-01-203-0131

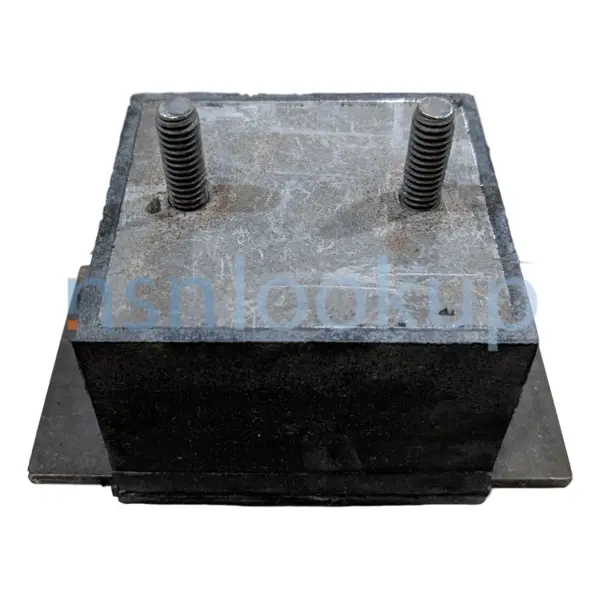

Weapon System Resilient Mount
5342012030131 012030131 10926261
An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads. View more Weapon System Resilient Mount
August 2023
12
Marketplace 5342-01-203-0131
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-203-0131 5+ Documents (More...)
Photo 1/2 NSN 5342-01-203-0131 (Identification) 2/2 - - 1.
NE Updated Every Day 5342-01-203-0131 RQST Updated Every Day 5342-01-203-0131 RQST NE Related Documents
Restrictions 5342-01-203-0131
5342-01-203-0131 is a Weapon System Resilient Mount that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-203-0131
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-203-0131
- US Army (A919)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZBF
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
Approved Sources 5342-01-203-0131
- Part Number
- Manufacturer
- Status
- 10926261
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5342-01-203-0131
- Characteristic
- Specifications
- FIIG
- Specifications
- A535S0
- Style Designator [STYL]
- Rectangular W/Two Threaded Studs Two-Hole Flange
- Flange Thickness [ABKU]
- 0.190 Inches Nominal
- Distance Between Mounting Hole Centers [AFQM]
- 3.880 Inches Nominal
- Flange Length [AFQN]
- 4.750 Inches Nominal
- Flange Width [AGFF]
- 2.500 Inches Nominal
- Flange Mounting Hole Diameter [BXCQ]
- 0.380 Inches Nominal
- Height [HGTH]
- 2.060 Inches Nominal
- Thread Size [ABUJ]
- 5/16-18 All Threaded Portions
