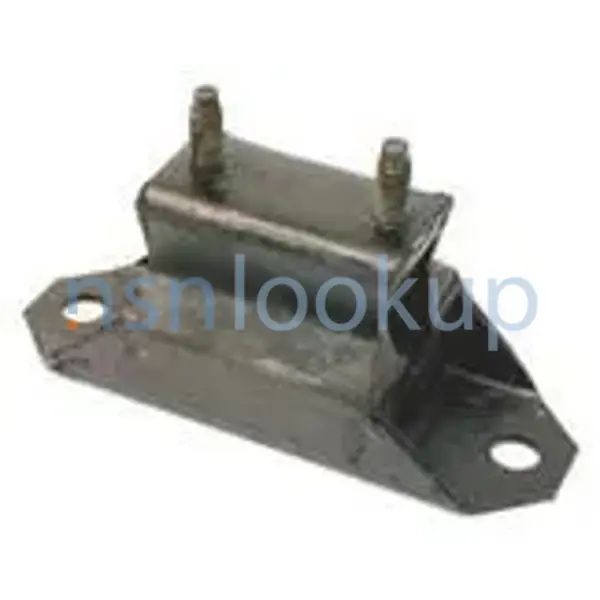

5342-01-190-7735
Weapon System Resilient Mount
5342011907735 011907735 12339178 5568332 5589134 5340011907735 9320PL0647695
An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads. View more Weapon System Resilient Mount
November 2023
24
Marketplace 5342-01-190-7735
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5342-01-190-7735 5+ Documents (More...)
United States (US) 4. 5342-01-190-7735 Marketplace Restrictions Approved Sources Datasheet Management
3 EA NS Request Quotation Subscribe to View Vendor Details... 12339178 MOUNT,RESILIENT,WEAPON SYSTEM
Restrictions 5342-01-190-7735
5342-01-190-7735 is a Weapon System Resilient Mount that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-190-7735
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-190-7735
- US Army (A919)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZBS
- US Air Force (FXGG)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- FXCX
- US Marine Corps (MC41)
- Effective Date:
- 1 Sep 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2004
- Slovenia (WL01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Oct 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Canada (ZC01)
- Effective Date:
- 1 May 2010
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Sep 1996
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Jun 2006
Approved Sources 5342-01-190-7735
- Part Number
- Manufacturer
- Status
- 12339178
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5568332
- 34623 - Am General Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5589134
- 34623 - Am General Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5340011907735
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9320PL0647695
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 5340011907735
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5342-01-190-7735
- Characteristic
- Specifications
- FIIG
- Specifications
- A535S0
- Distance Between Mounting Stud Centers [AGTN]
- 5.555 Inches Minimum And 5.557 Inches Maximum
- Flange Length [AFQN]
- 6.796 Inches Nominal
- Flange Mounting Hole Diameter [BXCQ]
- 0.526 Inches Minimum And 0.546 Inches Maximum
- Height [HGTH]
- 2.740 Inches Nominal
- Nonmetallic Hardness Rating [AASF]
- 45.0 Minimum Shore Durometer A And 55.0 Maximum Shore Durometer A
- Thread Size [ABUJ]
- 3/8-16 All Threaded Portions
- Stud Length [AGXF]
- 1.030 Inches Nominal All Threaded Stud
Weapon Systems (WSDC) 5342-01-190-7735
DLA Procurement Analysis 5342-01-190-7735
- Last Stock Position:
- 178 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-01-190-7735
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 5342-01-190-7735
Freight Information 5342-01-190-7735
5342-01-190-7735 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 5342-01-190-7735 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5342-01-190-7735 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-01-190-7735 is not classified as a special type of cargo when transported by water. 5342-01-190-7735 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5342-01-190-7735
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- ASTM - D5118, Fiberboard Box
- Type I, shelf life
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 5342-01-190-7735 9 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A423F0504
- 07 Sep 2023
- Subscribe
- 18
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F8229
- 16 May 2023
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F5452
- 28 Apr 2023
- Subscribe
- 27
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F3924
- 25 Jan 2023
- Subscribe
- 45
- Subscribe
- Subscribe
- Subscribe
- SPE4A723F3924
- 25 Jan 2023
- Subscribe
- 45
- Subscribe
- Subscribe
- Subscribe
- SPE4A722PA708
- 24 May 2022
- Subscribe
- 102
- Subscribe
- Subscribe
- Subscribe
- SPE4A622PF591
- 22 Mar 2022
- Subscribe
- 278
- Subscribe
- Subscribe
- Subscribe
- SPE4A122P0388
- 26 Nov 2021
- Subscribe
- 97
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F8166
- 17 Feb 2021
- Subscribe
- 117
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5342-01-190-7735 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
