5342-01-180-2630

Grooved Clamp Coupling

5342011802630 011802630 7M765-32C 14J12-32C 14J23-32C W901K32CE W991BK32CE 10117803

A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling

Managed by United States

NSN Created on 25 May 1984

Data Last Changed
November 2023

NATO Update Count
23

NATO Data Quality

AAGR Style 3A for 5342-01-180-2630 1/2 — NSN 5342-01-180-2630 (Identification) 1/2

AGPR Style 60 for 5342-01-180-2630 2/2 — NSN 5342-01-180-2630 (Identification) 2/2

Marketplace 5342-01-180-2630

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

14J12-32C COUPLING,CLAMP,GROOVED 1 EA NS

Subscribe to View Vendor Details...

5342-01-180-2630 COUPLING,CLAMP,GROOVED RQST NS

Updated Every Day

5342-01-180-2630 RQST NE

Updated Every Day

5342-01-180-2630 RQST

Updated Every Day

5342-01-180-2630 RQST NE

Restrictions 5342-01-180-2630

5342-01-180-2630 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5342-01-180-2630

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5342-01-180-2630

US Air Force (FXGG)
Effective Date:: 1 May 2006
Former MOE Rule:: FXCX; AMC 1 AMSC B IMC Z IMCACTY SX

US Navy (N9BG)
Effective Date:: 1 May 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKE; AMC 1 AMSC B IMC Z IMCACTY KE

Finland (WF01)
Effective Date:: 1 Feb 2012

Spain (YB01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Aug 1997

Australia (ZA01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jul 1997

Approved Sources 5342-01-180-2630

Part Number
Manufacturer
Status
7M765-32C: 76301 - The Boeing Company (Active); Source Control; RNCC 1 RNVC 2 DAC 1
14J12-32C: 24984 - Hydraflow (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
14J23-32C: 24984 - Hydraflow (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 1
W901K32CE: 79326 - Transdigm Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
W991BK32CE: 79326 - Transdigm Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
10117803: A486G - Nimikkeistokeskus Ncb Finland (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5342-01-180-2630

Characteristic
Specifications
FIIG: A25400

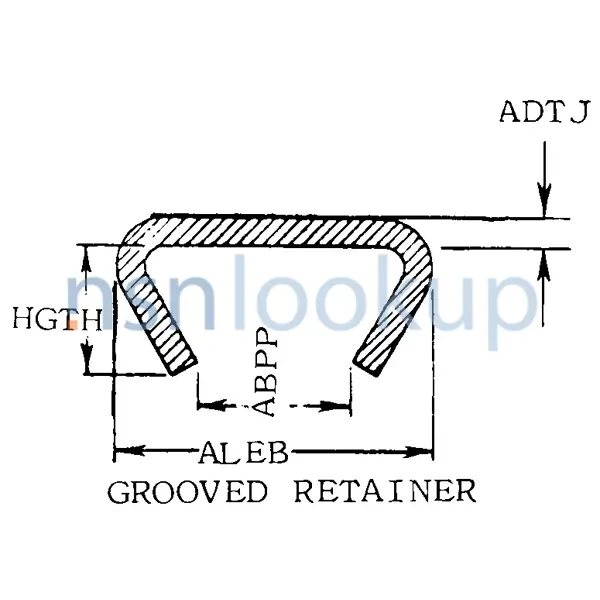

Cross-Sectional Shape Style [AAGR]: Grooved Retainer
Height [HGTH]: 0.070 Inches Nominal
Opening Width [ABPP]: 1.009 Inches Nominal
Inside Diameter [AARX]: 2.000 Inches Nominal

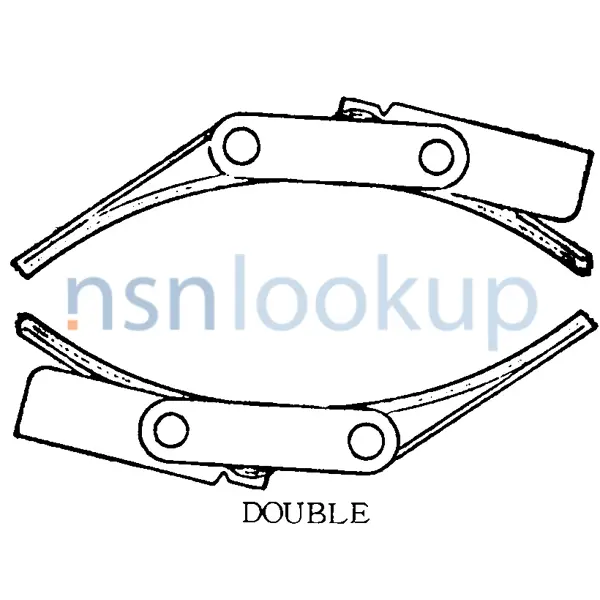

Latch Style [AGPR]: Double
Material And Location [ANNQ]: Steel, Corrosion Resisting Overall
Retainer Width [ALEB]: 1.079 Inches Nominal
Retainer Thickness [ADTJ]: 0.030 Inches Nominal
Sealing Inner Liner [ALDW]: Included
Segment Quantity [ALDT]: 2
Shape [SHPE]: Round
