5342-01-162-6792
Weapon System Resilient Mount
5342011626792 011626792 12300112-1 J-11729-177 96348-R01 VBM-5014-127423
An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads. View more Weapon System Resilient Mount
November 2023
10
Marketplace 5342-01-162-6792
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-162-6792 5+ Documents (More...)
J-11729-177 MOUNT 16 EA NS Request Quotation Subscribe to View Vendor Details... 12300112-1 MOUNT,RESILIENT
/fsg-53/fsc-5342/us 5342-01-162-6792 Weapon System Resilient Mount 5342011626792 12300112-1J-11729-17796348
Weapon System Resilient Mount 5342011626792 Upgrade 5342-01-162-6792Weapon System Resilient Mount5342011626792
011626792 12300112-1 J-11729-177 96348 RNCC 3 RNVC 2 DAC 3 J-11729-177 76005 - Lord Corporation (Active
53/fsc-5342/us 5342-01-162-6792 Weapon System Resilient Mount 5342011626792 Upgrade your Account Upgrade
5342-01-162-6792Weapon System Resilient Mount5342011626792 011626792 12300112 J-11729-177 MOUNT 16 EA
Weapon System Resilient Mount 5342011626792 162-6792Weapon System Resilient Mount5342011626792
011626792 12300112-1 J-11729-177 96348-R01 VBM-5014-127423 Branched Electrical Power Cable Assembly 6150
Weapon System Resilient Mount 5342011626792 Upgrade 5342-01-162-6792Weapon System Resilient Mount5342011626792
011626792 12300112-1 J-11729-177 96348 Branched Electrical Power Cable Assembly Branched Electrical
Restrictions 5342-01-162-6792
5342-01-162-6792 is a Weapon System Resilient Mount that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-162-6792
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-162-6792
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZCNBF
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
Approved Sources 5342-01-162-6792
- Part Number
- Manufacturer
- Status
- 12300112-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- J-11729-177
- 9J509 - Lord Corporation (Active)
- Primary Buy
- Primary Buy
- J-11729-177
- 76005 - Lord Corporation (Active)
- Primary Buy
- Primary Buy
- 96348-R01
- 38490 - Liftking Manufacturing Corp (Active)
- Secondary Buy
- Secondary Buy
- VBM-5014-127423
- 76385 - Minor Rubber Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete

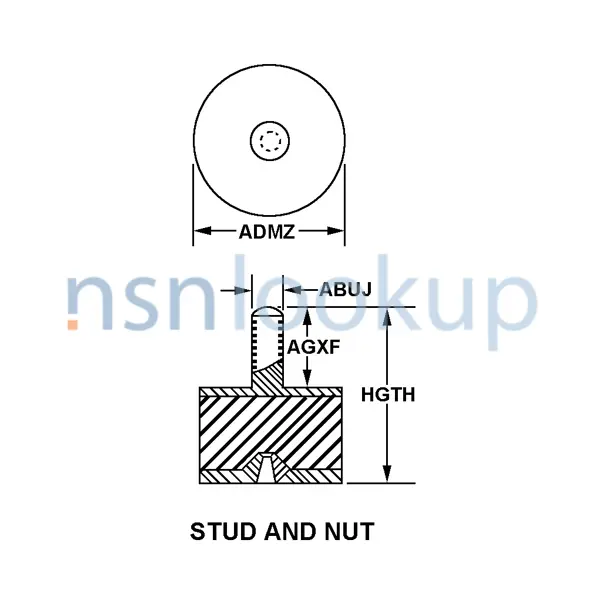

Datasheet 5342-01-162-6792
- Characteristic
- Specifications
- FIIG
- Specifications
- A535S0
- Height [HGTH]
- 1.750 Inches Nominal
- Material [MATT]
- Steel Nut
- Material [MATT]
- Steel Stud
- Maximum Load Rating [AYXK]
- 60.0 Pounds
- Major Outside Diameter [ADMZ]
- 1.500 Inches Nominal
- Special Features [FEAT]
- Used On Bradley
- Thread Size [ABUJ]
- 3/8-16 All Threaded Portions
- Stud Length [AGXF]
- 0.750 Inches Nominal All Threaded Stud
- Style Designator [STYL]
- Stud And Nut
Weapon Systems (WSDC) 5342-01-162-6792
DLA Procurement Analysis 5342-01-162-6792
- Last Stock Position:
- 168 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-01-162-6792
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
NATO Stock Numbers Related to 5342-01-162-6792
Freight Information 5342-01-162-6792
5342-01-162-6792 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 5342-01-162-6792 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-01-162-6792 is not classified as a special type of cargo when transported by water. 5342-01-162-6792 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5342-01-162-6792
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 5342-01-162-6792 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A722PB444
- 09 Jun 2022
- Subscribe
- 148
- Subscribe
- Subscribe
- Subscribe
- SPE4A621PQ859
- 28 Jul 2021
- Subscribe
- 138
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V2043
- 06 Dec 2017
- Subscribe
- 370
- Subscribe
- Subscribe
- Subscribe
- SPE4A415V3135
- 20 Nov 2014
- Subscribe
- 628
- Subscribe
- Subscribe
- Subscribe
- SPE4A414VC303
- 16 Apr 2014
- Subscribe
- 133
- Subscribe
- Subscribe
- Subscribe
- SPE4A414V6930
- 17 Jan 2014
- Subscribe
- 45
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5342-01-162-6792 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
