5342-01-106-5488
Grooved Clamp Coupling
5342011065488 011065488 11609348-11
A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling
November 2023
8
Marketplace 5342-01-106-5488
Request a Quotation from participating marketplace vendors
Related Documents 5342-01-106-5488 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5342-01-106-5488 RQST NE Updated Every Day 5342-01-106-5488 RQST
Updated Every Day 5342-01-106-5488 RQST NE Related Documents 5342-01-106-5488 1+ Documents ( More...
Restrictions 5342-01-106-5488
5342-01-106-5488 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-01-106-5488
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-01-106-5488
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZCTCLBFBD
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXCX
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
Approved Sources 5342-01-106-5488
- Part Number
- Manufacturer
- Status
- 11609348-11
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5342-01-106-5488
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400
- Cross-Sectional Shape Style [AAGR]
- Grooved Retainer
- Height [HGTH]
- 0.281 Inches Nominal
- Included Angle In Deg [AKZZ]
- 40.0
- Inside Diameter [AARX]
- 4.278 Inches Nominal

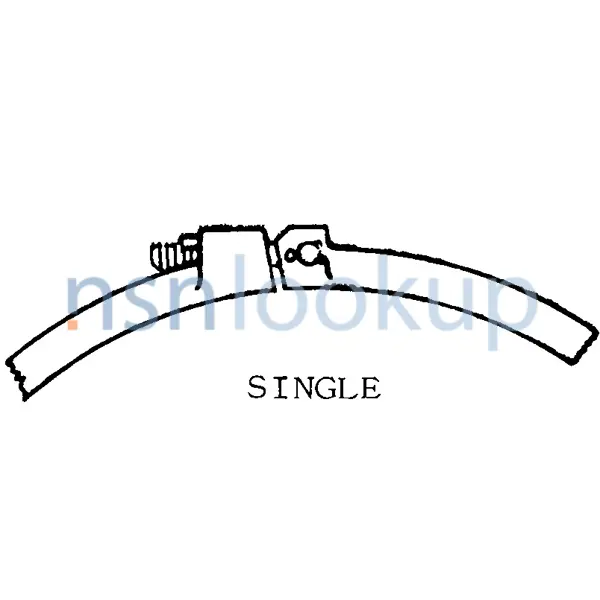

- Latch Style [AGPR]
- Single
- Material And Location [ANNQ]
- Steel Qq-S-766 Cl 301 Overall Or Steel Qq-S-766 Cl 302 Overall Or Steel J405 Aisi 301 Or Steel J405 Aisi 302 Overall
- Retainer Width [ALEB]
- 0.719 Inches Minimum And 0.812 Inches Maximum
- Retainer Thickness [ADTJ]
- 0.062 Inches Nominal
- Root Width [ALEC]
- 0.207 Inches Nominal
- Sealing Inner Liner [ALDW]
- Not Included
- Segment Quantity [ALDT]
- 1
- Shape [SHPE]
- Round
- Surface Treatment And Location [ANNR]
- Paint,Primer Tt-P-664 Overall Or Paint,Primer Mil-P-14553 Overall
