5342-00-881-1719

Grooved Clamp Coupling

5342008811719 008811719 T1580S3A 755090-3 T158053 55165A T1580S3 5342PL0821116

A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
November 2023

NATO Update Count
59

NATO Data Quality

AAGR Style 1 for 5342-00-881-1719 1/2 — NSN 5342-00-881-1719 (Identification) 1/2

AGPR Style 58 for 5342-00-881-1719 2/2 — NSN 5342-00-881-1719 (Identification) 2/2

Marketplace 5342-00-881-1719

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

A1324 COUPLING,CLAMP,GROOVED 1400 EA NS

Subscribe to View Vendor Details...

755090-3 COUPLING,CLAMP,GROOVED 1 EA NS

Subscribe to View Vendor Details...

J228P012 COUPLING,CLAMP,GROOVED 56 EA NS

Subscribe to View Vendor Details...

A-1324 COUPLING,CLAMP,GROOVED 2 EA NS

Subscribe to View Vendor Details...

A1324 COUPLING,CLAMP,GROOVED 3 EA NS

Subscribe to View Vendor Details...

55165A COUPLING,CLAMP,GROOVED 4 EA NS

Subscribe to View Vendor Details...

J228P012 COUPLING,CLAMP,GROOVED 99 EA NS

Subscribe to View Vendor Details...

T1580S3A COUPLING,CLAMP,GROOVED 1 EA NS

T1580S3 COUPLING,CLAMP,GROOVED 6 EA NS

Subscribe to View Vendor Details...

T1580S3A COUPLING,CLAMP,GROOVED 5 EA NS

T1580S3 COUPLING,CLAMP,GROOVED 2 EA NS

55165A COUPLING,CLAMP,GROOVED 2 EA NS

755090-3 COUPLING,CLAMP,GROOVED 5 EA NS

Subscribe to View Vendor Details...

A1324 COUPLING,CLAMP,GROOVED 100 EA NS

Subscribe to View Vendor Details...

55165A COUPLING,CLAMP,GROOVED 1 EA NS

Updated Every Day

5342-00-881-1719 RQST NE

Updated Every Day

5342-00-881-1719 RQST

Updated Every Day

5342-00-881-1719 RQST NE

Restrictions 5342-00-881-1719

5342-00-881-1719 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 5342-00-881-1719

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5342-00-881-1719

US Coast Guard (C911)
Effective Date:: 1 May 2006
Former MOE Rule:: C006; AMC 1 AMSC C

US Air Force (FXGG)
Effective Date:: 1 May 2006
Former MOE Rule:: FXCX; AMC 1 AMSC C IMC Z IMCACTY SX

US Navy (N9BG)
Effective Date:: 1 May 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKE; AMC 1 AMSC C IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Nov 2006

Brazil (YA01)
Effective Date:: 1 Oct 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 May 2006

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

United Kingdom (ZK01)
Effective Date:: 1 Apr 1991

Philippines (ZM01)
Effective Date:: 1 Feb 2015

Netherlands (ZN01)
Effective Date:: 1 Oct 2007

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 2008

Turkey (ZW01)
Effective Date:: 1 Nov 2005

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Jan 2014

Approved Sources 5342-00-881-1719

Part Number
Manufacturer
Status
755090-3: 94581 - V I J Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
T1580S3A: 94581 - V I J Corp (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 1
755090-3: 9S754 - Huntington Valley Industries, Inc. (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
T158053: 94581 - V I J Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
T1580S3A: 43002 - National Utilities Co (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 1
755090-3: 8W928 - Eaton Aeroquip Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
55165A: 8W928 - Eaton Aeroquip Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
T1580S3: 94581 - V I J Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5342PL0821116: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
755090-3: 98897 - Lockheed Martin Corp (Active); Vendor Drawing; RNCC 7 RNVC 2 DAC 5
55165A: 00624 - Eaton Aeroquip Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5

Datasheet 5342-00-881-1719

Characteristic
Specifications
FIIG: A25400
Cross-Sectional Shape Style [AAGR]: Grooved Retainer
Height [HGTH]: 0.294 Inches Nominal
Nut Type [ALDS]: Trunnion Nut
Included Angle In Deg [AKZZ]: 40.0
Inside Diameter [AARX]: 18.603 Inches Nominal

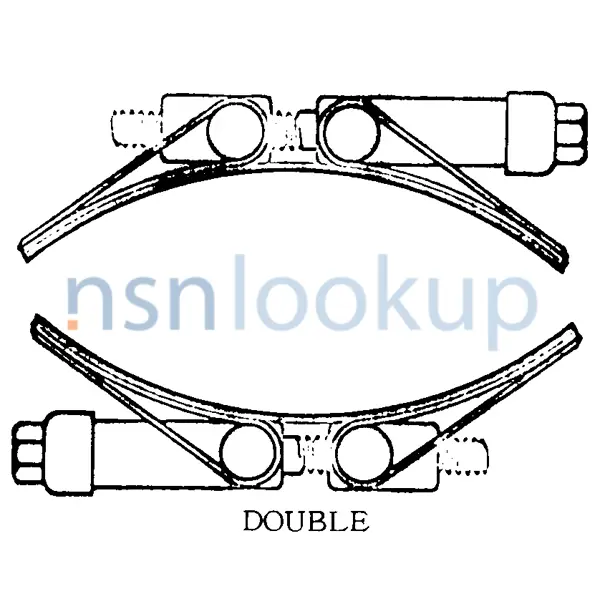

Latch Style [AGPR]: Double
