5342-00-849-3357
Weapon System Resilient Mount
5342008493357 008493357 102486 J2927-1-4
An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads. View more Weapon System Resilient Mount
November 2023
12
Marketplace 5342-00-849-3357
Request a Quotation from participating marketplace vendors
Related Documents 5342-00-849-3357 5+ Documents (More...)
14 EA NS Request Quotation Updated Every Day 102486 RQST NE Updated Every Day 5342-00-849-3357 RQST
NE Updated Every Day 5342-00-849-3357 RQST Updated Every Day 5342-00-849-3357 RQST NE Related Documents
/fsg-61/fsc-6105/uk
fsc-6105/uk 6105-99-605-8437 Electrical Rotating Equipment End Bell Bell6105996058437 99605843700-102486
Approved Sources 6105-99-605-8437 Part NumberManufacturerStatus00 00-102486 your web browser . 6105-
//www.nsnlookup.com /fsg-59/fsc-5950/us 5950-01-006-0355 Pulse Transformer 5950010060355010060355 102486
Approved Sources 6105 00-102486 your web browser . 6105-99-605-8437Electrical Rotating Equipment End
Weapon System Resilient Mount 5342008493357 Upgrade your Account Upgrade 5342-00-849-3357Weapon
System Resilient Mount5342008493357 008493357 102486 J2927 J2927-1-4 MOUNT,RESILIENT,WEAPON SYSTEM 6
web browser . 2815-14-289-9492Overspeed Trip Assembly2815142899492 142899492 02459900500 024599005 102486
Approved Sources 6105-99-605-8437 Part NumberManufacturerStatus00 Part NumberManufacturerStatus00-102486
Restrictions 5342-00-849-3357
5342-00-849-3357 is a Weapon System Resilient Mount that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5342-00-849-3357
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-00-849-3357
- US Coast Guard (C911)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- C006
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Malaysia (YW01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5342-00-849-3357
- Part Number
- Manufacturer
- Status
- 102486
- Manufacturer
- 15434 - Cummins Inc. (Active)
- Source Control
- Source Control
- J2927-1-4
- 76005 - Lord Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5342-00-849-3357
- Characteristic
- Specifications
- FIIG
- Specifications
- A535S0
- Flange Thickness [ABKU]
- 0.060 Inches Nominal
- Height [HGTH]
- 0.500 Inches Nominal
- Material [MATT]
- Steel Overall
- Nondefinitive Spec/Std Data [ZZZT]
- 102486 Part
- Inside Diameter [AARX]
- 0.220 Inches Nominal
- Major Outside Diameter [ADMZ]
- 1.000 Inches Nominal

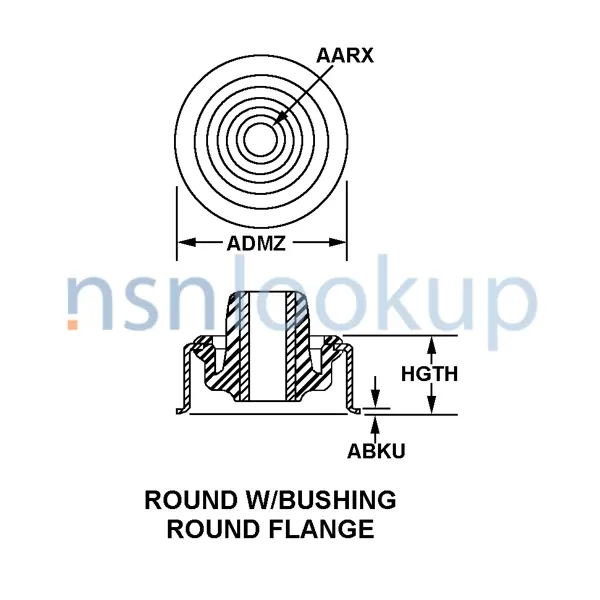

- Style Designator [STYL]
- Round W/Bushing Round Flange
- Surface Treatment [SFTT]
- Cadmium Overall
Weapon Systems (WSDC) 5342-00-849-3357
DLA Procurement Analysis 5342-00-849-3357
- Last Stock Position:
- 131 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-00-849-3357
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5342-00-849-3357
Freight Information 5342-00-849-3357
5342-00-849-3357 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093600. A Sub NMFC of X. It has a NMFC Description of BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC. 5342-00-849-3357 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 5342-00-849-3357 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-00-849-3357 is not classified as a special type of cargo when transported by water. 5342-00-849-3357 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5342-00-849-3357
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5342-00-849-3357 3 Records
Contracting Technical Data File (CTDF) 5342-00-849-3357 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
