5342-00-796-2335
Grooved Clamp Coupling
5342007962335 007962335 7962335 512106E-238-ZA 12641 U4201-237-SS 15516-238SS 15516-238SH 5340007962335
A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling
November 2023
28
Marketplace 5342-00-796-2335
Request a Quotation from participating marketplace vendors
Related Documents 5342-00-796-2335 5+ Documents (More...)

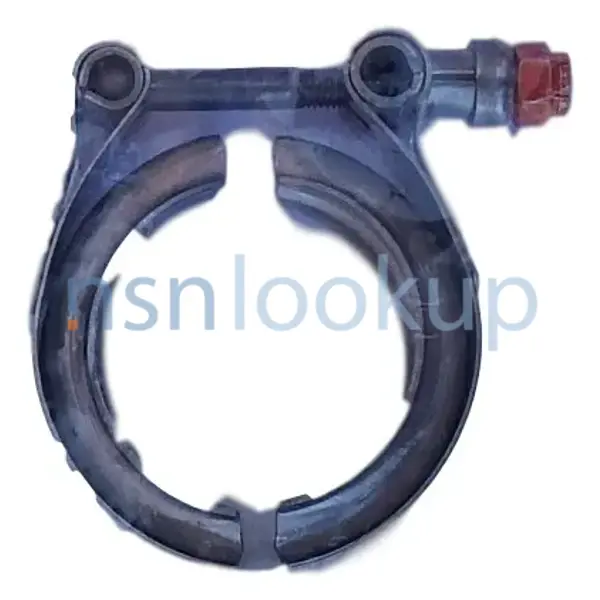

Photo 1/3 NSN 5342-00-796-2335 (Identification) 2/3 NSN 5342-00-796-2335 (Identification) 3/3 -
U4201-237-SS COUPLING,CLAMP,GROOVED 1 EA NS Request Quotation Subscribe to View Vendor Details... 12641
www.nsnlookup.com /fsg-58/fsc-5820/it 5820-15-125-9755 Targhetta Volume 5820151259755151259755 8420-12641
enable JavaScript in your web browser . 5820-15-125-9755Targhetta Volume5820151259755 1512597558420-12641
Restrictions 5342-00-796-2335
5342-00-796-2335 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5342-00-796-2335
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-00-796-2335
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- Supplementary Receivers:
- AZ
- US Air Force (FXGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FXCX
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- MC04
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Oct 2009
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jan 2003
Approved Sources 5342-00-796-2335
- Part Number
- Manufacturer
- Status
- 7962335
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 512106E-238-ZA
- 14242 - Voss Industries, Llc (Active)
- Primary Buy
- Primary Buy
- 12641
- 54646 - Clampco Products, Inc. (Active)
- Primary Buy
- Primary Buy
- U4201-237-SS
- 94581 - V I J Corp (Active)
- Primary Buy
- Primary Buy
- 15516-238SS
- 8W928 - Eaton Aeroquip Llc (Replaced)
- Original Design
- Original Design
- 15516-238SH
- 8W928 - Eaton Aeroquip Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 5340007962335
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 15516-238SH
- 00624 - Eaton Aeroquip Llc (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5342-00-796-2335
- Characteristic
- Specifications
- FIIG
- Specifications
- A25400
- Band Thickness [ALED]
- 0.025 Inches Nominal
- Band Width [ALEE]
- 0.750 Inches Nominal
- Cross-Sectional Shape Style [AAGR]
- Grooved Retainer
- Height [HGTH]
- 0.281 Inches Nominal
- Nut Type [ALDS]
- Self-Locking Hexagon
- Included Angle In Deg [AKZZ]
- 40.0
- Inside Diameter [AARX]
- 2.500 Inches Nominal
- Latch Style [AGPR]
- Single
- Material And Location [ANNQ]
- Steel Overall
- Retainer Thickness [ADTJ]
- 0.050 Inches Nominal
- Retainer Width [ALEB]
- 0.719 Inches Nominal
- Root Width [ALEC]
- 0.212 Inches Nominal
- Sealing Inner Liner [ALDW]
- Not Included
- Segment Quantity [ALDT]
- 2
- Shape [SHPE]
- Round
Weapon Systems (WSDC) 5342-00-796-2335
