5342-00-702-1665
Corrosion Preventive Anode
5342007021665 007021665 MIL-A-18001 2CW2300MPC629 MIL-A-18001LCLASS1TYPEZEPC CLASS1TYPEZEPSTYLEC MIL-A-18001KCLASS1TYPEZEPC 2601-1365PC6
An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium. View more Corrosion Preventive Anode
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
September 2023
September 2023
NATO Update Count
8
8
NATO Data Quality
Marketplace 5342-00-702-1665
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5342-00-702-1665 5+ Documents (More...)
MIL-A-18001 2CW2300MPC629 MIL-A-18001LCLASS1TYPEZEPC CLASS1TYPEZEPSTYLEC MIL-A-18001KCLASS1TYPEZEPC
2601-1365PC6 An item which sacrificially corrodes when coupled to a more noble metal in a conducting
United States (US) 4. 5342-00-702-1665 Marketplace Restrictions Approved Sources Datasheet Management
2601-1365PC6 An item which sacrificially corrodes when coupled to a more noble metal in a conducting
United States (US) 4. 5342-00-702-1665 Marketplace Restrictions Approved Sources Datasheet Management
Documents 4730-00-777-3546 2+ Documents ( More... https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-00-702-1665
Corrosion Preventive Anode 5342007021665 18001 2CW2300MPC629 MIL-A-18001LCLASS1TYPEZEPC CLASS1TYPEZEPSTYLEC
MIL-A-18001KCLASS1TYPEZEPC 2601-1365PC6 View Vendor Details... 5342-00-702-1665 ANODE,CORROSION PREVENTIVE
Corrosion Preventive Anode 5342007021665 18001 2CW2300MPC629 MIL-A-18001LCLASS1TYPEZEPC CLASS1TYPEZEPSTYLEC
MIL-A-18001KCLASS1TYPEZEPC 2601-1365PC6 View Vendor Details... 5342-00-702-1665 ANODE,CORROSION PREVENTIVE
Upgrade your Account Upgrade 5342-00-725-3999Corrosion Preventive Anode5342007253999 007253999 MIL-A-18001
5342007253997 Account Upgrade 5342-00-664-0531Corrosion Preventive Anode5342006640531 006640531 MIL-A-18001
Corrosion Preventive Anode 5342007021665 Upgrade your Account Upgrade 5342-00-702-1665Corrosion
5342007253997 Account Upgrade 5342-00-664-0531Corrosion Preventive Anode5342006640531 006640531 MIL-A-18001
Corrosion Preventive Anode 5342007021665 Upgrade your Account Upgrade 5342-00-702-1665Corrosion
Upgrade your Account Upgrade 5342-01-356-6386Corrosion Preventive Anode5342013566386 013566386 MIL-A-18001
Upgrade your Account Upgrade 5340-01-201-2439Corrosion Preventive Anode5340012012439 012012439 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6381Corrosion Preventive Anode5342013566381 013566381 MIL-A-18001
Upgrade your Account Upgrade 5340-01-201-2439Corrosion Preventive Anode5340012012439 012012439 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6381Corrosion Preventive Anode5342013566381 013566381 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-8260Corrosion Preventive Anode5342013568260 013568260 MIL-A-18001
Upgrade your Account Upgrade 5342-01-361-2565Corrosion Preventive Anode5342013612565 013612565 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6252Corrosion Preventive Anode5342013566252 013566252 MIL-A-18001
Upgrade your Account Upgrade 5342-01-361-2565Corrosion Preventive Anode5342013612565 013612565 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6252Corrosion Preventive Anode5342013566252 013566252 MIL-A-18001
Restrictions 5342-00-702-1665
5342-00-702-1665 is a Corrosion Preventive Anode that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.
Import and Export 5342-00-702-1665
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-00-702-1665
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHXHD
- Spain (YB01)
- Effective Date:
- 1 May 2008
Approved Sources 5342-00-702-1665
- Part Number
- Manufacturer
- Status
- MIL-A-18001LCLASS1TYPEZEPC
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-A-18001
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- CLASS1TYPEZEPSTYLEC
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-A-18001KCLASS1TYPEZEPC
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2601-1365PC6
- 96169 - Electric Boat Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 2CW2300MPC629
- 61671 - Fernsten Industries Co (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5342-00-702-1665
- Characteristic
- Specifications
- FIIG
- Specifications
- A25200
- Distance From Edge To Center Of Core Hole [AKMP]
- 4.312 Inches Nominal
- Center To Center Distance Between Holes [ABRF]
- 6.375 Inches Nominal
- Construction [ARQS]
- Solid
- Core Diameter [AKMH]
- 0.500 Inches Nominal
- Core Length [AKMJ]
- 1.125 Inches Nominal
- Core Surface Treatment [AKMF]
- Cadmium And Zinc
- Hole Center To Base Distance [AJHM]
- 3.062 Inches Nominal
- Mounting Method [ADJH]
- Pipe
- Nondefinitive Spec/Std Data [ZZZT]
- 1 Class And Zep Type And C Style
- Outside Diameter [ABKV]
- 15.000 Inches Nominal
- Insert Quantity [ADZM]
- 2
- Material And Location [ANNQ]
- Zinc, Mil-A-18001, Class 1, Type Zep, Style C Anode And Steel Core
- Radius [ABGG]
- 7.500 Inches Nominal
- Weight [WGHT]
- 23.0 Pounds

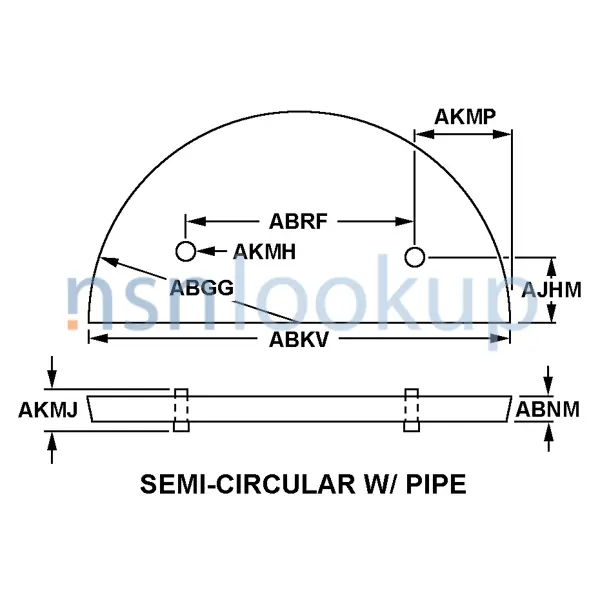

- Style Designator [STYL]
- Semi-Circular With Pipe
- Thickness [ABNM]
- 1.000 Inches Nominal
Weapon Systems (WSDC) 5342-00-702-1665
DLA Procurement Analysis 5342-00-702-1665
- Last Stock Position:
- 79 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-00-702-1665
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5342-00-702-1665
Freight Information 5342-00-702-1665
5342-00-702-1665 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 110050. A Sub NMFC of X. It has a NMFC Description of LEAD: ANODES IN PKGS;TL LOOSE. 5342-00-702-1665 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 56170 which rates the freight between FCL and LCL. 5342-00-702-1665 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-00-702-1665 is not classified as a special type of cargo when transported by water. 5342-00-702-1665 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
