5342-00-693-2433

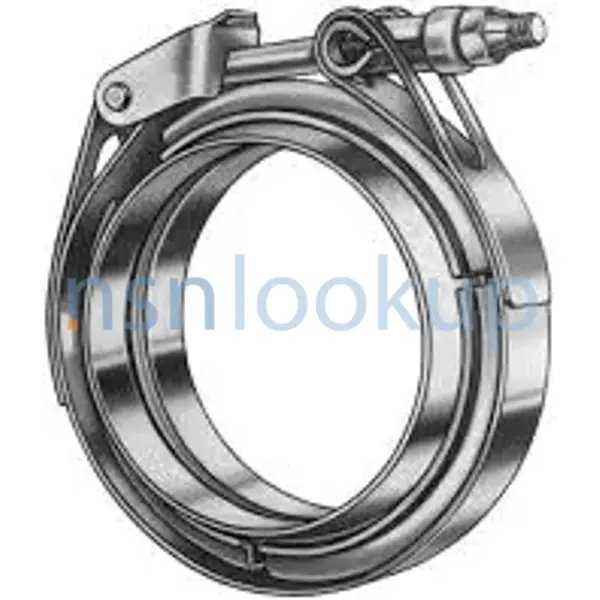

Grooved Clamp Coupling

5342006932433 006932433 N5307S-300 813206E-384Z 10875095 24503-300 5340006932433 5342PL1362423

A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
July 2025

NATO Update Count
51

NATO Data Quality

5342-00-693-2433 COUPLING,CLAMP,GROOVED 5342006932433 006932433 1/3 — 5342-00-693-2433 Photo 1/3

AAGR Style 1 for 5342-00-693-2433 2/3 — NSN 5342-00-693-2433 (Identification) 2/3

AGPR Style 30 for 5342-00-693-2433 3/3 — NSN 5342-00-693-2433 (Identification) 3/3

Marketplace 5342-00-693-2433

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

24503-300 COUPLING,CLAMP,GROOVED 1 EA NS

N5307S300 COUPLING,CLAMP,GROOVED 1 EA NS

Subscribe to View Vendor Details...

24503-300 COUPLING,CLAMP,GROOVED 1 EA NS

Subscribe to View Vendor Details...

5340-00-693-2433 COUPLING,CLAMP,GROOVED 8 EA NS

Subscribe to View Vendor Details...

24503-300 COUPLING,CLAMP,GROOVED 2 EA NS

Subscribe to View Vendor Details...

N5307-S300 COUPLING,CLAMP,GROOVED 2 EA NS

Subscribe to View Vendor Details...

1920710875095REVF COUPLING,CLAMP,GROOVED 6 EA NS

Subscribe to View Vendor Details...

5342-00-693-2433 COUPLING,CLAMP,GROOVED RQST NS

Updated Every Day

5342-00-693-2433 RQST NE

Updated Every Day

5342-00-693-2433 RQST

Updated Every Day

5342-00-693-2433 RQST NE

Restrictions 5342-00-693-2433

5342-00-693-2433 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 5342-00-693-2433

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5342-00-693-2433

US Army (A919)
Effective Date:: 1 May 2006
Former MOE Rule:: A180
Supplementary Receivers:: AZ; AMC 1 AMSC B IMC Z IMCACTY CD

US Air Force (FXGG)
Effective Date:: 1 May 2006
Former MOE Rule:: FXCX; AMC 1 AMSC B IMC Z IMCACTY SX

NASA (G860)
Effective Date:: 1 Jun 1994; AMC 0 AMSC 0 AAC C

US Marine Corps (MC41)
Effective Date:: 1 May 2006
Former MOE Rule:: MC04; AMC 1 AMSC B IMC Z IMCACTY PA

US Navy (N9BG)
Effective Date:: 1 May 2006
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC B IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Lithuania (WI01)
Effective Date:: 1 Mar 2001

Poland (WP01)
Effective Date:: 1 Jun 2007

Brazil (YA01)
Effective Date:: 1 Dec 2001

Spain (YB01)
Effective Date:: 1 Feb 1994

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Kuwait (YK01)
Effective Date:: 1 Feb 2015

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

New Zealand (ZE01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Aug 1995

Turkey (ZW01)
Effective Date:: 1 Aug 2000

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 1991

Approved Sources 5342-00-693-2433

Part Number
Manufacturer
Status
10875095: 19207 - U S Army Tank Automotive Command (Active); Source Control; RNCC 1 RNVC 2 DAC 1
N5307S-300: 94581 - V I J Corp (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
813206E-384Z: 14242 - Voss Industries, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
24503-300: 00624 - Eaton Aeroquip Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5340006932433: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
24503-300: R1120 - Satair A/S (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
24503-300: 8W928 - Eaton Aeroquip Llc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5342PL1362423: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
10875095: T0720 - Fnss Savunma Sistemleri Anonim (Active); NATO Reproduction; RNCC 8 RNVC 2 DAC 6

Datasheet 5342-00-693-2433

Characteristic
Specifications
FIIG: A25400
Band Thickness [ALED]: 0.025 Inches Nominal
Band Width [ALEE]: 0.875 Inches Nominal
Cross-Sectional Shape Style [AAGR]: Grooved Retainer
Height [HGTH]: 0.281 Inches Nominal
Nut Type [ALDS]: Self-Locking Hexagon
Included Angle In Deg [AKZZ]: 40.0
Inside Diameter [AARX]: 3.845 Inches Nominal
Latch Style [AGPR]: Single
Material And Location [ANNQ]: Steel Mil-S-6721 Segment
Material And Location [ANNQ]: Steel, Corrosion Resisting Bolt
Material And Location [ANNQ]: Steel, Corrosion Resisting Nut
Material And Location [ANNQ]: Steel, Mil-S-5059, Type 301, 1/2 Hard Band
Retainer Thickness [ADTJ]: 0.050 Inches Nominal
Retainer Width [ALEB]: 0.875 Inches Nominal
Root Width [ALEC]: 0.207 Inches Nominal
Sealing Inner Liner [ALDW]: Not Included
Segment Quantity [ALDT]: 3
Shape [SHPE]: Round
