Premium Information is available for this item - Upgrade for $1 a day
5342-00-682-2174
Corrosion Preventive Anode
5342006822174 006822174 MIL-A-18001 MIL-A-18001KCLASS1TYPEZDM1.050 13213E5171-177 5171-177 1-2DM
An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium. View more Corrosion Preventive Anode
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
26
26
NATO Data Quality
Marketplace 5342-00-682-2174
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5342-00-682-2174 5+ Documents (More...)
MIL-A-18001 MIL-A-18001KCLASS1TYPEZDM1.050 13213E5171-177 5171-177 1-2DM An item which sacrificially
1-2DM ANODE,CORROSION PREVENTIVE 62 EA NS Request Quotation Subscribe to View Vendor Details... 5171
PREVENTIVE 49 EA NS Request Quotation Updated Every Day 5342-00-682-2174 RQST NE Updated Every Day 5342
1-2DM ANODE,CORROSION PREVENTIVE 62 EA NS Request Quotation Subscribe to View Vendor Details... 5171
PREVENTIVE 49 EA NS Request Quotation Updated Every Day 5342-00-682-2174 RQST NE Updated Every Day 5342
ADPEC : 5340-21-859-2863 is a Corrosion Preventive https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-00-682-2174
Corrosion Preventive Anode 5342006822174 5342-00-682-2174 RQST NE Updated Every Day 5342 https/
Corrosion Preventive Anode 5342006822174 5342-00-682-2174 RQST NE Updated Every Day 5342 https/
Upgrade your Account Upgrade 5342-01-356-6386Corrosion Preventive Anode5342013566386 013566386 MIL-A-18001
Upgrade your Account Upgrade 5340-01-201-2439Corrosion Preventive Anode5340012012439 012012439 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6381Corrosion Preventive Anode5342013566381 013566381 MIL-A-18001
Upgrade your Account Upgrade 5340-01-201-2439Corrosion Preventive Anode5340012012439 012012439 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6381Corrosion Preventive Anode5342013566381 013566381 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-8260Corrosion Preventive Anode5342013568260 013568260 MIL-A-18001
Upgrade your Account Upgrade 5342-01-361-2565Corrosion Preventive Anode5342013612565 013612565 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6252Corrosion Preventive Anode5342013566252 013566252 MIL-A-18001
Upgrade your Account Upgrade 5342-01-361-2565Corrosion Preventive Anode5342013612565 013612565 MIL-A-18001
Upgrade your Account Upgrade 5342-01-356-6252Corrosion Preventive Anode5342013566252 013566252 MIL-A-18001
Account Upgrade 5342-01-426-3090Corrosion Preventive Anode5342014263090 014263090 MIL-A-18001KCLS MIL-A-18001
Upgrade your Account Upgrade 5342-01-417-2566Corrosion Preventive Anode5342014172566 014172566 MIL-A-18001
Upgrade your Account Upgrade 5342-00-813-6053Corrosion Preventive Anode5342008136053 008136053 MIL-A-18001
Upgrade your Account Upgrade 5342-01-417-2566Corrosion Preventive Anode5342014172566 014172566 MIL-A-18001
Upgrade your Account Upgrade 5342-00-813-6053Corrosion Preventive Anode5342008136053 008136053 MIL-A-18001
Restrictions 5342-00-682-2174
5342-00-682-2174 is a Corrosion Preventive Anode that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item has been determined to be hazardous and information is contained in the Hazardous Materials Information Resource System (HMIRS). This item does not contain a precious metal.
Import and Export 5342-00-682-2174
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5342-00-682-2174
- US Army (A919)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- A180
- US Coast Guard (C911)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- C006
- US Navy (N9BG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTHXHD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5342-00-682-2174
- Part Number
- Manufacturer
- Status
- MIL-A-18001KCLASS1TYPEZDM1.050
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-A-18001
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 13213E5171-177
- 97403 - Cecom Lr Center (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5171-177
- 97403 - Cecom Lr Center (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1-2DM
- 08315 - Highway Products Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5342-00-682-2174
- Characteristic
- Specifications
- FIIG
- Specifications
- A25200
- Construction [ARQS]
- Solid
- Core Length [AKMJ]
- 1.152 Inches Minimum And 1.162 Inches Maximum
- Core Surface Treatment [AKMF]
- Cadmium, Qq-P-416, Type 2, Class 3 And Zinc And Tin Plated
- Mounting Method [ADJH]
- Threaded End
- Nominal Thread Length [AKMG]
- 0.340 Inches And 0.458 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Class And Zdm Type
- Outside Diameter [ABKV]
- 1.045 Inches Minimum And 1.055 Inches Maximum
- Insert Quantity [ADZM]
- 1
- Material And Location [ANNQ]
- Zinc, Mil-A-18001, Class 1, Type Zdm Anode And Steel Core

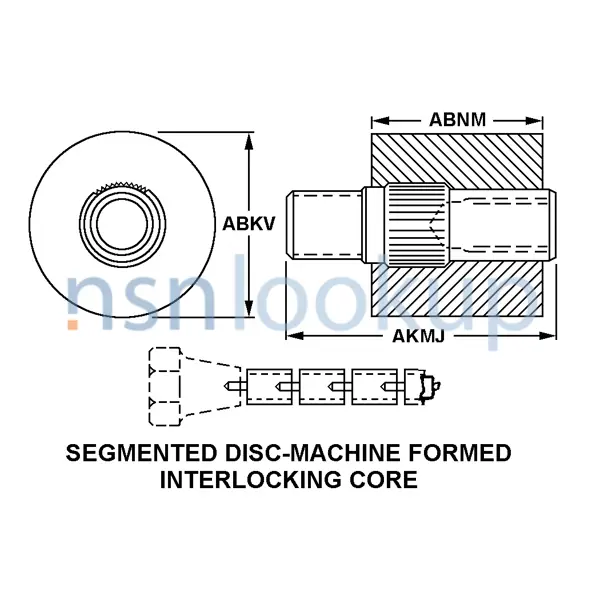

- Style Designator [STYL]
- Segmented Disc-Machine Formed Interlocking Core
- Thickness [ABNM]
- 0.734 Inches Minimum And 0.766 Inches Maximum
- Thread Direction [AAJF]
- Right-Hand
- Thread Class [AAJD]
- 2A And 2B
- Thread Size And Series/Type Designator [THDS]
- 0.216-28 Unf And 0.216-28 Unf
Weapon Systems (WSDC) 5342-00-682-2174
DLA Procurement Analysis 5342-00-682-2174
- Last Stock Position:
- 2540 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5342-00-682-2174
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
NATO Stock Numbers Related to 5342-00-682-2174
5340-33-210-5020 5342-19-002-8447 5340-15-206-5772 5342-19-002-8411 5340-14-395-3103 5342-14-263-2162 5342-99-850-0841 5340-37-515-5929 5340-33-209-6014 5342-22-610-6463 5340-14-310-3295 5340-14-380-9179 5342-17-111-2897 5342-21-920-4270 5342-12-369-4455 5342-12-349-5575 5342-33-206-8338 5342-12-384-0864
Freight Information 5342-00-682-2174
5342-00-682-2174 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 5342-00-682-2174 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5342-00-682-2174 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5342-00-682-2174 is not classified as a special type of cargo when transported by water. 5342-00-682-2174 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5342-00-682-2174
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 1.1" H x 1.1" W x 0.8" L
- --
- --
- Physical Protection
- Any Suitable Process
- 1.1" H x 1.1" W x 0.8" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 5342-00-682-2174 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A623FC50N
- 17 Sep 2023
- Subscribe
- 80
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FBDCZ
- 20 Aug 2023
- Subscribe
- 257
- Subscribe
- Subscribe
- Subscribe
- SPE4A623FB7FD
- 14 Jul 2023
- Subscribe
- 524
- Subscribe
- Subscribe
- Subscribe
- SPE4A722V3095
- 05 Aug 2022
- Subscribe
- 372
- Subscribe
- Subscribe
- Subscribe
- SPE4A622F0213
- 05 Oct 2021
- Subscribe
- 1153
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F422C
- 18 Aug 2021
- Subscribe
- 763
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F230P
- 08 Jul 2021
- Subscribe
- 1224
- Subscribe
- Subscribe
- Subscribe
- SPE4A621F5755
- 15 Jan 2021
- Subscribe
- 1240
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5342-00-682-2174 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
