5342-00-316-9240

Grooved Clamp Coupling

5342003169240 003169240 ST7M276-150 2320-150 C7883-150 52242AE150 VR1026-150 C7883-150S D2320-150 5342PL0835435

A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER. View more Grooved Clamp Coupling

Managed by United States

NSN Created on 11 Nov 1973

Data Last Changed
November 2023

NATO Update Count
35

NATO Data Quality

AAGR Style 6 for 5342-00-316-9240 1/2 — NSN 5342-00-316-9240 (Identification) 1/2

AGPR Style 64 for 5342-00-316-9240 2/2 — NSN 5342-00-316-9240 (Identification) 2/2

Marketplace 5342-00-316-9240

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

2308 COUPLING,CLAMP,GROOVED 2 EA NS

Subscribe to View Vendor Details...

2320-150 COUPLING,CLAMP,GROOVED 4 EA NS

Updated Every Day

5342-00-316-9240 RQST NE

Updated Every Day

5342-00-316-9240 RQST

Updated Every Day

5342-00-316-9240 RQST NE

Restrictions 5342-00-316-9240

5342-00-316-9240 is a Grooved Clamp Coupling that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item contains Silver.

Import and Export 5342-00-316-9240

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 5342-00-316-9240

US Air Force (FXGG)
Effective Date:: 1 May 2005
Former MOE Rule:: FXCX; AMC 1 AMSC B IMC Z IMCACTY SX

US Navy (N9BG)
Effective Date:: 1 May 2005
Former MOE Rule:: N9GD
Supplementary Collaborators:: GTKE; AMC 1 AMSC B IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Aug 2006

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Belgium (ZB01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Jan 2004

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Netherlands (ZN01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Jan 1997

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Mar 2008

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 5342-00-316-9240

Part Number
Manufacturer
Status
ST7M276-150: 76301 - The Boeing Company (Active); Source Control; RNCC 1 RNVC 2 DAC 1
2320-150: 15284 - Eaton Corporation (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
C7883-150: 14242 - Voss Industries, Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
52242AE150: 94581 - V I J Corp (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
VR1026-150: 14242 - Voss Industries, Llc (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 5
VR1026-150: 81755 - Lockheed Martin Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 4
C7883-150S: 14242 - Voss Industries, Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
D2320-150: 15284 - Eaton Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
5342PL0835435: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 5342-00-316-9240

Characteristic
Specifications
FIIG: A25400
Drilled Lockwire Hole [ASXG]: Not Included

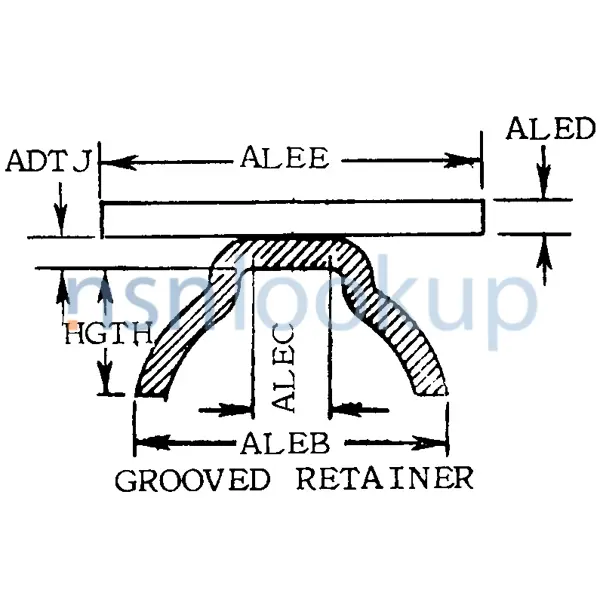

Cross-Sectional Shape Style [AAGR]: Grooved Retainer
Height [HGTH]: 0.275 Inches Nominal
Nut Type [ALDS]: Plain Round
Included Angle In Deg [AKZZ]: 38.0
Inside Diameter [AARX]: 1.500 Inches Nominal
Latch Style [AGPR]: Double
Material And Location [ANNQ]: Steel Ams 5662 Retainer
Material And Location [ANNQ]: Steel Ams 5596 Safety Latch
Material And Location [ANNQ]: Iron Alloy, Ams 5732, Comp 660 Bolt
Material And Location [ANNQ]: Iron Alloy, Ams 5732, Comp 660 Nut
Material And Location [ANNQ]: Iron Alloy, Ams 5732, Comp 660 Trunnion
Retainer Thickness [ADTJ]: 0.105 Inches Nominal
Retainer Width [ALEB]: 0.535 Inches Nominal
Root Width [ALEC]: 0.329 Inches Minimum And 0.337 Inches Maximum
Sealing Inner Liner [ALDW]: Included
Segment Quantity [ALDT]: 2
Shape [SHPE]: Round
Surface Treatment And Location [ANNR]: Passivate Qq-P-35 Safety Latch
Surface Treatment And Location [ANNR]: Passivated, Qq-P-35 Bolt
Surface Treatment And Location [ANNR]: Passivated, Qq-P-35 Band
Surface Treatment And Location [ANNR]: Passivated, Qq-P-35 Trunnion
Surface Treatment And Location [ANNR]: Silver Plated Nut
