5340-01-661-3631
Retaining Strap
5340016613631 016613631 NASM85449/3 M85449/3-48
A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING. View more Retaining Strap
November 2023
4
Marketplace 5340-01-661-3631
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-661-3631 4+ Documents (More...)
BUY NE FedMall Updated Every Day 5340-01-661-3631 RQST NE Updated Every Day 5340-01-661-3631 RQST
Updated Every Day 5340-01-661-3631 RQST NE Related Documents 5340-01-661-3631 5+ Documents ( More...
Retaining Strap 5340016613631 016613631 for $1 a day Upgrade your Account Upgrade 5340-01-661-3631Retaining
Strap5340016613631 016613631 NASM85449/3 Sadd Clamp Assembly 5340015302477015302477 $1 a day Upgrade
5340-01-346-2009 Retaining Strap 5340013462009 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-661-3631
Retaining Strap 5340016613631 016613631 Canceled/Obsolete RNCC 5 RNVC 9 DAC E MIL-C-85449 https
Retaining Strap 5340016613631 016613631 for $1 a day Upgrade your Account Upgrade 5340-01-661-3631Retaining
Strap5340016613631 016613631 NASM85449 for $1 a day Upgrade your Account Upgrade 5340-01-246-1232Retaining
Restrictions 5340-01-661-3631
5340-01-661-3631 is a Retaining Strap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-661-3631
- US Navy (N9BZ)
- Effective Date:
- 1 Feb 2017
- Supplementary Collaborators:
- KE
Approved Sources 5340-01-661-3631
- Part Number
- Manufacturer
- Status
- NASM85449/3
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- M85449/3-48
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy

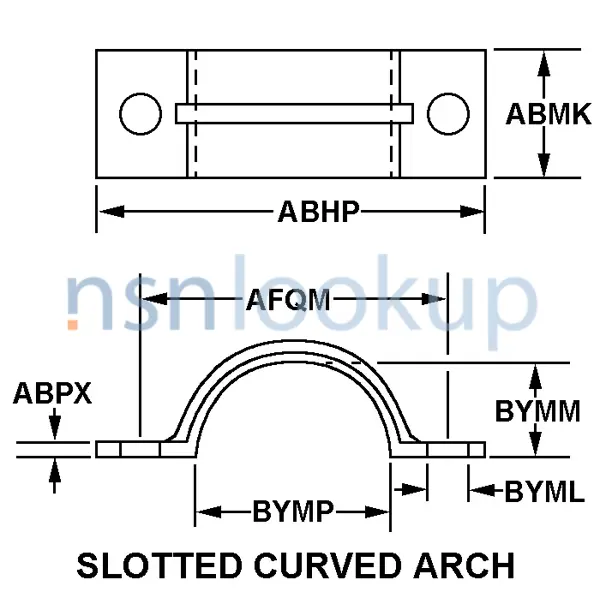

Datasheet 5340-01-661-3631
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-A
- Distance From Loop Center To Tongue End [AZDC]
- 2.258 Inches Nominal
- Center To Center Distance Between Loop And Mounting Hole [AZCY]
- 4.001 Inches Minimum And 4.031 Inches Maximum
- End Item Identification [AGAV]
- Model Code For The V-22 Aircraft
- Material Thickness [ABPX]
- 0.063 Inches Nominal
- Material [MATT]
- Rubber Synthetic Cushion
- Material [MATT]
- Steel Comp 321 Buckle/Clip
- Loop Inside Diameter [BZTN]
- 3.0 Inches Nominal
- Loop Width [AZDA]
- 0.75 Inches Nominal
- Overall Length [ABHP]
- 4.516 Inches Nominal
- Overall Width [ABMK]
- 0.81 Inches Minimum And 0.83 Inches Maximum
- Specification/Standard Data [ZZZK]
- 80205-Nas85449/3 National Std/Spec
- Style Designator [STYL]
- Saddle Mount
Weapon Systems (WSDC) 5340-01-661-3631
DLA Procurement Analysis 5340-01-661-3631
- Last Stock Position:
- 5 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-661-3631
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Nov 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Nov 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- RB
- B-21 RAIDER
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-01-661-3631
Freight Information 5340-01-661-3631
5340-01-661-3631 has freight characteristics.. 5340-01-661-3631 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Procurement History 5340-01-661-3631 2 Records
Contracting Technical Data File (CTDF) 5340-01-661-3631 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
