5340-01-658-7506
Door Handle
5340016587506 016587506 8000-R/L
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
January 2023
1
Marketplace 5340-01-658-7506
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-658-7506 1+ Documents (More...)
Door Handle 5340016587506 016587506,8000-R/L 8000-R/L A device designed to actuate the mechanism of
Day 5340-01-658-7506 RQST NE Restrictions Restrictions 5340-01-658-7506 DEMIL: A | DEMILI : 1 | CRITICALITY
Restrictions 5340-01-658-7506
5340-01-658-7506 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-658-7506
- Canada (ZC01)
- Effective Date:
- 1 Oct 2016
Approved Sources 5340-01-658-7506
- Part Number
- Manufacturer
- Status
- 8000-R/L
- Manufacturer
- 19220 - Eastern Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-658-7506
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Features Provided [CBBL]
- Handle Lock
- Material [MATT]
- Steel Locking Mechanism
- Mounting Method [AXGY]
- Mounting Plate

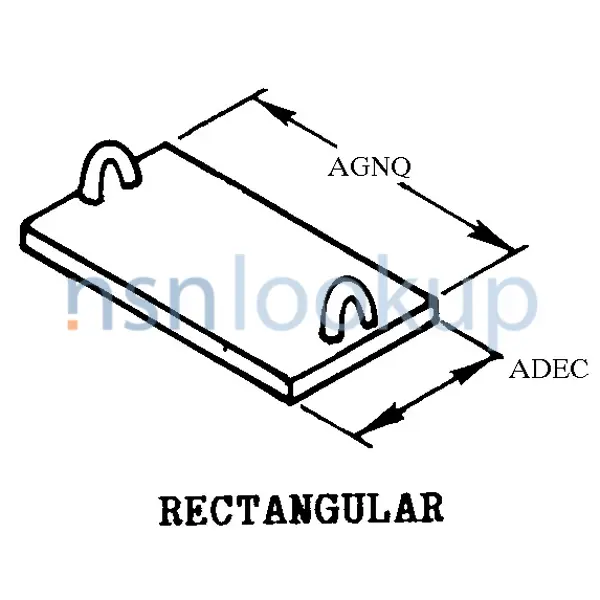

- Mounting Plate Style [ALMQ]
- Rectangular
- Part Name Assigned By Controlling Agency [CXCY]
- Single Point T-Lock
- Plate Length [AGNQ]
- 4.75 Inches Nominal
- Plate Width [ADEC]
- 3.75 Inches Nominal
- Special Features [FEAT]
- Single Point Lock With Adjustable Latch For Varied Door Thickness;Concealed Stainless Steel Spring Holds Handle In Folded Position;Suitable For Use On Fiberglass Steel Or Wood Doors;Installed By Screws Rivets Or Welding
- Surface Treatment [SFTT]
- Zinc Locking Mechanism
Similar Supply Items to 5340-01-658-7506
Freight Information 5340-01-658-7506
5340-01-658-7506 has freight characteristics managed by the Department of the Air Force.. 5340-01-658-7506 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
