5340-01-645-4525
Snap Hook
5340016454525 016454525 1269-1 1269
A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices. View more Snap Hook
November 2023
1
Marketplace 5340-01-645-4525
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-645-4525 5+ Documents (More...)
) https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-645-4525 Snap Hook 5340016454525 016454525,1269
9905-14-550-1269 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-99/fsc-9905/fr 9905-14-550-1269
Marketplace Restrictions Approved Sources https//www.nsnlookup.com 5340-01-645-4525 Snap Hook 5340016454525
/fsc-5340/us 5340-01-645-4525 Snap Hook 5340016454525 016454525,1269-1 Documents ( More... ) https//www.nsnlookup.com
/fsg-99/fsc-9905/fr
Day 9905 https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-645-4525 Snap Hook 5340016454525 016454525,1269
metal fastening device one or both ends of which are hook shaped with a closing or locking 9905-14-550-1269
Every Day 9905-14-246-1269 RQST NE Related Documents 9905-14-246-1269 2+ Documents ( More... ) https/
9905-14-246-1269 2+ Documents ( More... ) https/ https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01
/www.nsnlookup.com /fsg-76/fsc-7610/us 7610-00-023-1269 76100002312690002312697610-00-023-1269 Marketplace
Snap Hook 5340016454525 016454525,1269-1 vendors Request Related Documents 7640-22-116-1269 https
Restrictions 5340-01-645-4525
5340-01-645-4525 is a Snap Hook that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 5340-01-645-4525
- US Air Force (FGGI)
- Effective Date:
- 1 Sep 2015
- US Navy (N9BZ)
- Effective Date:
- 1 Jun 2015
- Supplementary Collaborators:
- KE
Approved Sources 5340-01-645-4525
- Part Number
- Manufacturer
- Status
- 1269-1
- Manufacturer
- 7M835 - Bourdon Forge Co Inc (Active)
- Source Control
- Source Control
- 1269
- 7M835 - Bourdon Forge Co Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5340-01-645-4525
- Characteristic
- Specifications
- FIIG
- Specifications
- T319-H

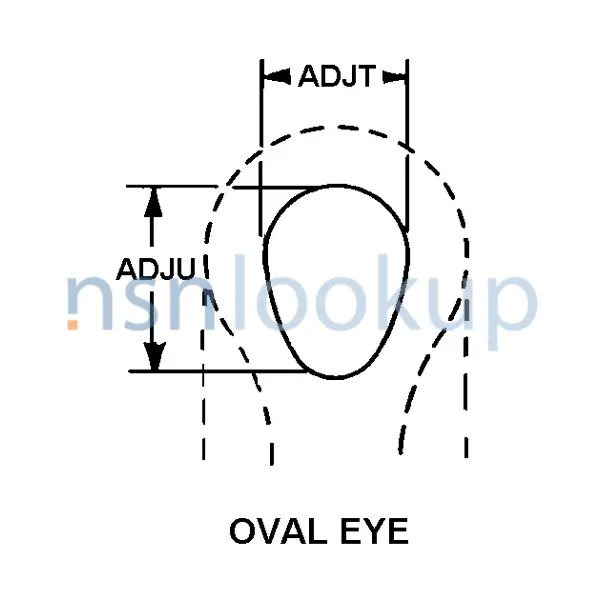

- End Connection Style [AJFX]
- Oval Eye
- Blade Material [AJLC]
- Steel, Ams 6382
- Design Type [APGF]
- Fixed
- End Position [BNWZ]
- Connection End At Right Angle To Plane Of Hook End
- Hook Material [BQQG]
- Steel, Ams 6382
- Hook Style Designator [BYCB]
- Pivot
- Part Name Assigned By Controlling Agency [CXCY]
- Snaphook, No.1269
- Overall Length [ABHP]
- 4.700 Inches Nominal
- Special Features [FEAT]
- Ultimate Strength: 11000 Lbs
- Unattached Ring [BWQS]
- Included
Weapon Systems (WSDC) 5340-01-645-4525
DLA Procurement Analysis 5340-01-645-4525
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-645-4525
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- NV
- JOINT VERTICAL LIFT AIRCRAFT CV-22 (OSPREY)
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5340-01-645-4525
Freight Information 5340-01-645-4525
5340-01-645-4525 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095370. A Sub NMFC of X. It has a NMFC Description of HOOKS NOI I/S GALVANIZE/PLAIN ETC. 5340-01-645-4525 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49920 which rates the freight between FCL and LCL. 5340-01-645-4525 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-645-4525 is not classified as a special type of cargo when transported by water. 5340-01-645-4525 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5340-01-645-4525 1 Records
Contracting Technical Data File (CTDF) 5340-01-645-4525 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
