5340-01-641-4976
Spring Tension Clip
5340016414976 016414976 803-6397269 ITEM 143 167-8278275 ITEM 39 167-8278492 ITEM 39 167-8278268 ITEM 41 167-8278275 167-8278268 167-8278492 803-6397269
A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available. View more Spring Tension Clip
November 2023
1
Marketplace 5340-01-641-4976
Request a Quotation from participating marketplace vendors
Related Documents 5340-01-641-4976 5+ Documents (More...)
167-8278268 167-8278492 A preformed item of semirigid material designed to retain, position, fasten,
ITEM 143 167-8278275 ITEM 39167-8278492 ITEM 39167 ITEM 41 167-8278268 ITEM 37 A standoff that must
ITEM 41 167-8278268 ITEM 37 A standoff that must have a threaded end(s) or be internally threaded its
www.nsnlookup.com /fsg-53/fsc-5325/us 5325-01-641-4973 Lock Pin Fastener Stud 5325016414973 8278275 ITEM 39 167-8278492
ITEM 92 167-8278492 ITEM 15 An item designed to be mounted around a shaft to limit axial movement of
https//www.nsnlookup.com /fsg-30/fsc-3040/us 3040-01-640-9871 Shaft Collar 3040016409871016409871 803-6397269
https//www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-641-4976 Spring Tension Clip 5340016414976 016414976
ITEM 143 167-8278275 ITEM 39 167-8278492 ITEM 39 167-8278268 ITEM 41 167-8278275803-6397269167-8278268
ITEM 42 167-8278267 ITEM 144 167-8278275 ITEM 40 A preformed item of semirigid material designed to
www.nsnlookup.com /fsg-53/fsc-5340/us 5340-01-641-0940 Spring Tension Clip 5340016410940016410940 167-8278268
Restrictions 5340-01-641-4976
5340-01-641-4976 is a Spring Tension Clip that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 5340-01-641-4976
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5340-01-641-4976
- US Navy (N9BZ)
- Effective Date:
- 1 Jan 2015
- Supplementary Collaborators:
- HDJB
Approved Sources 5340-01-641-4976
- Part Number
- Manufacturer
- Status
- 803-6397269 ITEM 143
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 167-8278275 ITEM 39
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 167-8278492 ITEM 39
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 167-8278268 ITEM 41
- 53711 - Naval Sea Systems Command (Active)
- Secondary Buy
- Secondary Buy
- 167-8278275
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
- 167-8278268
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
- 167-8278492
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
- 803-6397269
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 5340-01-641-4976
- Characteristic
- Specifications
- FIIG
- Specifications
- A03100
- Distance From End To Hole Nearest Loop [AZWF]
- 0.750 Inches Nominal
- Hole Diameter [AAUB]
- 0.281 Inches Nominal
- Hole Quantity [ASXK]
- 2
- End Item Identification [AGAV]
- Doors, Watertight, Quick-Acting
- Material Document And Classification [MDCL]
- Astm B103/B103m, Aly C51000, Temper H08 Assn Std Single Material Response Overall
- Material Thickness [ABPX]
- 0.063 Inches Nominal
- Material [MATT]
- Copper Alloy Overall
- Mounting Facility Quantity [AKPV]
- 2
- Mounting Method [AXGY]
- Unthreaded Hole
- Part Name Assigned By Controlling Agency [CXCY]
- Spring Clip
- Length [ABRY]
- 2.4375 Inches Nominal
- Loop Height [CLQM]
- 0.250 Inches Nominal
- Width [ABGL]
- 0.750 Inches Nominal

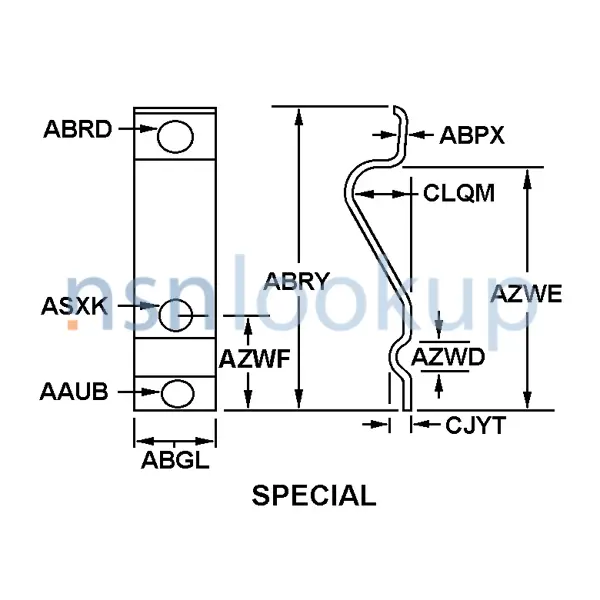

- Style Designator [STYL]
- Special
Weapon Systems (WSDC) 5340-01-641-4976
DLA Procurement Analysis 5340-01-641-4976
- Last Stock Position:
- 193 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5340-01-641-4976
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5340-01-641-4976
Freight Information 5340-01-641-4976
5340-01-641-4976 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of Z. It has a NMFC Description of HARDWARE, NOI. 5340-01-641-4976 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 5340-01-641-4976 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5340-01-641-4976 is not classified as a special type of cargo when transported by water. 5340-01-641-4976 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 5340-01-641-4976 1 Records
Contracting Technical Data File (CTDF) 5340-01-641-4976 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
